Kaaz

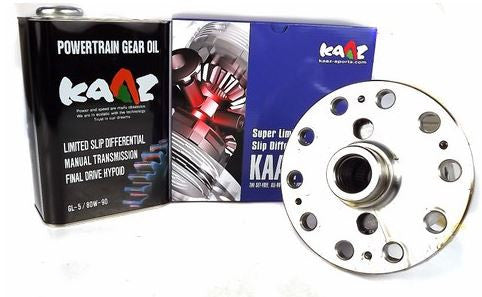

KAAZ LSD for BMW (E30 325i, M3, 525i, 535i, Z3 Roadster) (1.5 way)

PART NO

PART NAME

QTY

71274-140

DIFF CASE ASSY

1

11190-123

PRESSURE RING A

1

11191-123

PRESSURE RING B

1

11186-103

CLUTCH PLATE A

6

11187-103

CLUTCH PLATE B

6

68062-102

CONE SPRING

2

64028-120

PINION CROSS SHAFT

1

78003-121

PINION GEAR

4

78013-119

SIDE GEAR

2

51113-116

RING

2

68036-227

WASHER

2



Overhaul Kits

71261-102

OVERHAUL SET

71262-102

CLUTCH PLATE A SET

71262-107

CLUTCH PLATE A SET(+0.1mm)

71263-102

CLUTCH PLATE B SET

71264-138

PRESSURE RING SET (2WAY)

71264-139

PRESSURE RING SET (1.5WAY)

Specifications:

  • Clutch Plate A:6
  • Clutch Plate B:6
  • Cone Springs :2
  • Configuration:5-way
  • Factory Torque:5-8.0 (kg-m)
  • Ramp / Cam Angle:45x20
