Kaaz

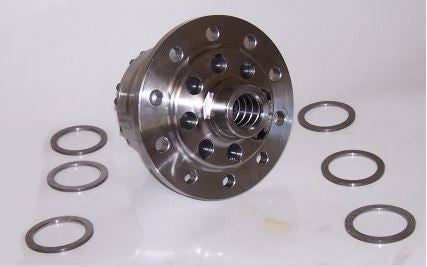

KAAZ LSD For BMW (E46 328) (1.5 Way)

LSD Type: 1.5-way (This LSD can be converted to a 2-way unit with the correct parts or supplied pre-built as a 2-way unit, Order only, contact for more info)

PART NO

PART NAME

QTY

71274-194

DIFF CASE ASSY

1

11190-131

PRESSURE RING A

1

11191-131

PRESSURE RING B

1

11186-103

CLUTCH PLATE A

6

11187-103

CLUTCH PLATE B

6

68062-102

CONE SPRING

2

64028-120

PINION CROSS SHAFT

1

78003-121

PINION GEAR

4

78013-146

SIDE GEAR

2

68036-227

WASHER

2

31057-214

BOLT

16

Overhaul Kits

71261-102

OVERHAUL SET

71262-102

CLUTCH PLATE A SET

71262-107

CLUTCH PLATE A SET(+0.1mm)

71263-102

CLUTCH PLATE B SET

Specifications:

  • Clutch Plate A:6
  • Clutch Plate B:6
  • Cone Springs :2
  • Configuration:5-way
  • Factory Torque:0-9.0 (kg-m)
  • Ramp / Cam Angle:45x20
