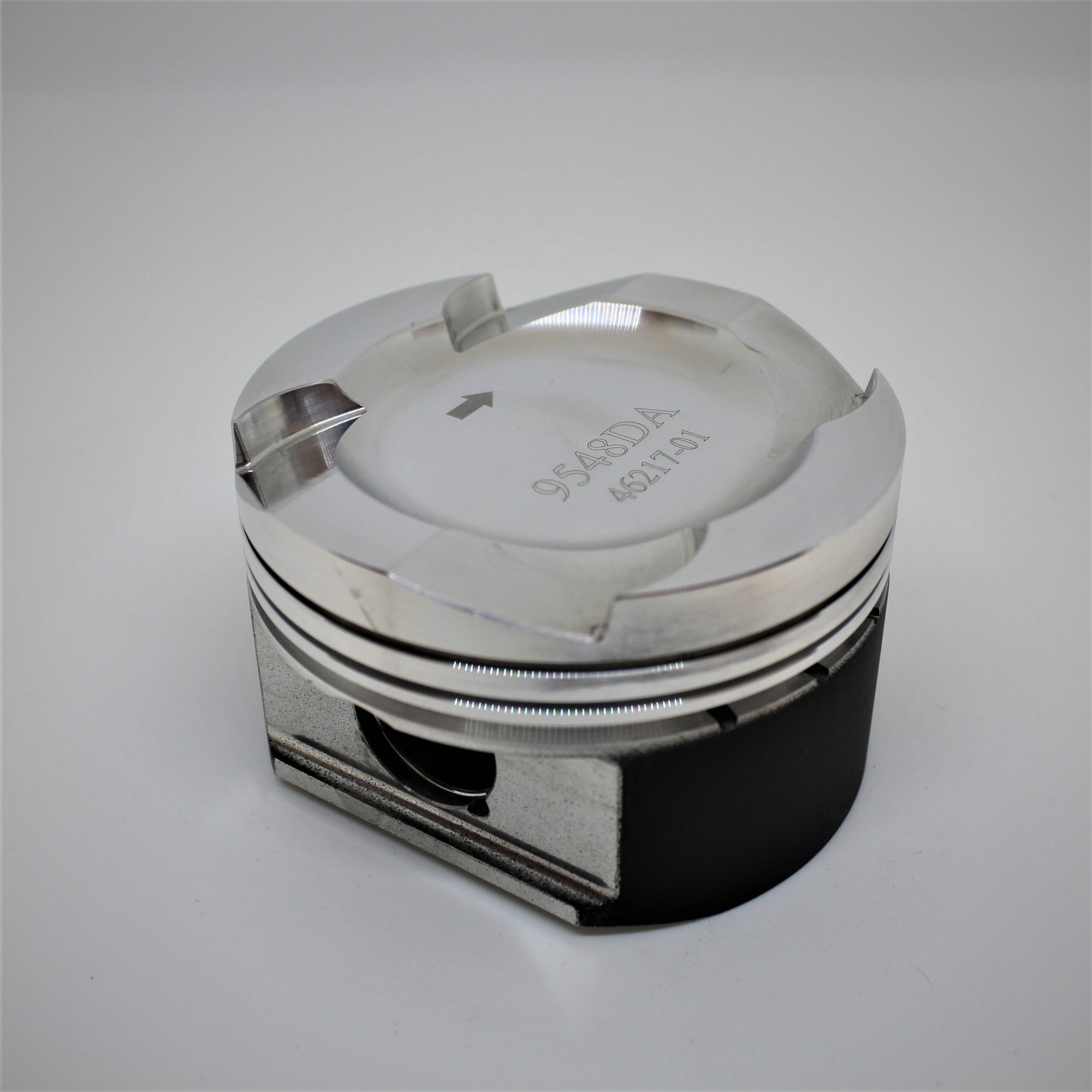

Wossner 1 Series Coupe N54 3.0 24v Twin Turbo Forged Piston Kit (K9548)

Wossner Pistons

Wossner 1 Series Coupe N54 3.0 24v Twin Turbo Forged Piston Kit (K9548)

£1,274.15

1 Series Coupe N54 3.0 24v Twin Turbo Forged Piston Kit.

Manufacturer kit reference: K9548

Technical specifications

Engine Code N54B30
YOM From 2006
YOM To 2016
Bore Size 84.5mm – K9548D050 , 84mm – K9548DA
Stroke 89.6mm
Compression Height 31.7mm
OEM Comp Ratio 10.2:1
Number of Rings 3
Clip Part Number CW22
Pin Size 22mm
Pin Part Number WP136-SP
Cylinders 6
Valves Per Cylinder 4

Piston specifications by size

Piston reference Piston diameter Compression ratio Capacity
K9548DA 83.92mm 10.2:1 2979cc
K9548D050 83.92mm 10.2:1 3014cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
