£849.43

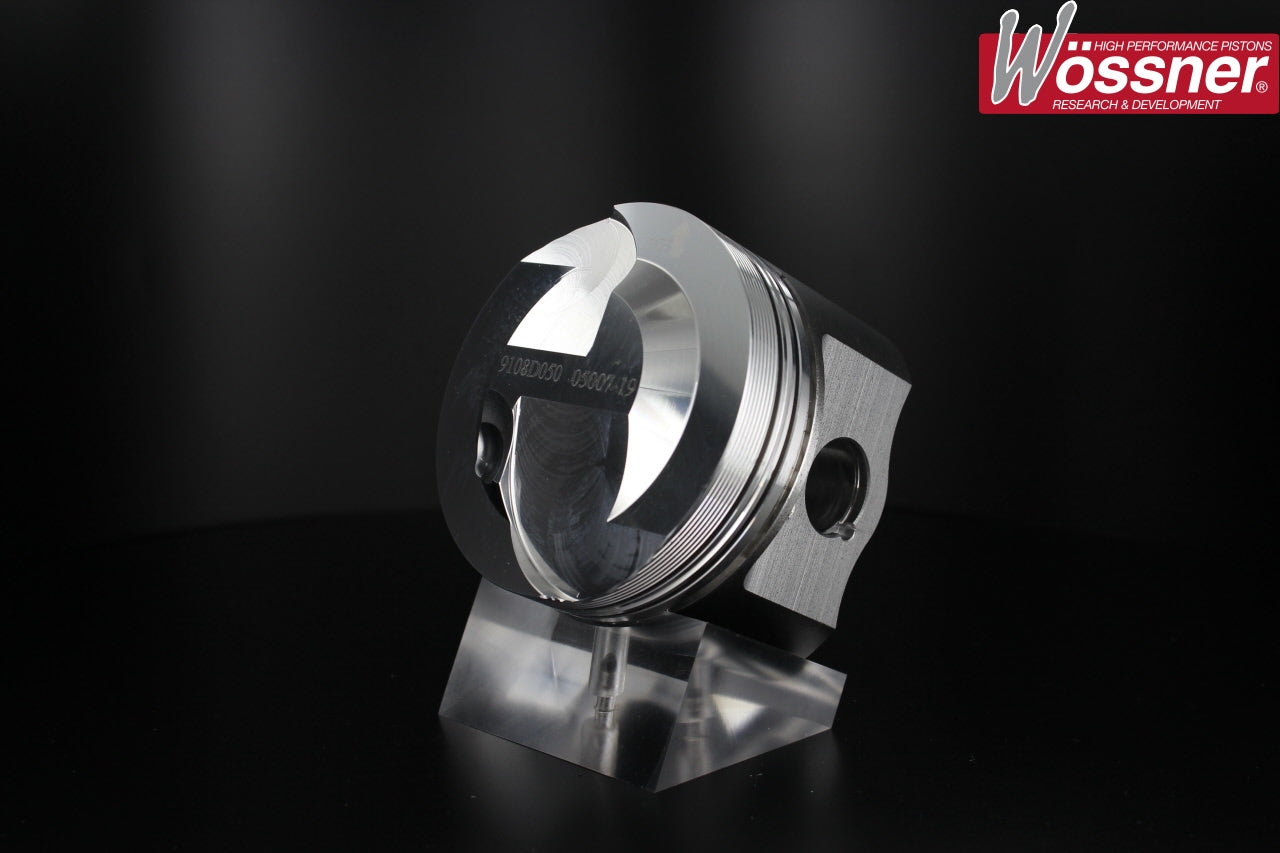

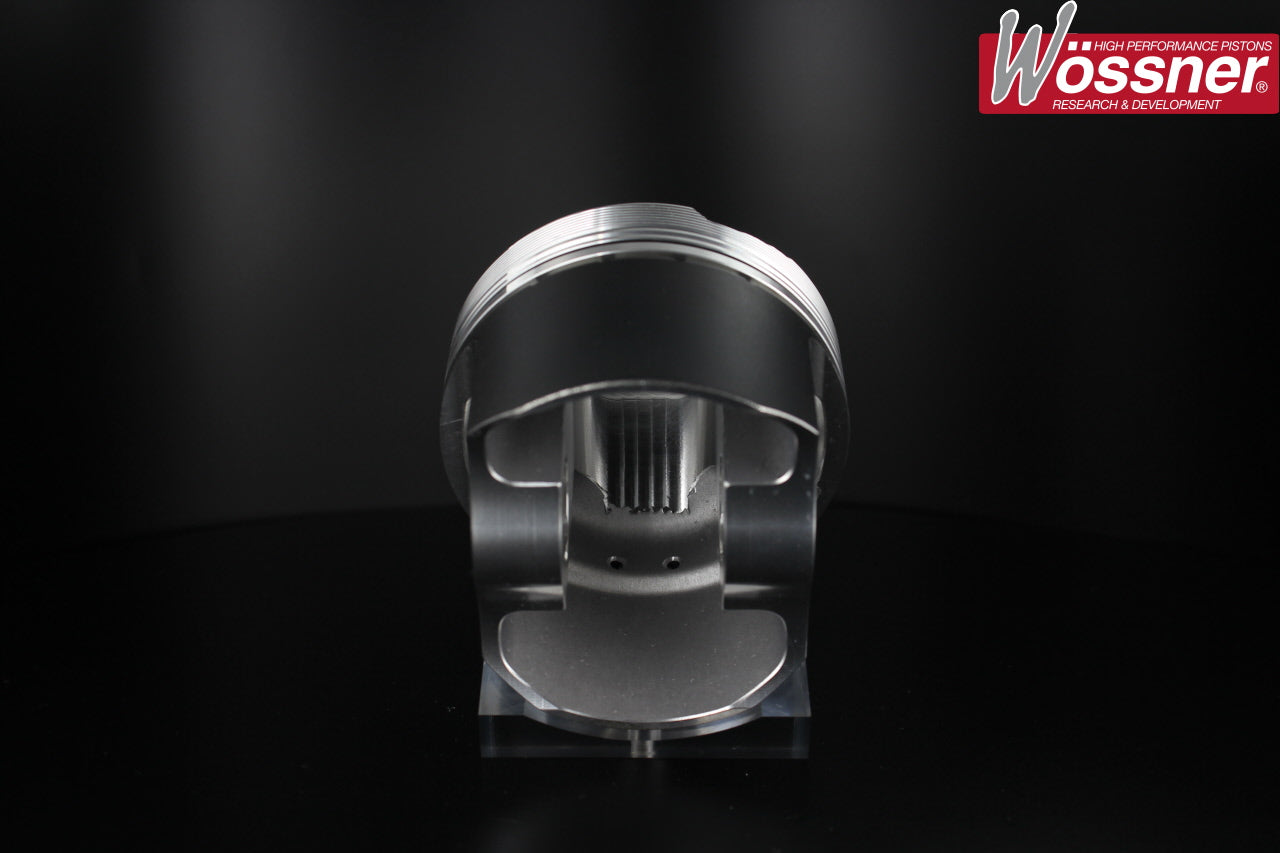

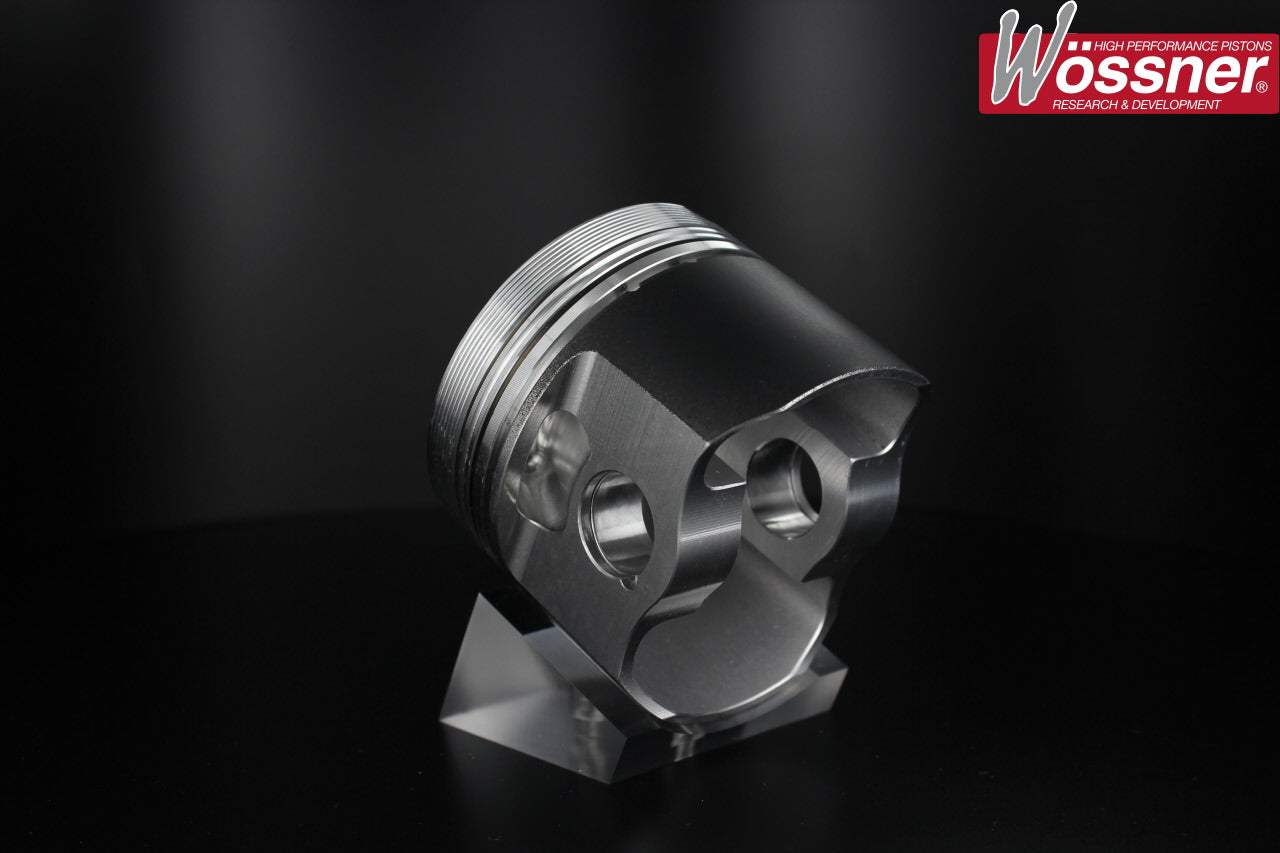

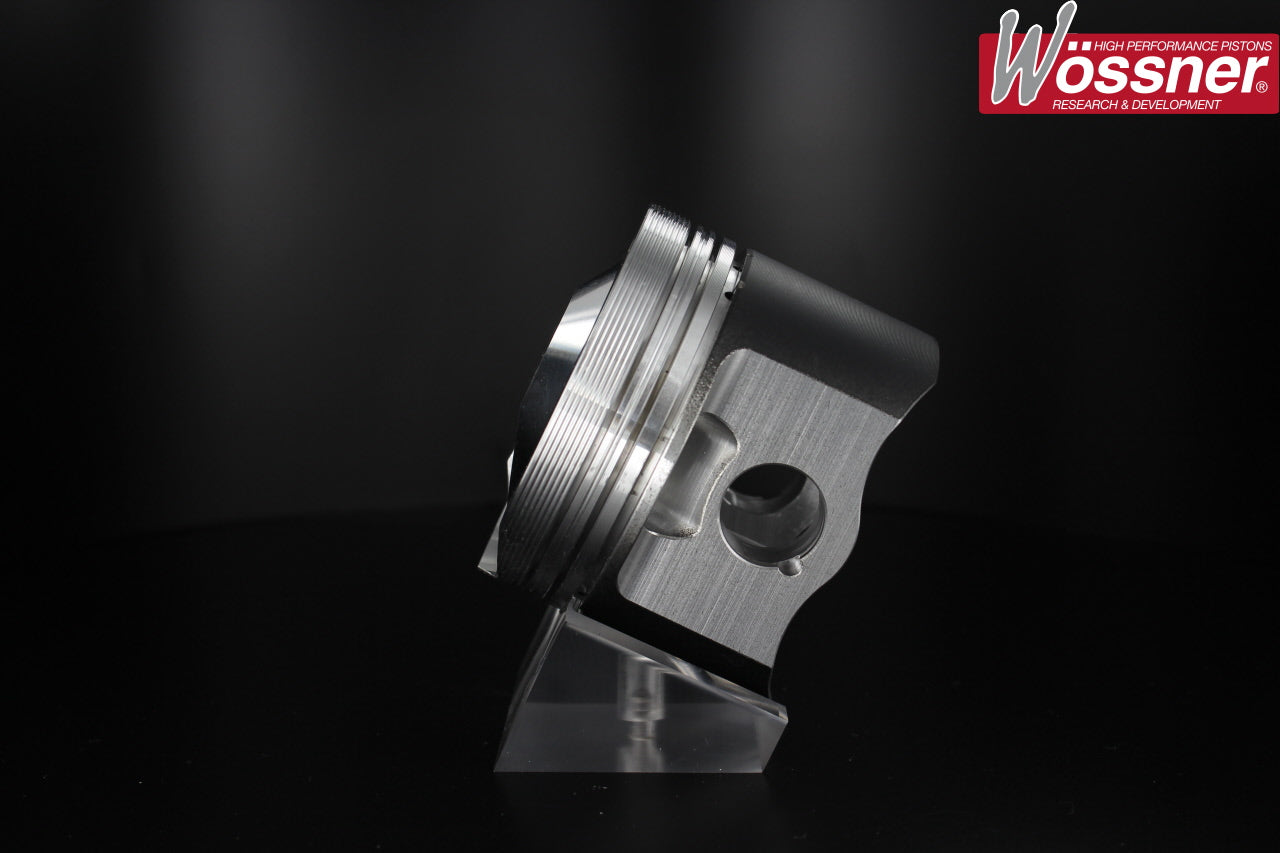

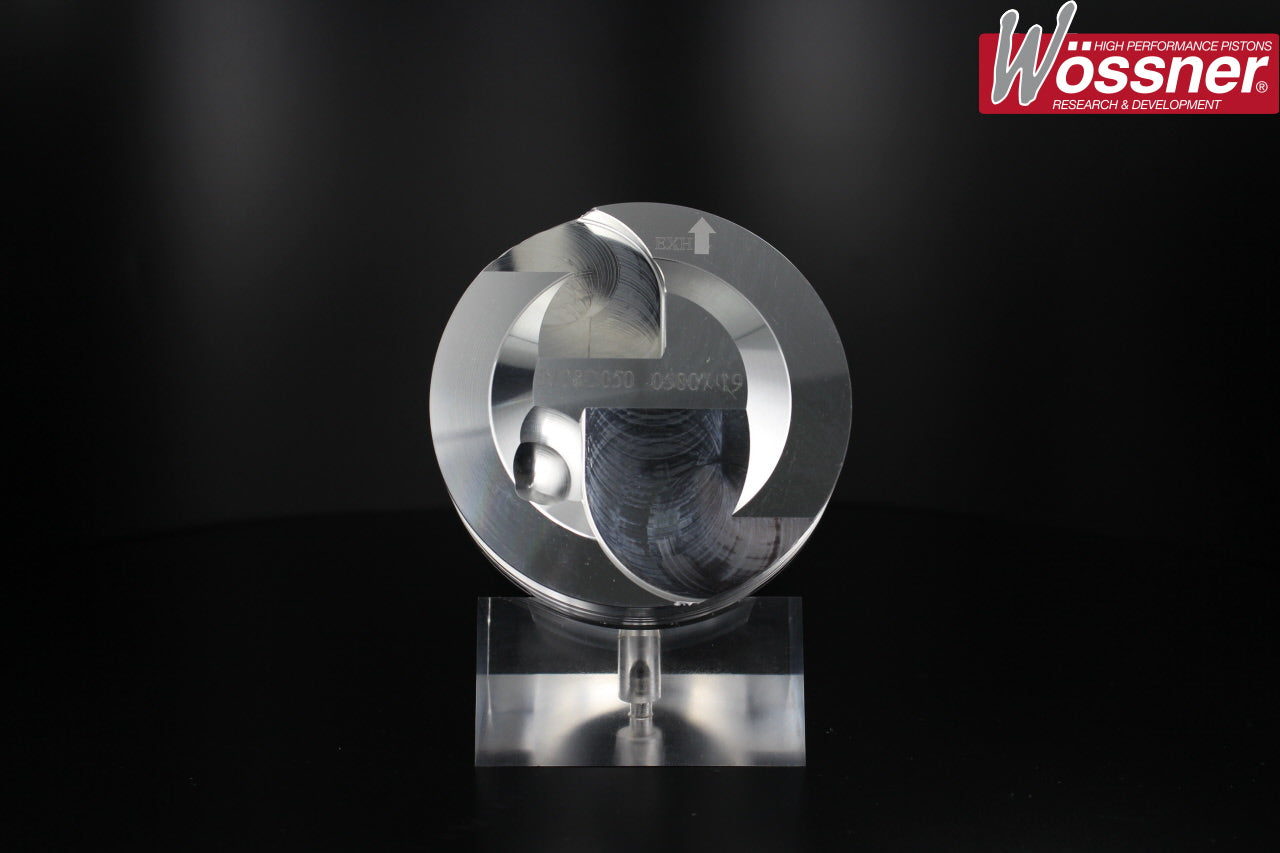

106 1.4 8v XSI High Comp Forged Piston Kit.
Manufacturer kit reference: K9108
| Engine Code | TU3J2 |
|---|---|
| YOM From | 1991 |
| YOM To | 1996 |
| Bore Size | 75.5mm , 75mm , 76mm |
| Stroke | 77mm |
| Compression Height | 41.5mm |
| OEM Comp Ratio | 9.9:1 |
| Number of Rings | 3 |
| OEM Rod Length | 126.8mm |
| Clip Part Number | CW18 |
| Pin Size | 18mm |
| Pin Part Number | WP031 |
| Cylinders | 4 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9108D050 | 75.42mm | 11.54:1 | 1378cc |
| K9108D100 | 75.92mm | 11.68:1 | 1396cc |
| K9108DA | 74.92mm | 11.4:1 | 1360cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
