£849.43

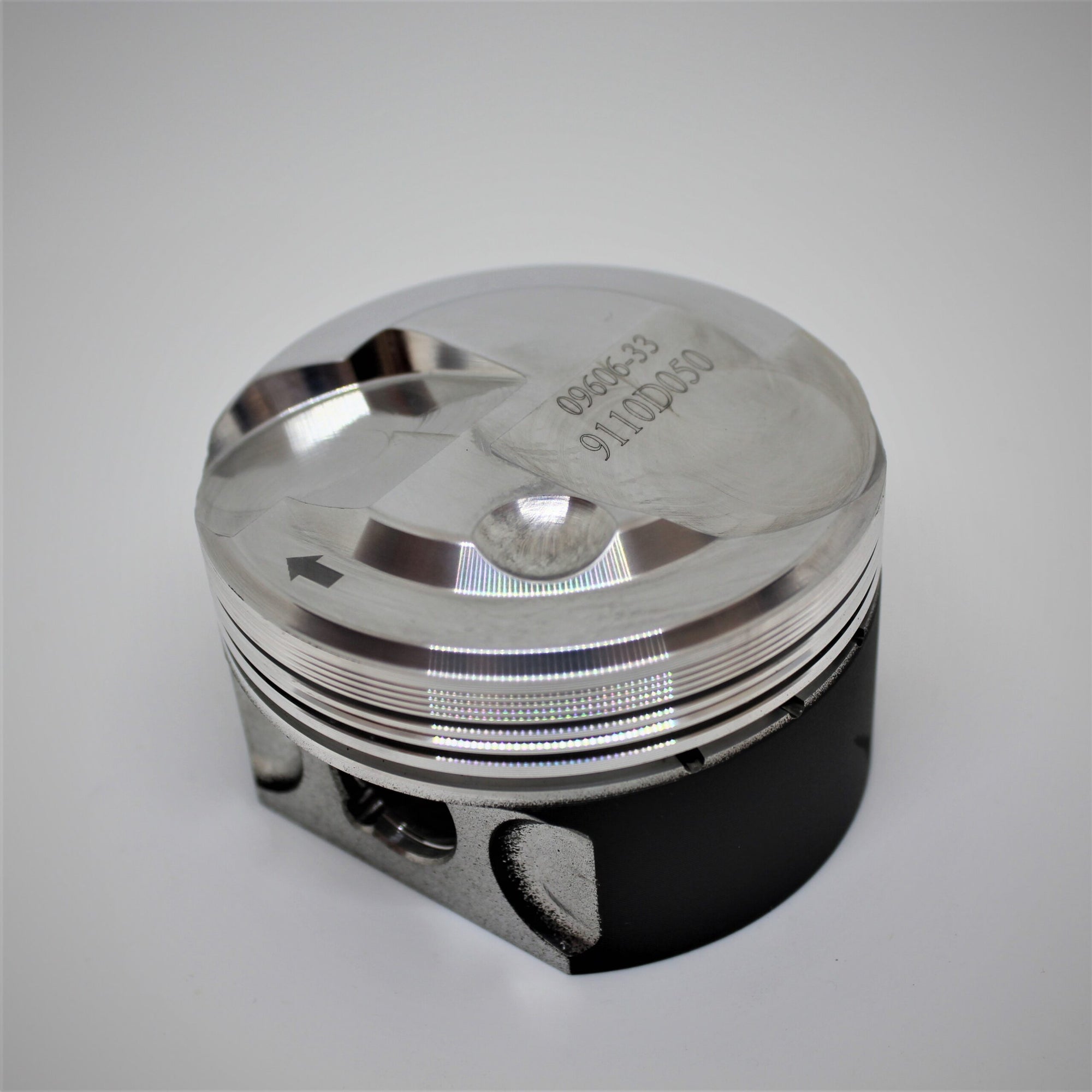

106 1.6 8v XSi High Comp Forged Piston Kit.
Manufacturer kit reference: K9110
| Engine Code | TU5J2 |
|---|---|
| YOM From | 1994 |
| YOM To | 2001 |
| Bore Size | 78.5mm , 78.7mm , 79.5mm , 79mm |
| Stroke | 82mm |
| Compression Height | 32.5mm |
| OEM Comp Ratio | 9.6:1 |
| Number of Rings | 3 |
| OEM Rod Length | 133.6mm |
| Clip Part Number | CW18 |
| Pin Size | 18mm |
| Pin Part Number | WP039 |
| Cylinders | 4 |
| Valves Per Cylinder | 2 |
| Suits Wossner Con Rod | G0010 |
| Con Rod Length C/C | 133.5mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9110D050 | 78.92mm | 11.93:1 | 1607cc |
| K9110D020 | 78.62mm | 11.85:1 | 1595cc |
| K9110D100 | 79.42mm | 12.07:1 | 1627cc |
| K9110DA | 78.42mm | 11.8:1 | 1587cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
