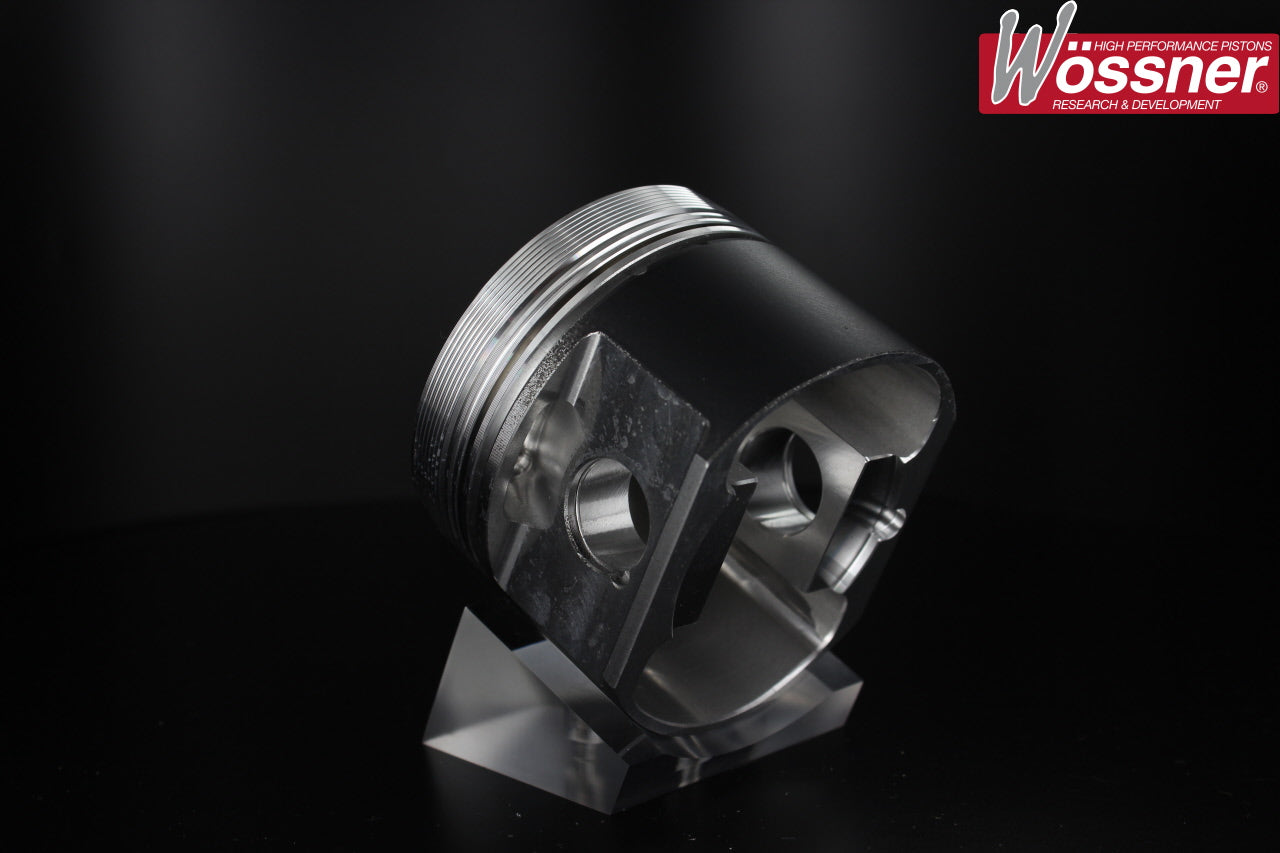

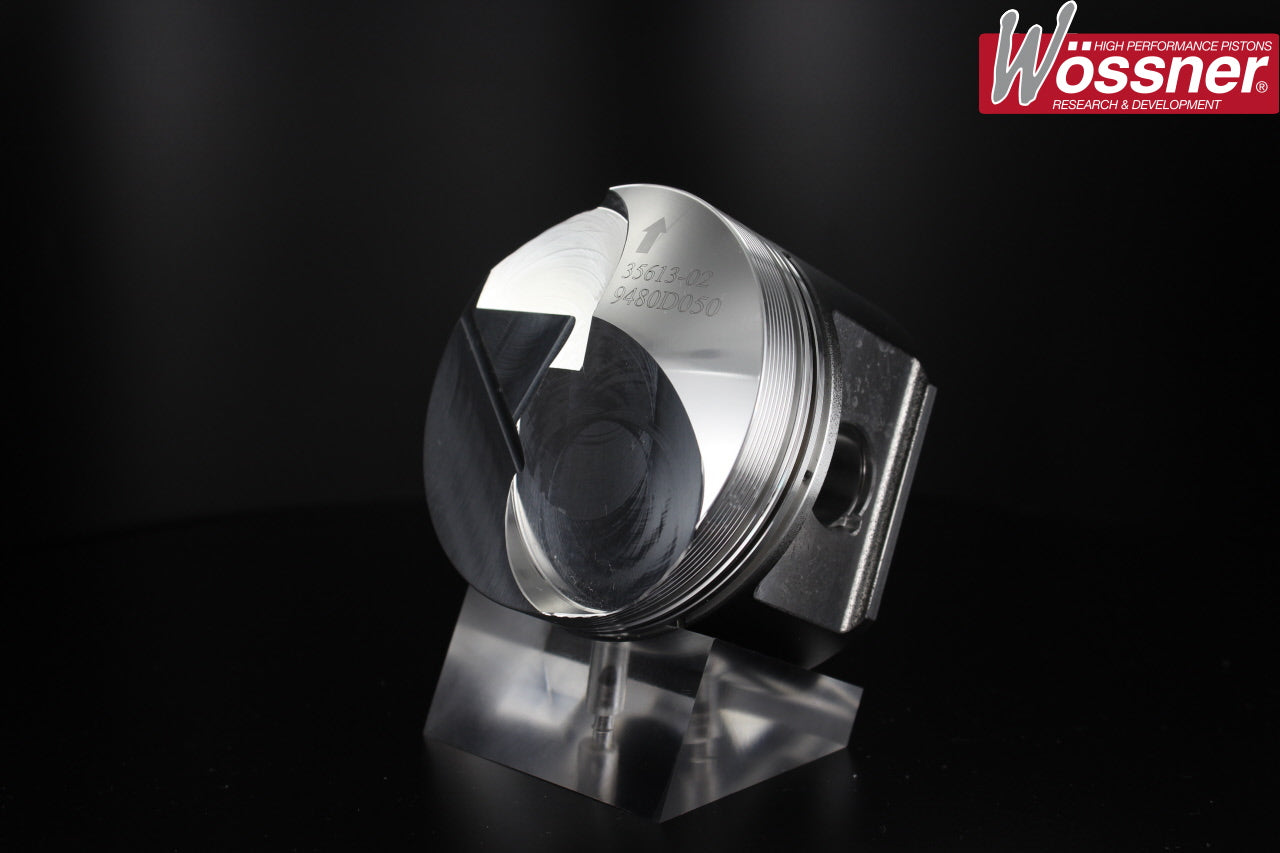

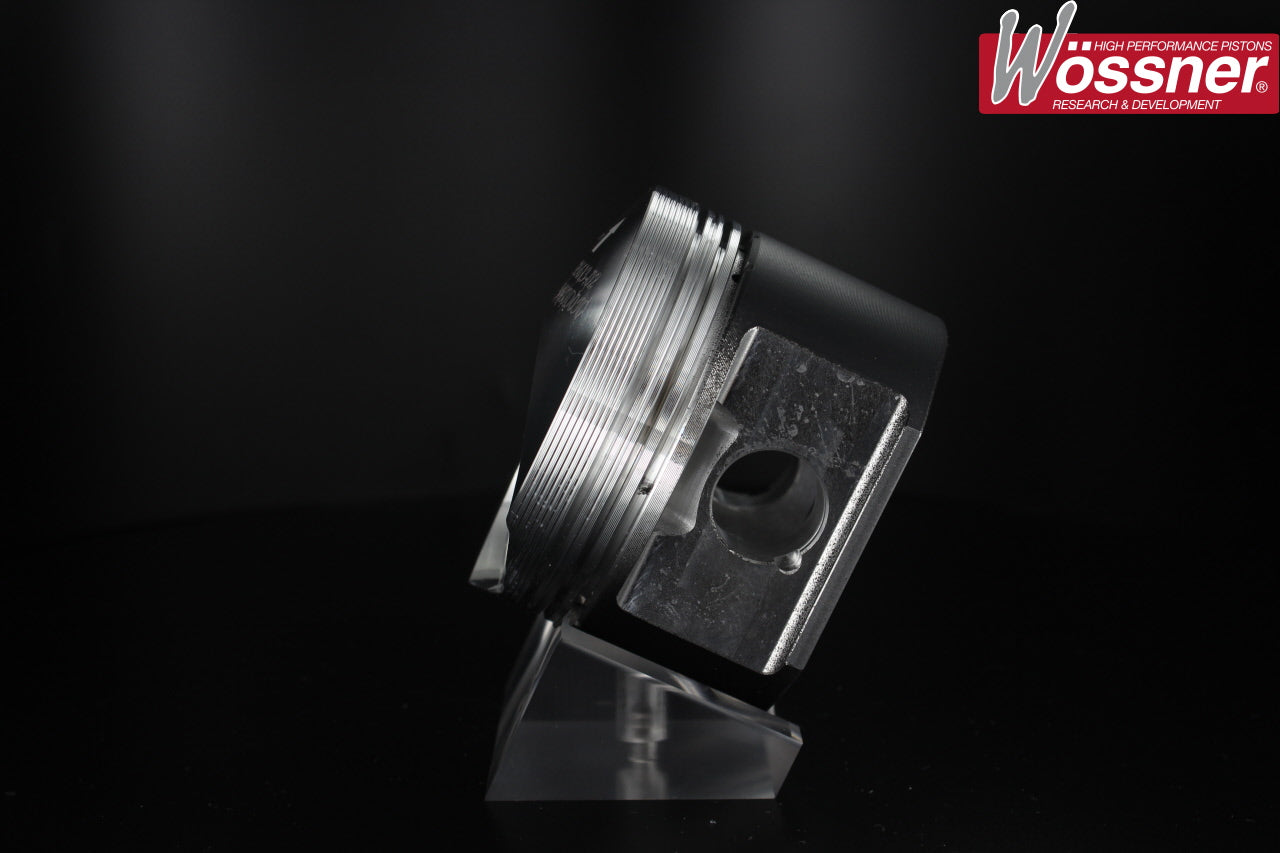

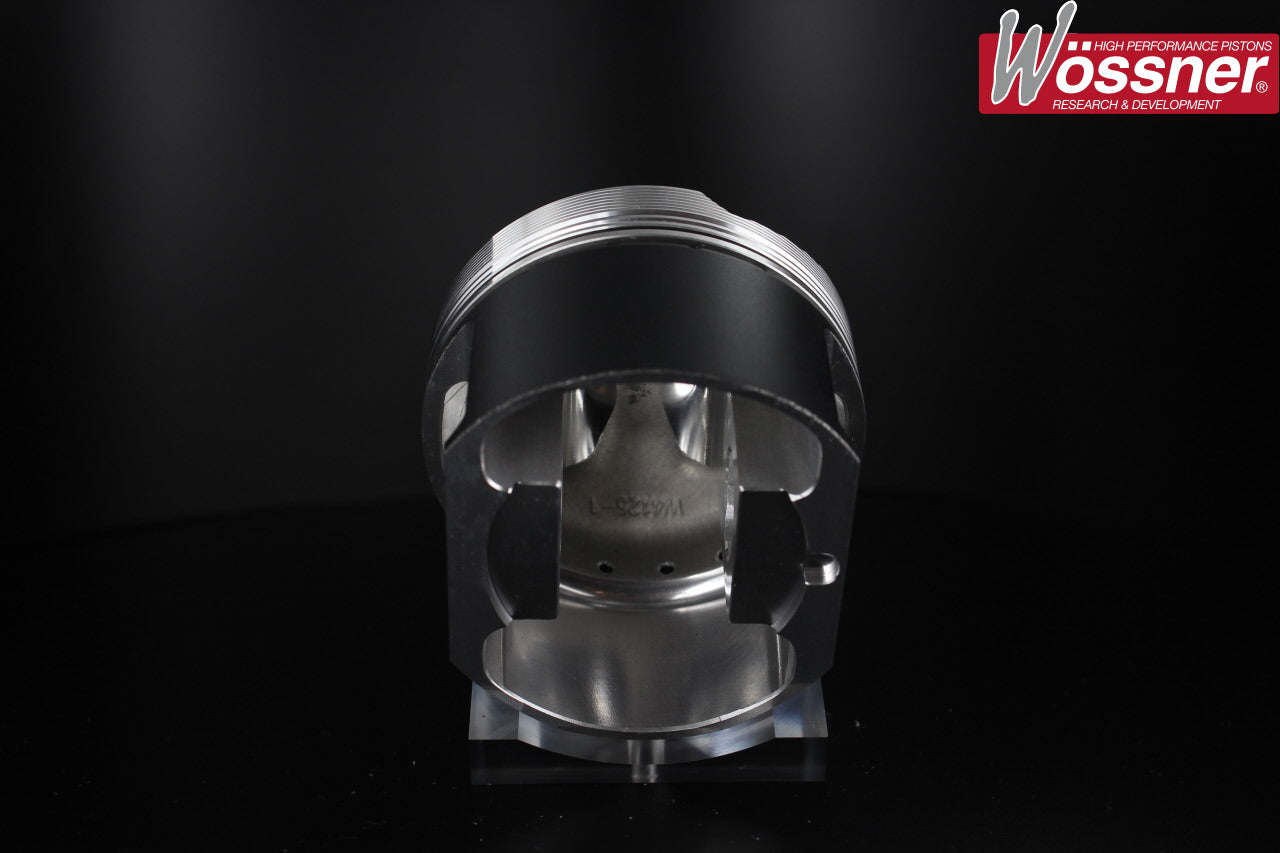

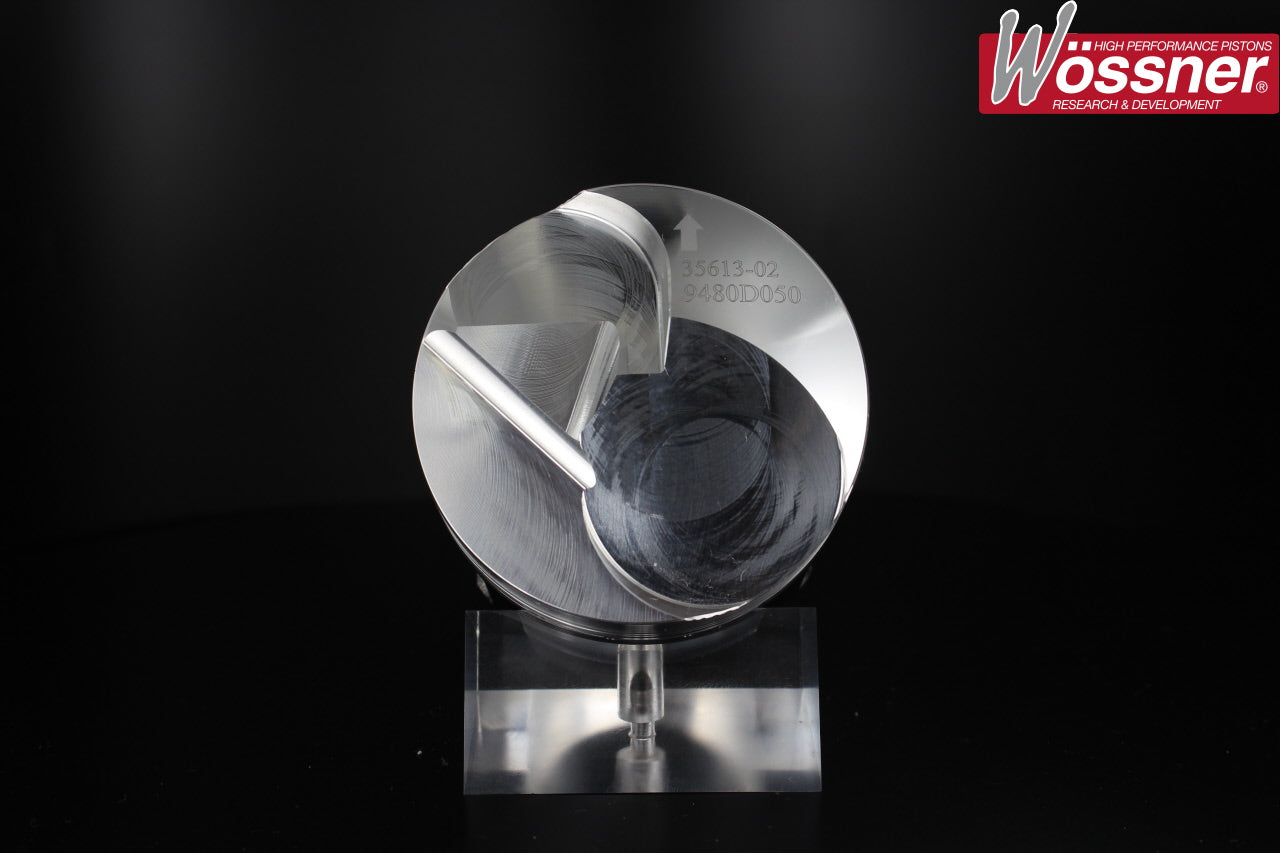

Wossner 106 1300 8V Rally Fast Road Forged Piston Kit (K9480)

£849.43

106 1300 8V Rally Fast Road Forged Piston Kit.

Manufacturer kit reference: K9480

Technical specifications

Engine Code TU2J2
YOM From 1993
YOM To 1996
Bore Size 75.5mm – K9480D050 , 75mm – K9480DA
Stroke 73.2mm
Compression Height 37mm
OEM Comp Ratio 10.2:1
Number of Rings 3
OEM Rod Length 139mm
Clip Part Number CW18
Pin Size 18mm
Pin Part Number WP053
Cylinders 4
Valves Per Cylinder 2

Piston specifications by size

Piston reference Piston diameter Compression ratio Capacity
K9480D050 75.42mm 10.6:1 1310cc
K9480DA 74.92mm 10.6:1 1293cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
