£849.43

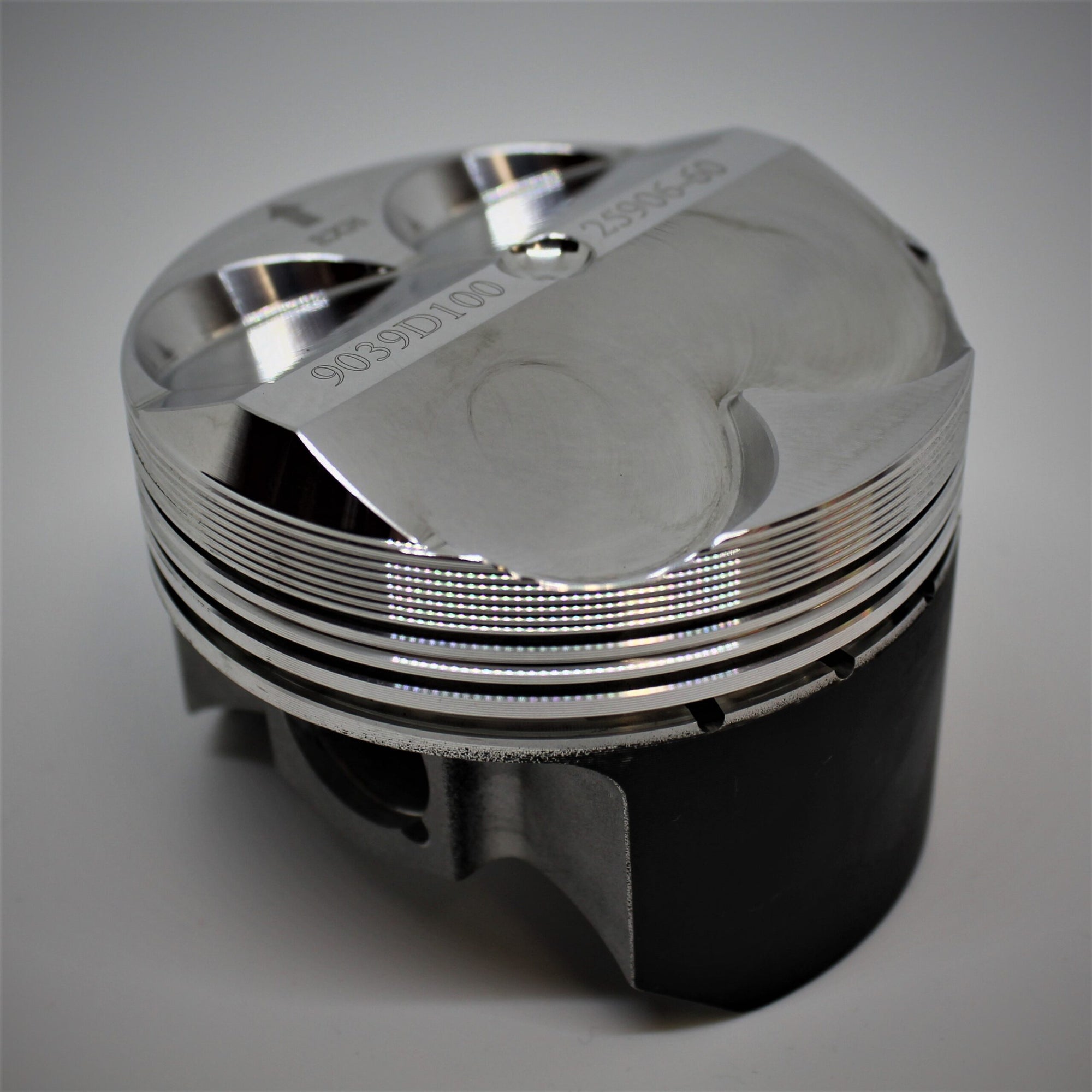

106 Gti & Saxo VTS TU5J4 1.6 16v 89mm Stroker High Comp Forged Piston Kit.
Manufacturer kit reference: K9407
| Engine Code | TU5J4 |
|---|---|
| YOM From | 1996 |
| YOM To | 2004 |
| Bore Size | 79.5mm , 80mm |
| Stroke | 89mm |
| Compression Height | 29mm |
| OEM Comp Ratio | 10.7:1 |
| Number of Rings | 3 |
| OEM Rod Length | 133.6mm |
| Clip Part Number | CW20 (19.46) |
| Pin Size | 19.4564mm |
| Pin Part Number | WP096 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0009 |
| Con Rod Length C/C | 133.5mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9407D100 | 79.43mm | 11.5:1 | 1722cc |
| K9470D150 | 79.93mm | 11.5:1 | 1767cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
