£1,301.34

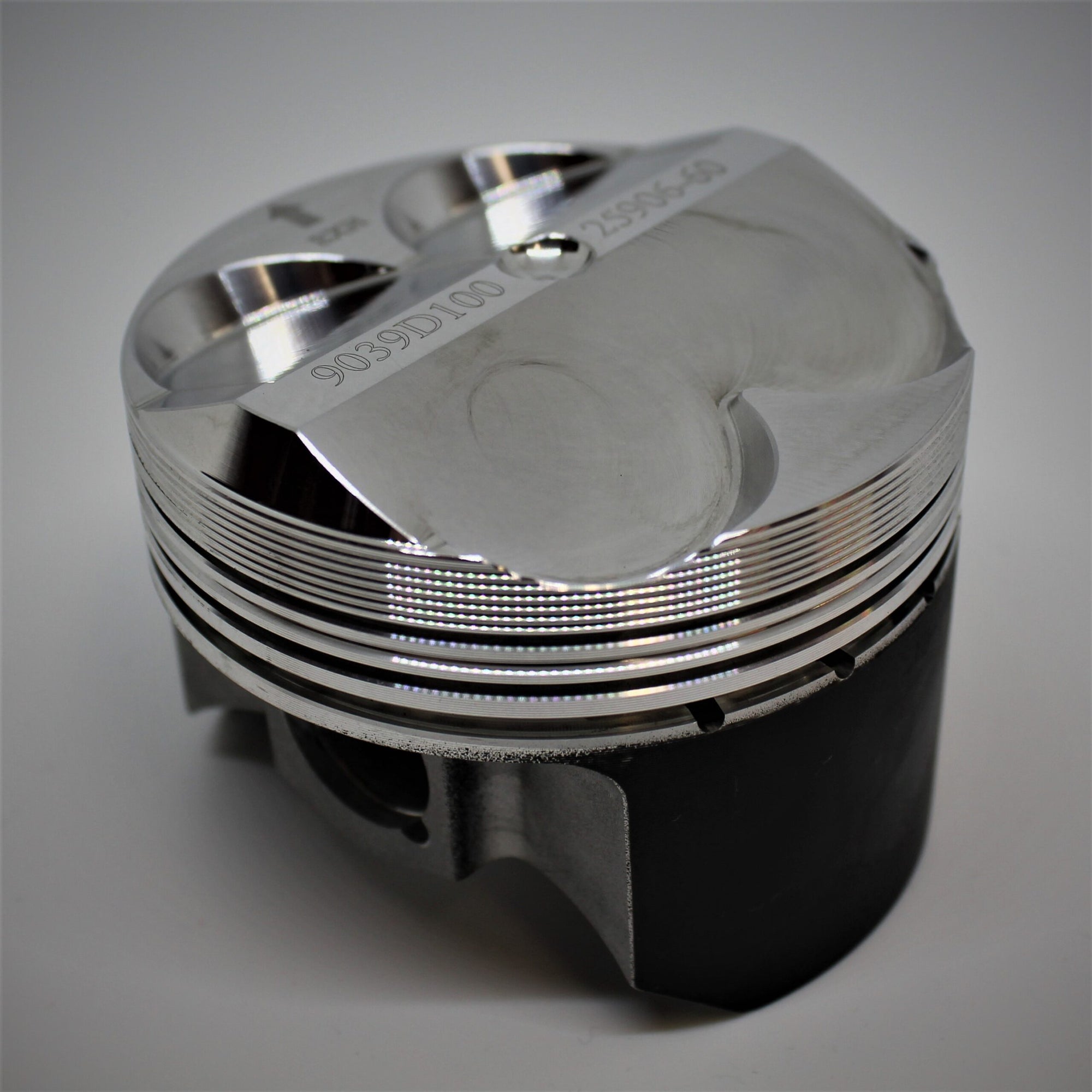

106 Gti & Saxo VTS TU5J4 1.6 16v High Comp Forged Piston & I-Beam Steel Con Rod Package.
Manufacturer kit reference: K9039/G0238
| Engine Code | TU5J4 |
|---|---|
| YOM From | 1996 |
| YOM To | 2004 |
| Bore Size | 78.5mm , 78.7mm , 79.5mm , 79mm , 80mm |
| Stroke | 82mm |
| Compression Height | 32.5mm |
| OEM Comp Ratio | 10.7:1 |
| Number of Rings | 3 |
| OEM Rod Length | 133.6mm |
| Clip Part Number | CW20 (19.46) |
| Pin Size | 19.4564mm |
| Pin Part Number | WP096 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0009 |
| Con Rod Length C/C | 133.5mm |
| Engine Code | TU5J4 & TU5JP4 |
|---|---|
| YOM From | 1996 |
| YOM To | 2004 |
| Con Rod Length C/C | 133.5mm |
| Con Rod Big End Dia | 48.6mm |
| Con Rod Big End Width | 24mm |
| Con Rod Small End Dia | 19.46mm |
| Con Rod Small End Width | 20mm |
| Con Rod Bolt | 3/8" |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9039D020 | 78.63mm | 12.06:1 | 1595cc |
| K9039D050 | 78.93mm | 12.14:1 | 1607cc |
| K9039D100 | 79.43mm | 12.28:1 | 1627cc |
| K9039D150 | 79.93mm | 12.42:1 | 1648cc |
| K9039DA | 78.43mm | 12:1 | 1587cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
