£849.43

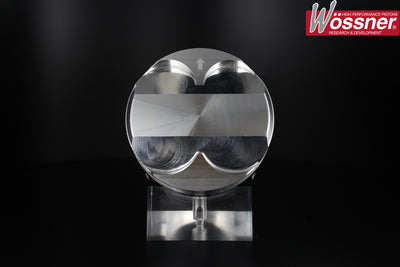

147 & 156 2.0 16v High Comp Forged Piston Kit.
Manufacturer kit reference: K9236
| Engine Code | AR 32310 |
|---|---|
| YOM From | 1995 |
| YOM To | 2010 |
| Bore Size | 83.5mm – K9236D050 , 83mm – K9236DA , 84mm – K9236D100 |
| Stroke | 91mm |
| Compression Height | 31.5mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 145mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP052 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9236DA | 82.93mm | 12.6:1 | 1969cc |
| K9236D050 | 83.43mm | 12.74:1 | 1992cc |
| K9236D100 | 83.93mm | 12.88:1 | 2016cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
