Wossner 2002TII 2.0 8v Fast Road Forged Piston & H-Beam Steel Con Rod Kit (K9508/G0353)

Wossner Pistons

Wossner 2002TII 2.0 8v Fast Road Forged Piston & H-Beam Steel Con Rod Kit (K9508/G0353)

£1,337.74

2002TII 2.0 8v Fast Road Forged Piston & H-Beam Steel Con Rod Kit.

Manufacturer kit reference: K9508/G0353

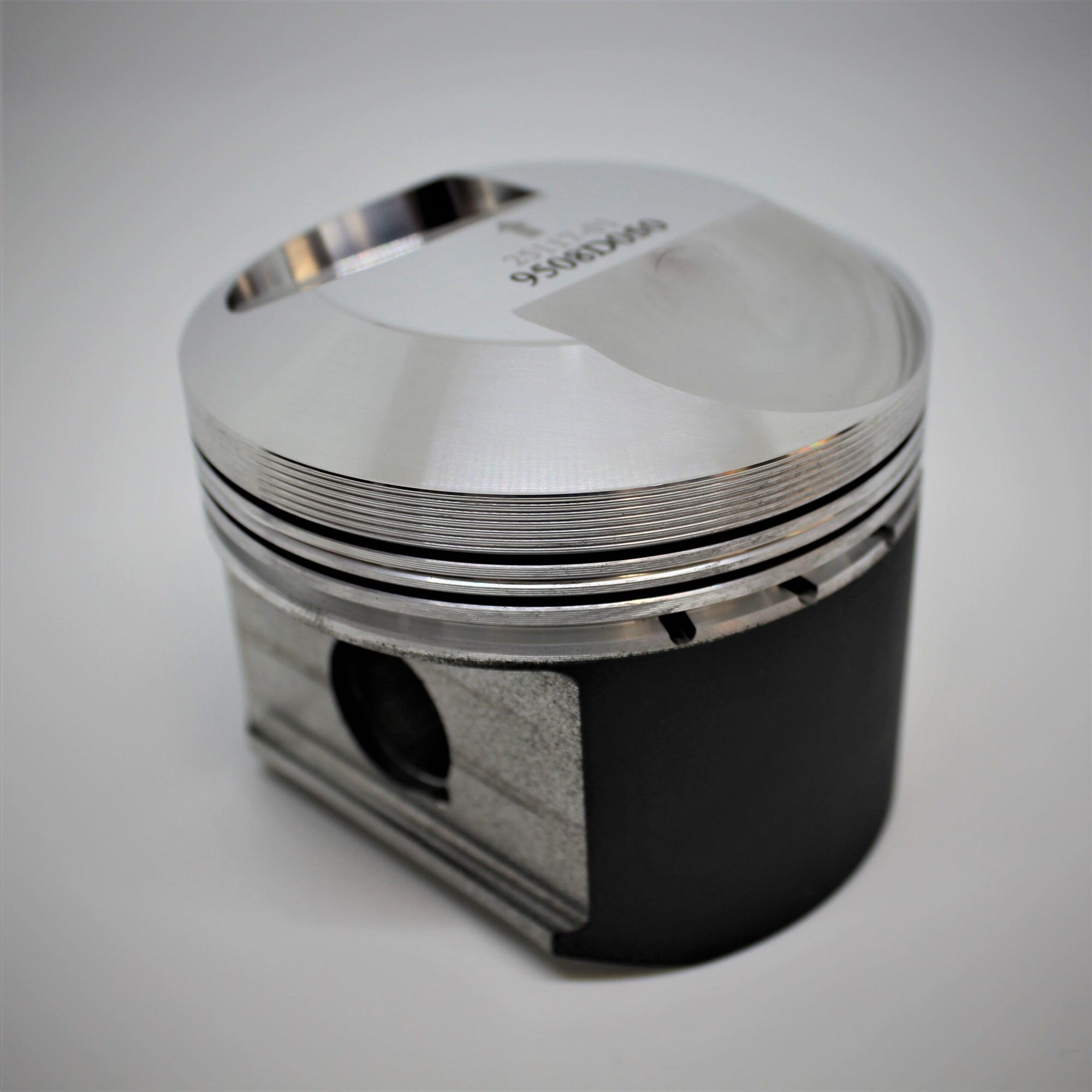

2002TII 2.0 8v Fast Road Forged Piston Kit

Engine Code	M10B20
YOM From	1968
YOM To	1979
Bore Size	89.25mm – K9508D020 , 89.5mm – K9508D050 , 89.75mm – K9508D075 , 89mm – K9508DA , 90mm – K9508D100
Stroke	80mm
Compression Height	42.7mm
OEM Comp Ratio	9.5:1
Number of Rings	3
OEM Rod Length	135mm
Clip Part Number	CW22
Pin Size	22mm
Pin Part Number	WP017
Cylinders	4
Valves Per Cylinder	2
Suits Wossner Con Rod	G0305
Con Rod Length C/C	148mm

BMW 2002 M10 H-Beam Connecting rods

Engine Code	M10B20
Con Rod Length C/C	135.00mm
Con Rod Big End Dia	52mm
Con Rod Big End Width	23.9mm
Con Rod Small End Dia	22mm
Con Rod Small End Width	23.90mm
Con Rod Bolt	3/8"

Kit contents

2002TII 2.0 8v Fast Road Forged Piston Kit
BMW 2002 M10 H-Beam Connecting rods
ARP Bolt 3/8" Thread 1.5" UHL 2000 Series (4AJ1.500-2SU) × 8
ARP Assembly Lubricant (100-9908)

Piston specifications by size

Piston reference	Piston diameter	Compression ratio	Capacity
K9508D020	89.13mm	11.3:1	2001cc
K9508D050	89.43mm	11.3:1	2012cc
K9508D075	89.68mm	11.3:1	2024cc
K9508D100	89.93mm	11.3:1	2035cc
K9508DA	88.93mm	11.3:1	1990cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
