£849.43

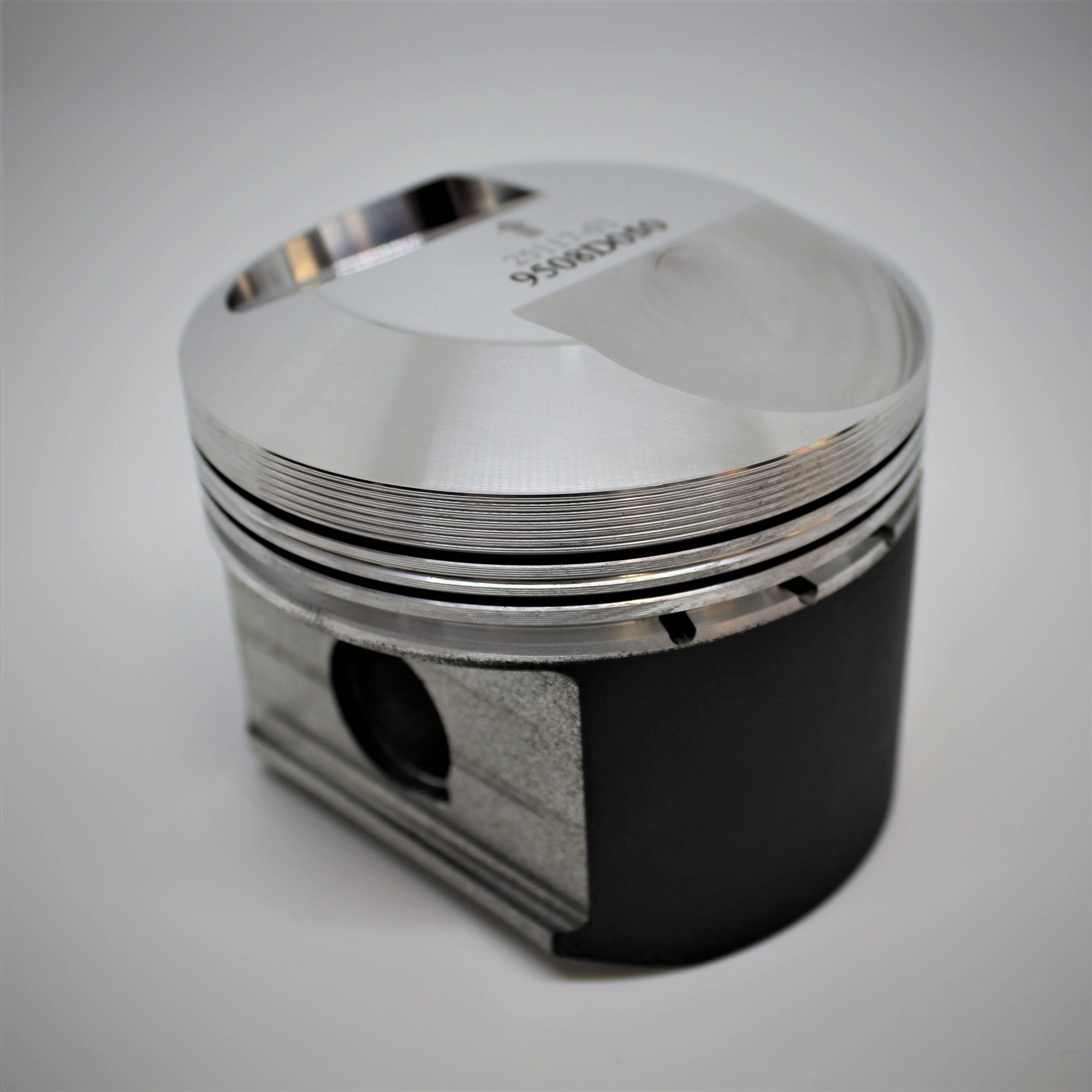

2002TII 2.0 8v Fast Road Forged Piston Kit.
Manufacturer kit reference: K9508
| Engine Code | M10B20 |
|---|---|
| YOM From | 1968 |
| YOM To | 1979 |
| Bore Size | 89.25mm – K9508D020 , 89.5mm – K9508D050 , 89.75mm – K9508D075 , 89mm – K9508DA , 90mm – K9508D100 |
| Stroke | 80mm |
| Compression Height | 42.7mm |
| OEM Comp Ratio | 9.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 135mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP017 |
| Cylinders | 4 |
| Valves Per Cylinder | 2 |
| Suits Wossner Con Rod | G0305 |
| Con Rod Length C/C | 148mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9508D020 | 89.13mm | 11.3:1 | 2001cc |
| K9508D050 | 89.43mm | 11.3:1 | 2012cc |
| K9508D075 | 89.68mm | 11.3:1 | 2024cc |
| K9508D100 | 89.93mm | 11.3:1 | 2035cc |
| K9508DA | 88.93mm | 11.3:1 | 1990cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
