£808.99

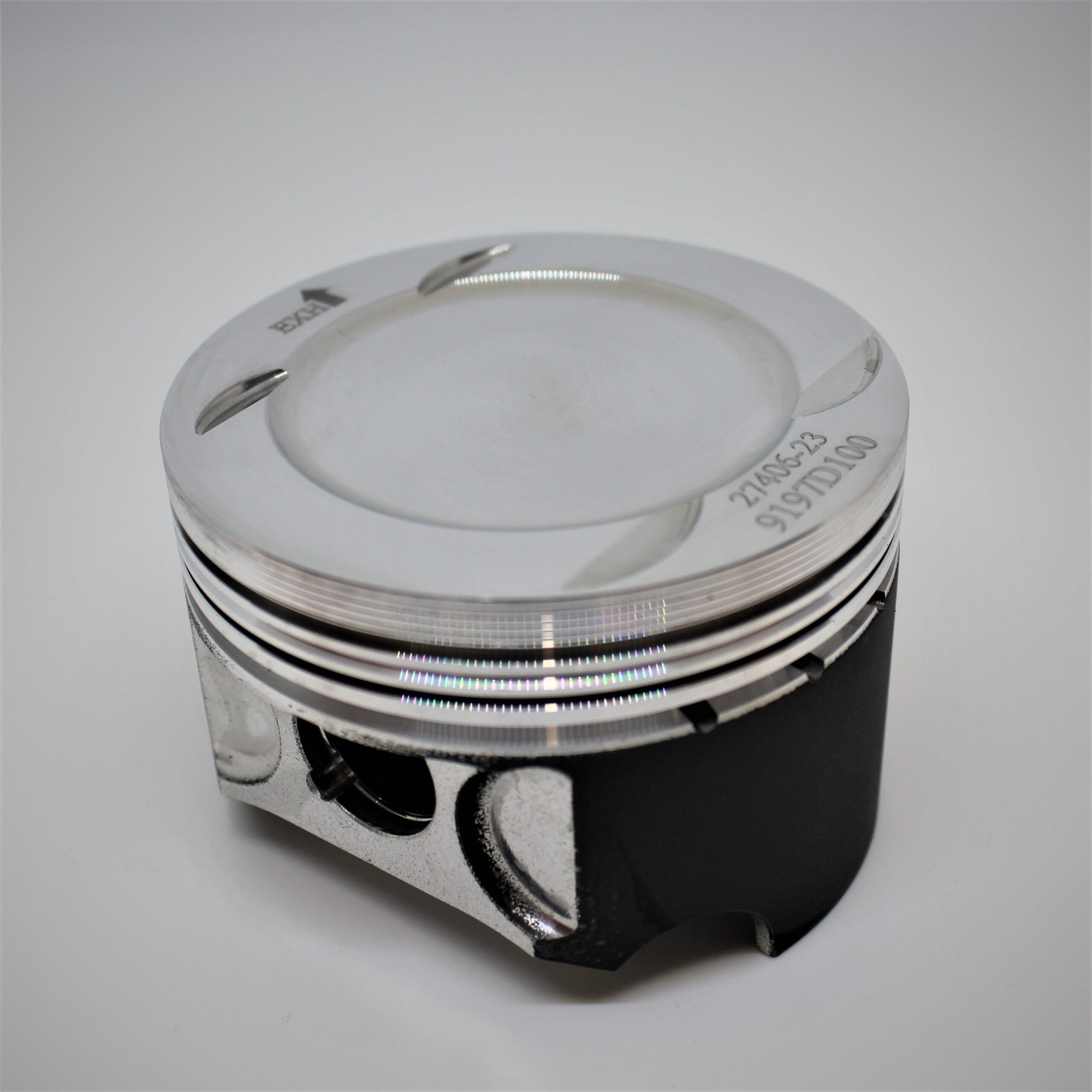

200SX S13 CA18DET 1.8 16v Turbo Low Comp Forged Piston Kit.
Manufacturer kit reference: K9197
| Engine Code | CA18DET |
|---|---|
| YOM From | 1983 |
| YOM To | 1990 |
| Bore Size | 83.5mm , 83mm , 84mm |
| Stroke | 83.6mm |
| Compression Height | 30mm |
| OEM Comp Ratio | 8.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 133mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP061 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9197DA | 82.93mm | 8:1 | 1808cc |
| K9197D050 | 83.43mm | 8.08:1 | 1830cc |
| K9197D100 | 83.93mm | 8.17:1 | 1852cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
