£849.43

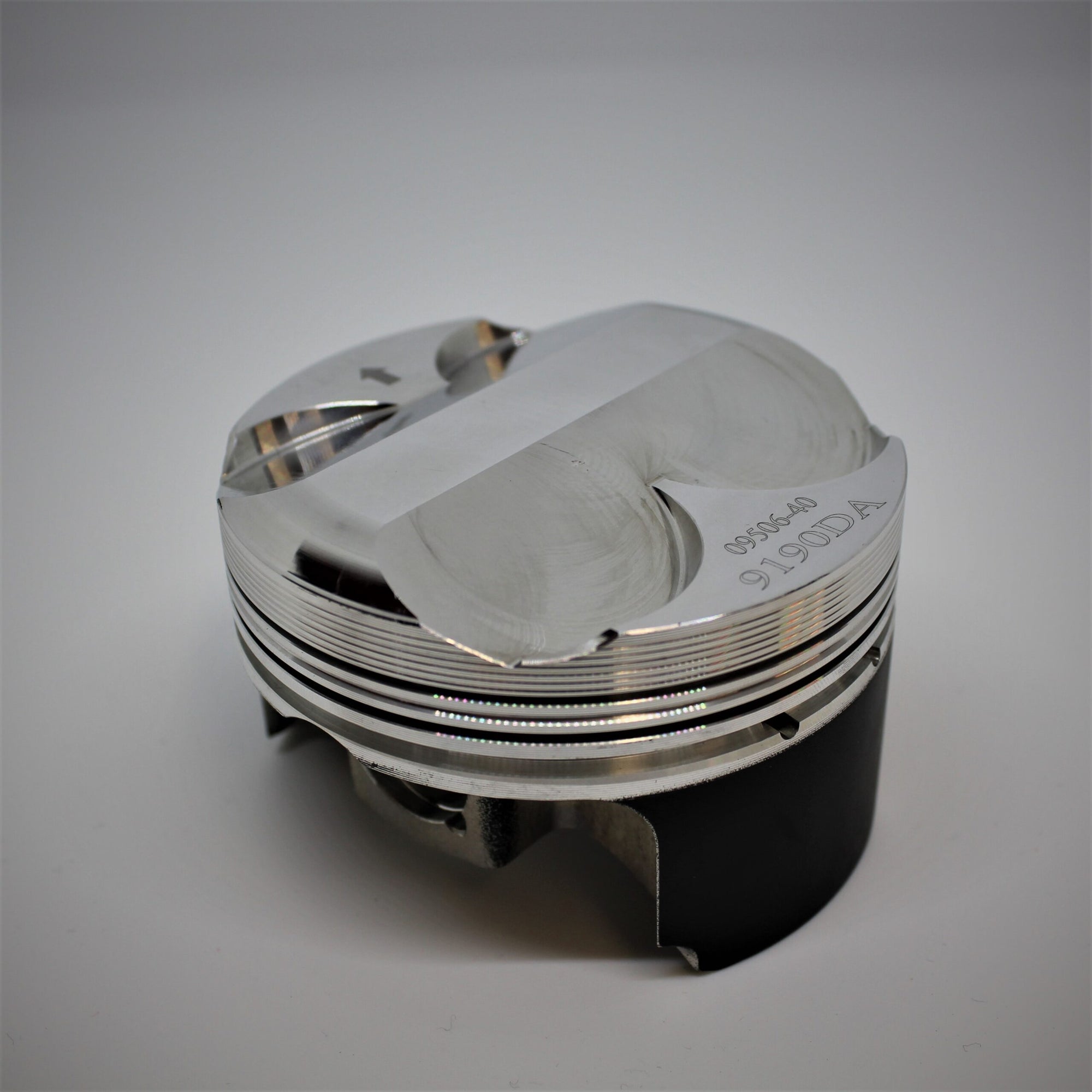

206 Gti 180 & C4 VTR 2.0 16v High Comp Wossner Forged Piston Kit.
Manufacturer kit reference: K9190
| Engine Code | EW10J4RS |
|---|---|
| YOM From | 2003 |
| YOM To | 2010 |
| Bore Size | 85.03mm , 85.5mm , 85mm |
| Stroke | 88mm |
| Compression Height | 29.5mm |
| OEM Comp Ratio | 11:01 |
| Number of Rings | 3 |
| OEM Rod Length | 139mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP051 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0020 |
| Con Rod Length C/C | 139mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9190DA | 84.93mm | 12.5:1 | 1997cc |
| K9190D050 | 85.43mm | 12.64:1 | 2020cc |
| K9190DD | 84.96mm | 12.5:1 | 1998cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
