£808.99

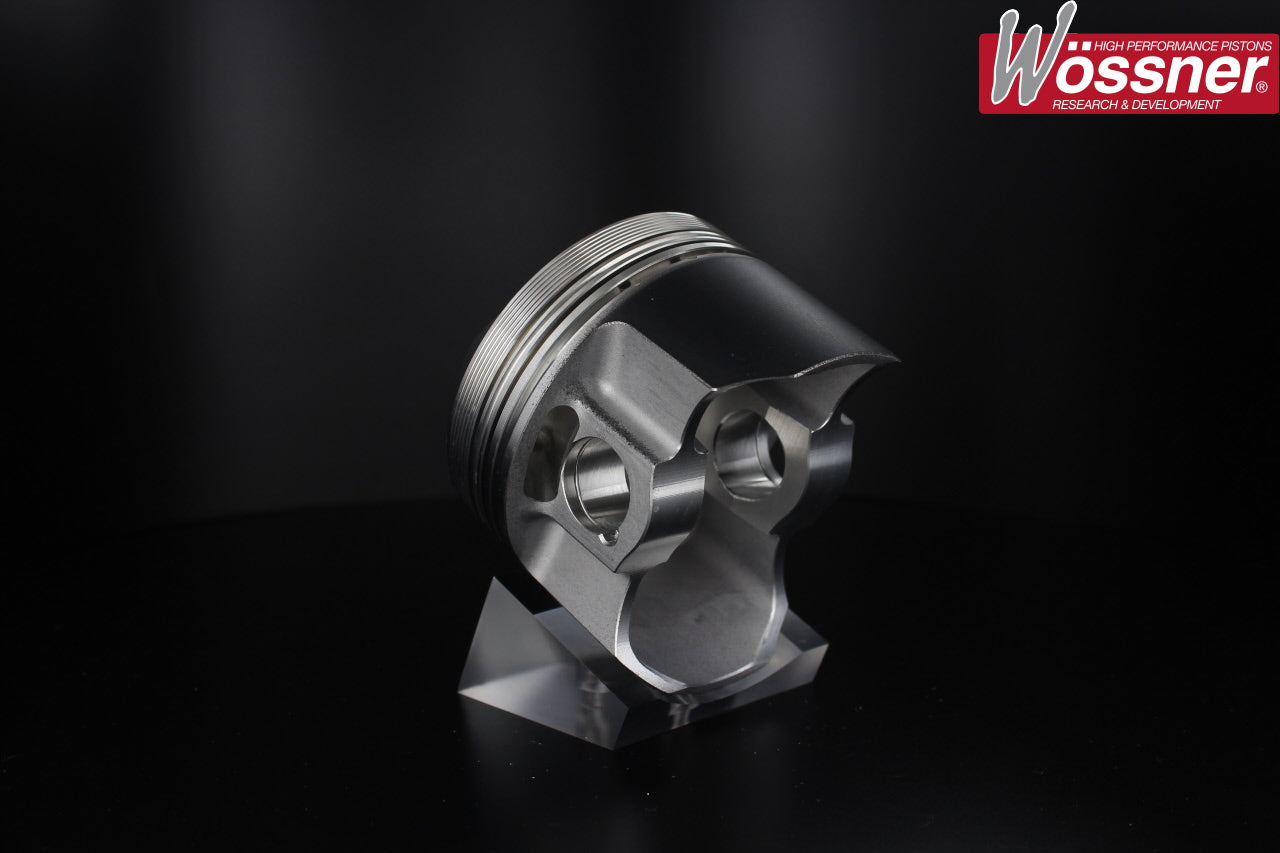

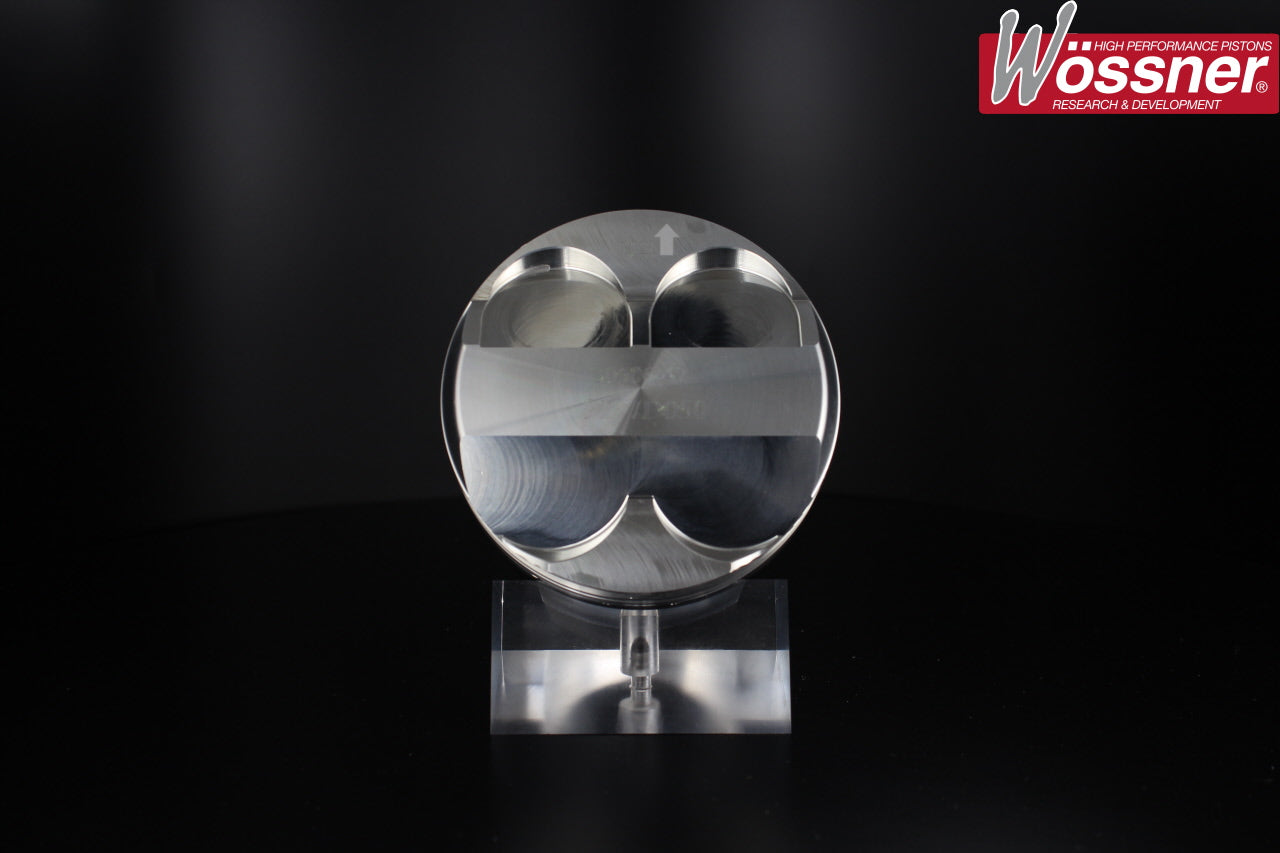

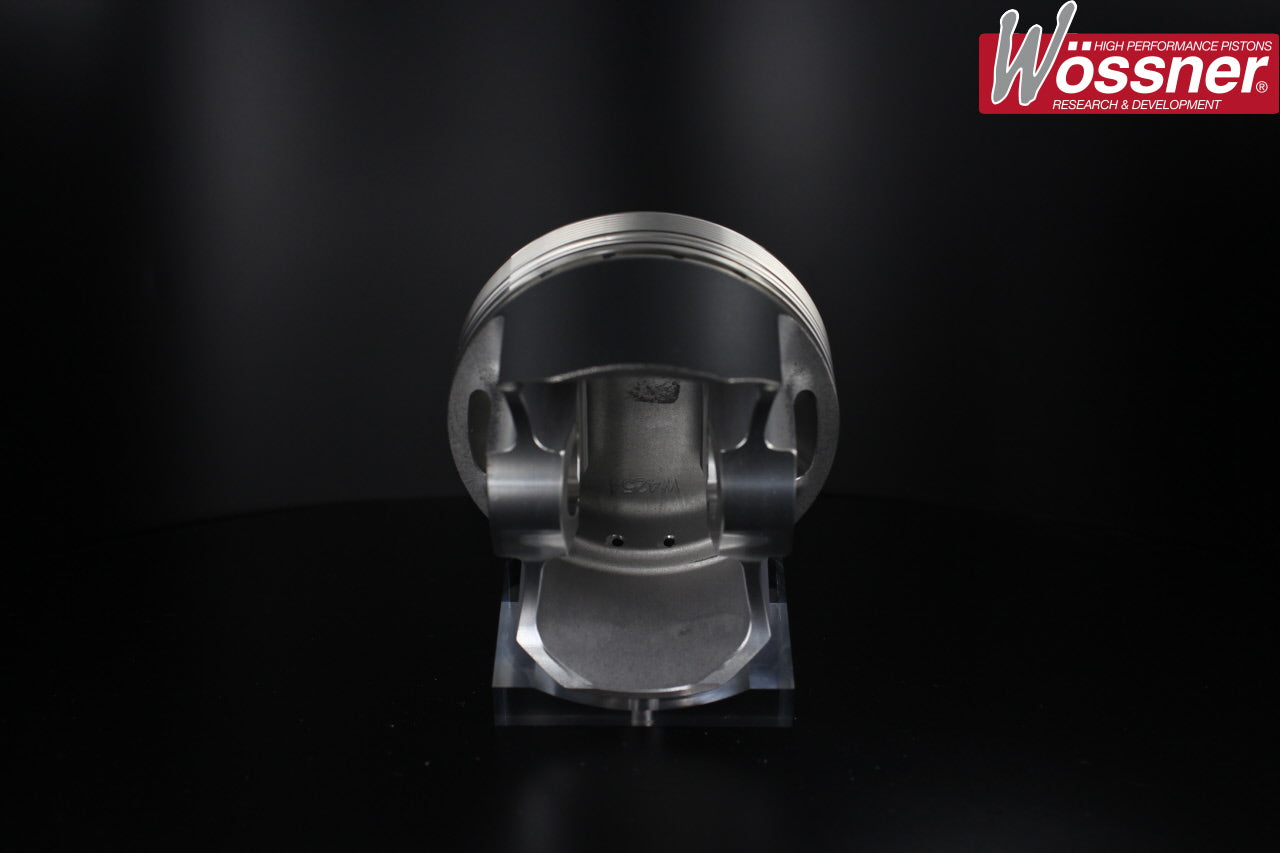

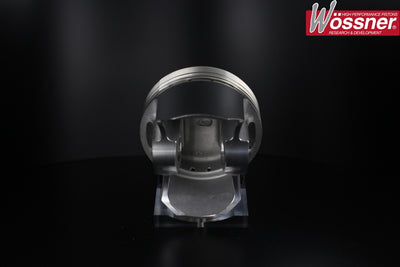

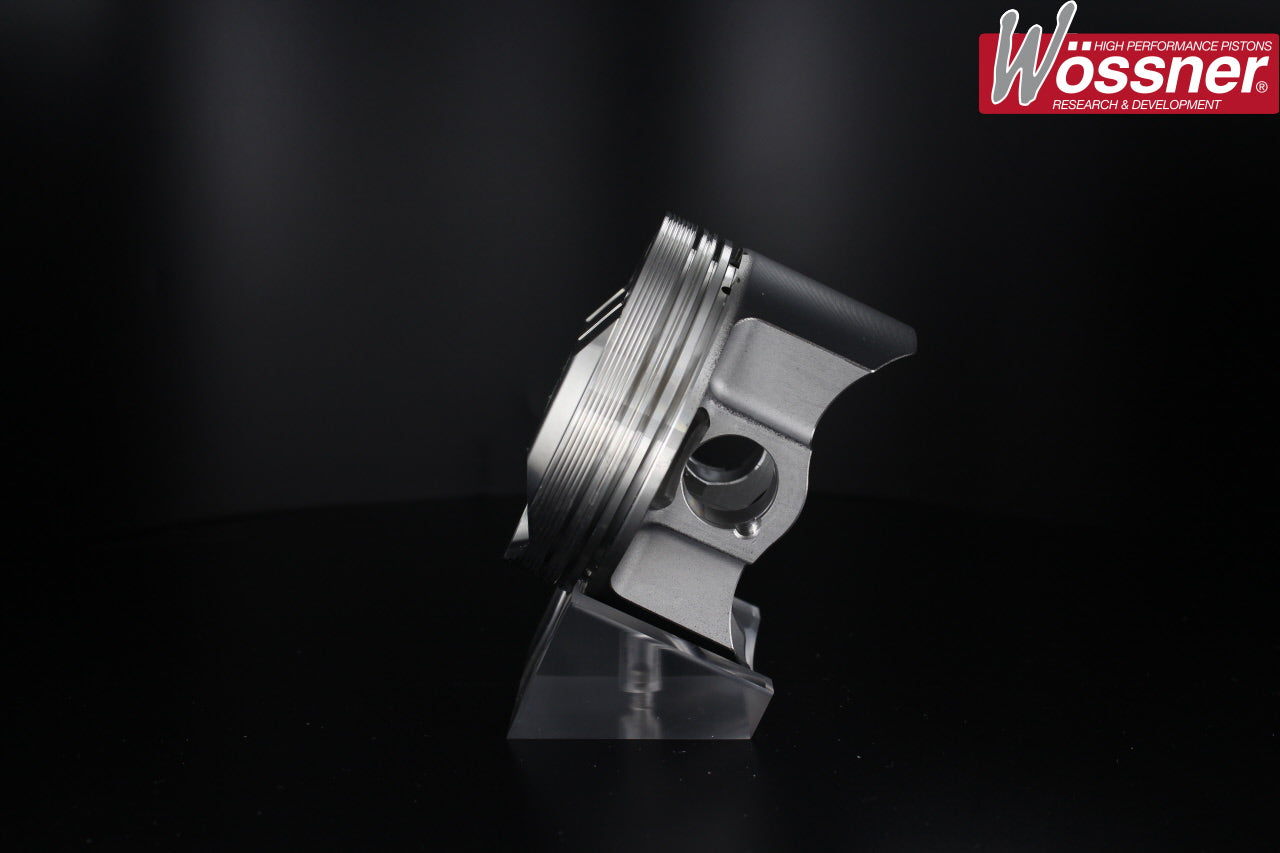

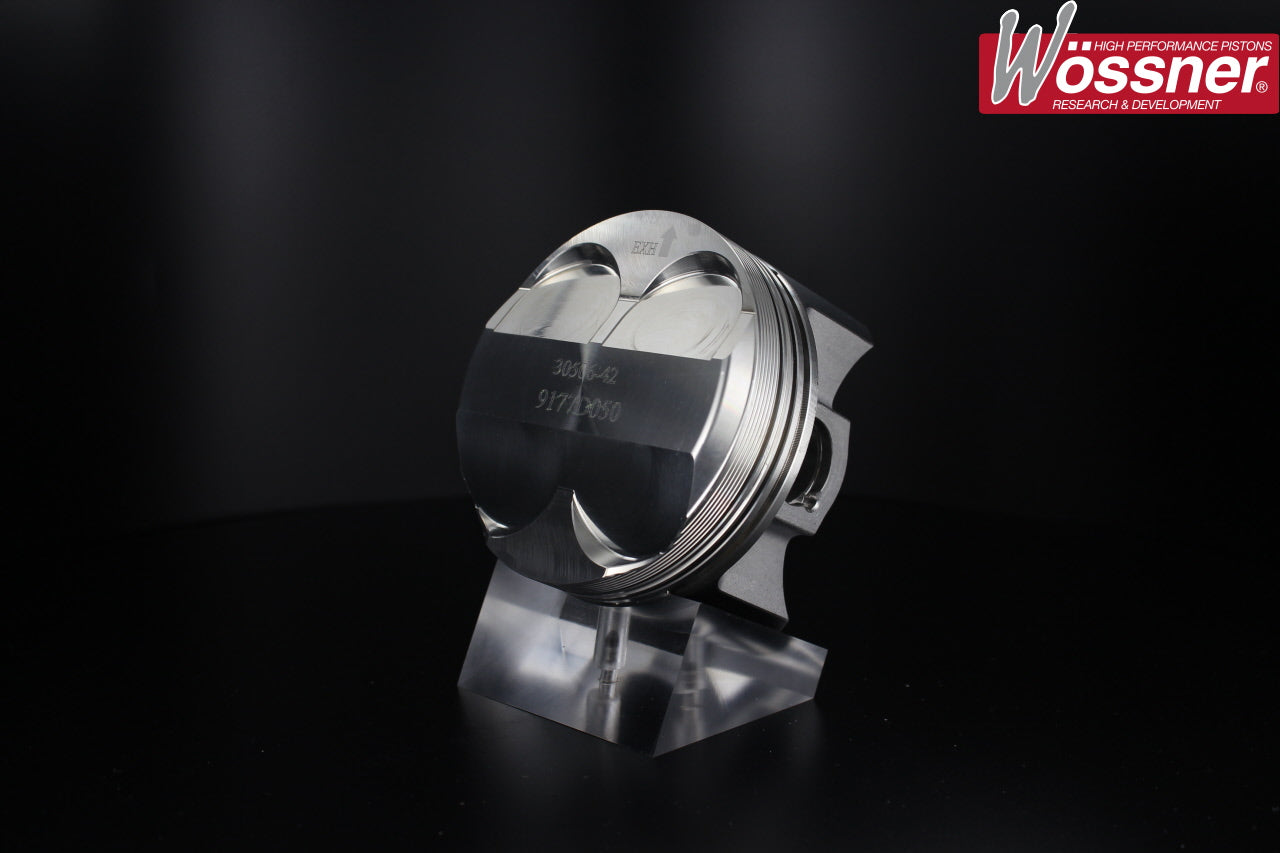

206 XSi & C2 VTS TU5JP4 1.6 16v High Comp Forged Piston Kit.
Manufacturer kit reference: K9177
| Engine Code | TU5JP4 |
|---|---|
| YOM From | 2000 |
| YOM To | 2009 |
| Bore Size | 78.5mm , 78.7mm , 79mm , 80mm |
| Stroke | 82mm |
| Compression Height | 32.1mm |
| OEM Comp Ratio | 10.8:1 |
| Number of Rings | 3 |
| OEM Rod Length | 133.6mm |
| Clip Part Number | CW18 |
| Pin Size | 18mm |
| Pin Part Number | WP031 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0010 |
| Con Rod Length C/C | 133.5mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9177D020 | 78.63mm | 12.26:1 | 1595cc |
| K9177D050 | 78.93mm | 12.34:1 | 1607cc |
| K9177D150 | 79.93mm | 12.63:1 | 1648cc |
| K9177DA | 78.43mm | 12.2:1 | 1587cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
