Wossner 206 XSi & C2 VTS TU5JP4 Super Cup Long Rod High Comp Forged Piston & H-Beam Steel Con Rod Package (K9416/G0184)

£1,337.74

206 XSi & C2 VTS TU5JP4 Super Cup Long Rod High Comp Forged Piston & H-Beam Steel Con Rod Package.

Manufacturer kit reference: K9416/G0184

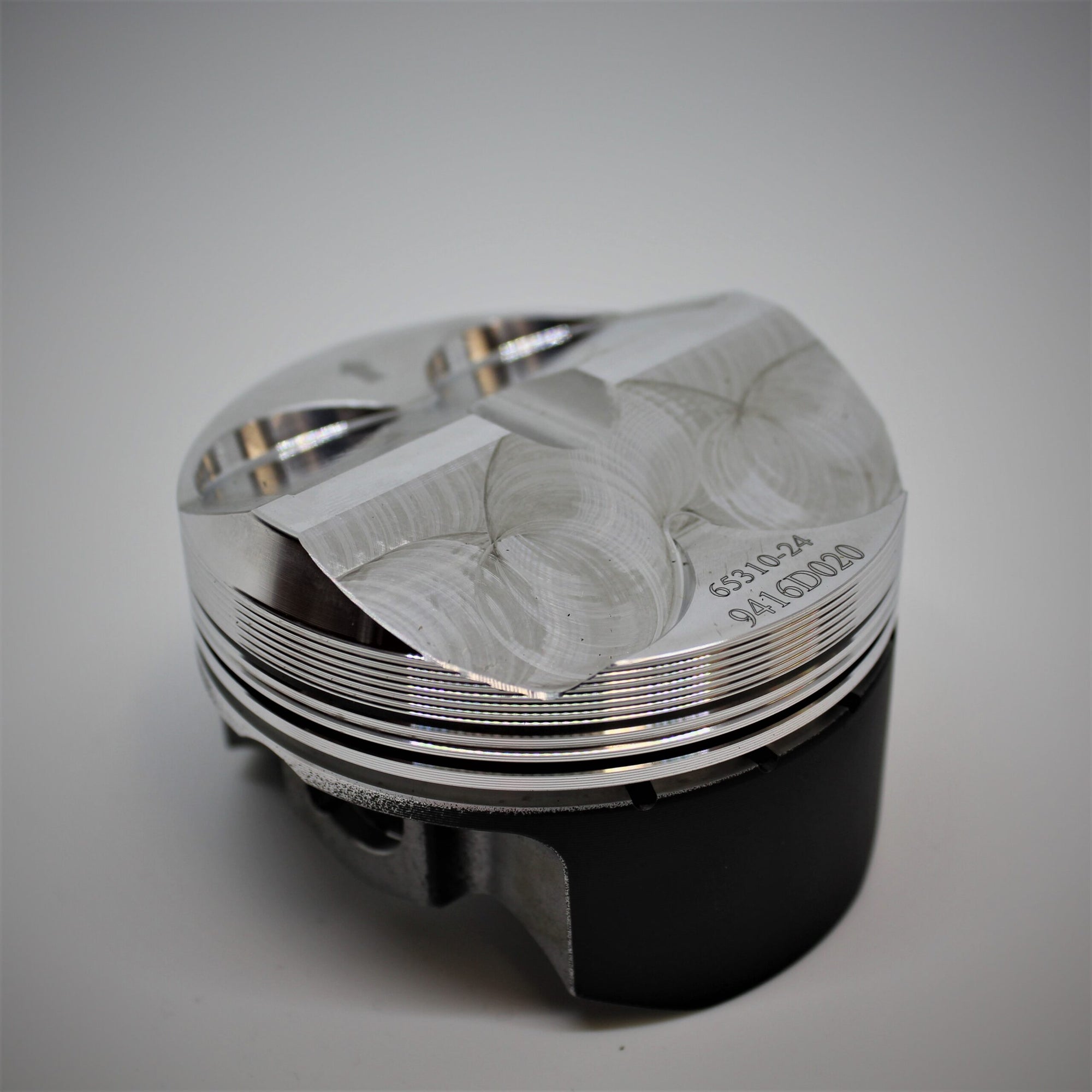

206 XSi & C2 VTS TU5JP4 Super Cup Long Rod High Comp Forged Piston Kit

Engine Code	TU5JP4
YOM From	2000
YOM To	current
Bore Size	78.7mm – K9416D020 , 79mm – K9416D050
Stroke	82mm
Compression Height	26.75mm
OEM Comp Ratio	10.7:1
Number of Rings	3
OEM Rod Length	139mm
Clip Part Number	CW18
Pin Size	18mm
Pin Part Number	WP031
Cylinders	4
Valves Per Cylinder	4
Suits Wossner Con Rod	G0184
Con Rod Length C/C	139mm

TU5J4 1.6 16v Maxi Saxo & 106 GTi / TU5JP4 C2 & 206 H-Beam Connecting rods

Engine Code	TU5J4 & TU5JP4
YOM From	1996
YOM To	2004
Con Rod Length C/C	139mm
Con Rod Big End Dia	48.6mm
Con Rod Big End Width	23.8mm
Con Rod Small End Dia	18mm
Con Rod Small End Width	20mm
Con Rod Bolt	3/8"

Kit contents

206 XSi & C2 VTS TU5JP4 Super Cup Long Rod High Comp Forged Piston Kit
TU5J4 1.6 16v Maxi Saxo & 106 GTi / TU5JP4 C2 & 206 H-Beam Connecting rods
ARP Bolt 3/8" Thread 1.5" UHL 2000 Series (4AJ1.500-2SU) × 8
ARP Assembly Lubricant (100-9908)

Piston specifications by size

Piston reference	Piston diameter	Compression ratio	Capacity
K9416D020	78.62mm	13:1	1595cc
K9416D050	78.92mm	13.09:1	1607cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
