£849.43

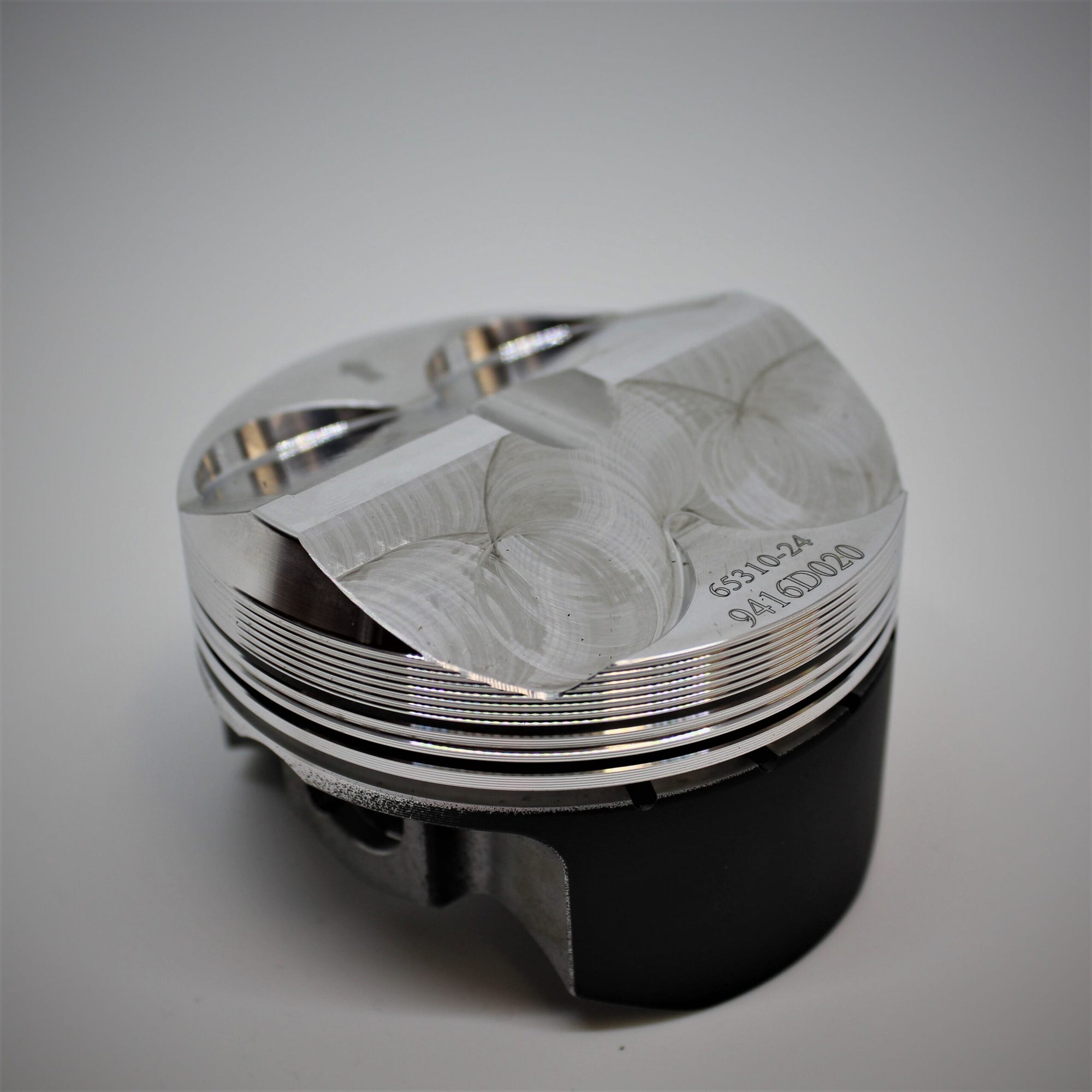

206 XSi & C2 VTS TU5JP4 Super Cup Long Rod High Comp Forged Piston Kit.
Manufacturer kit reference: K9416
| Engine Code | TU5JP4 |
|---|---|
| YOM From | 2000 |
| YOM To | current |
| Bore Size | 78.7mm – K9416D020 , 79mm – K9416D050 |
| Stroke | 82mm |
| Compression Height | 26.75mm |
| OEM Comp Ratio | 10.7:1 |
| Number of Rings | 3 |
| OEM Rod Length | 139mm |
| Clip Part Number | CW18 |
| Pin Size | 18mm |
| Pin Part Number | WP031 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0184 |
| Con Rod Length C/C | 139mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9416D020 | 78.62mm | 13:1 | 1595cc |
| K9416D050 | 78.92mm | 13.09:1 | 1607cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
