£1,274.15

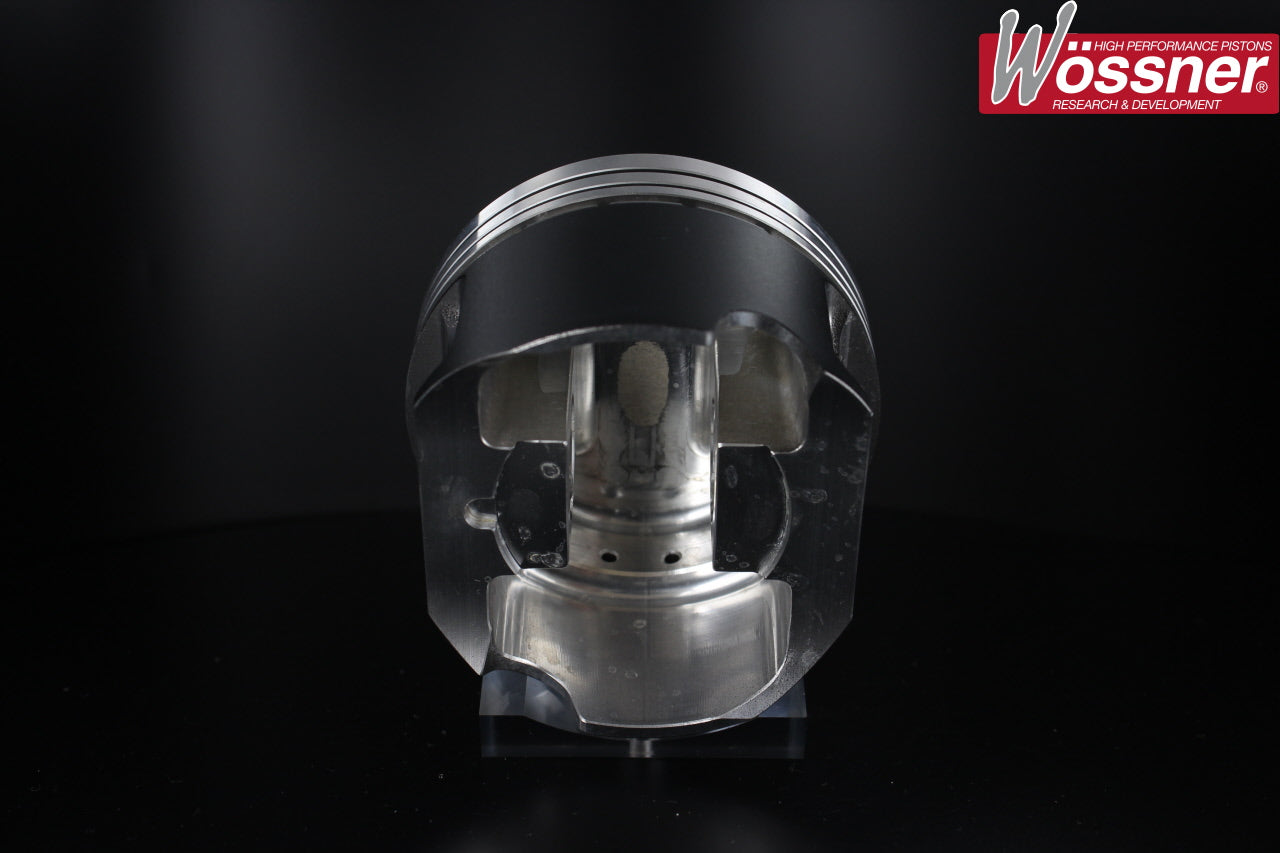

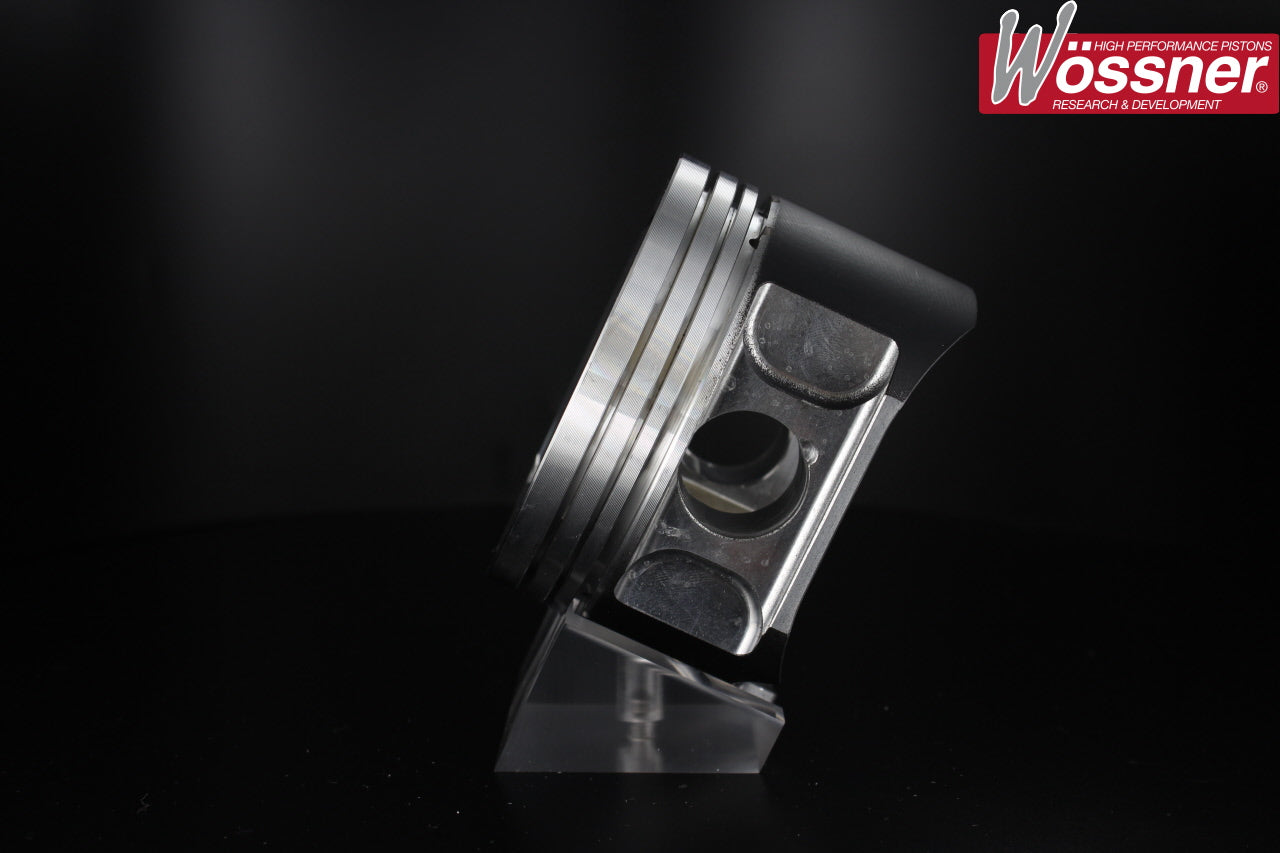

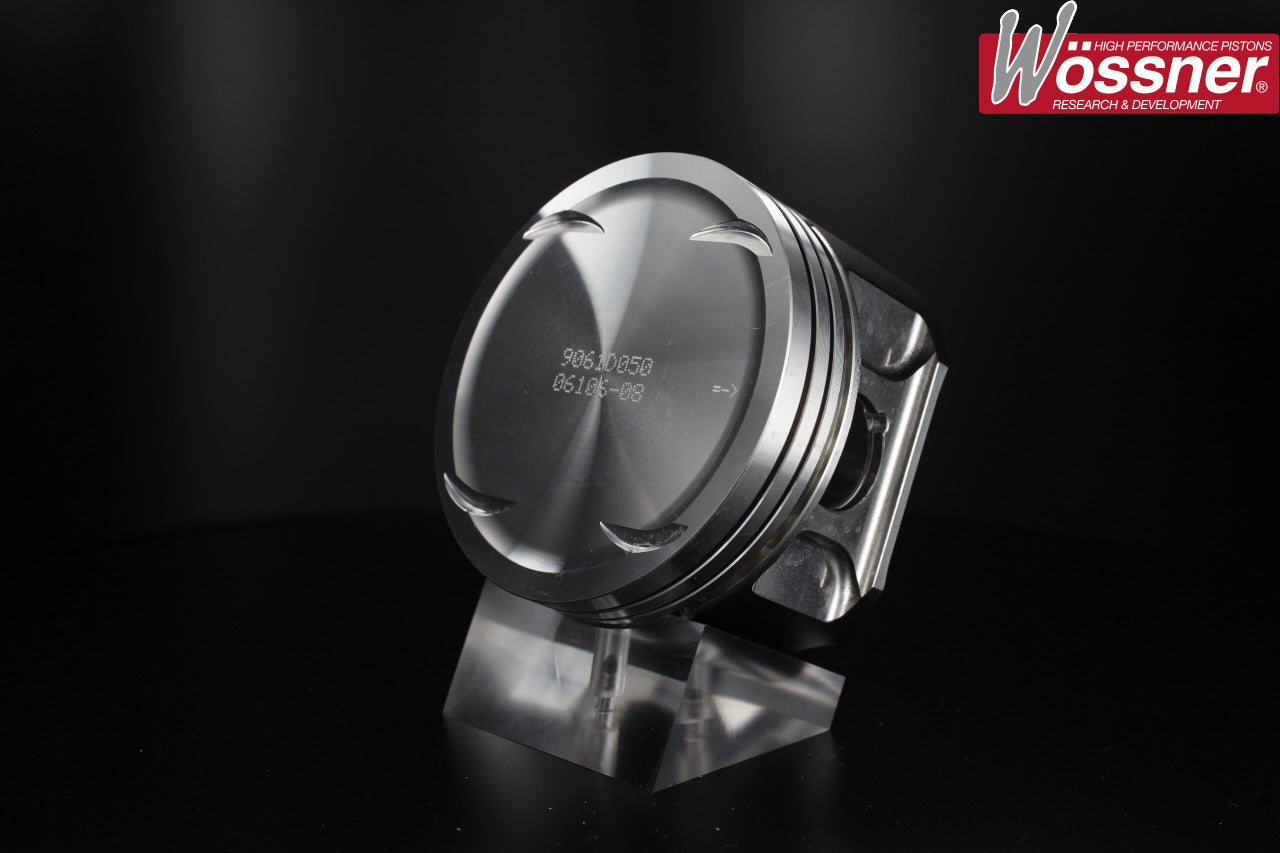

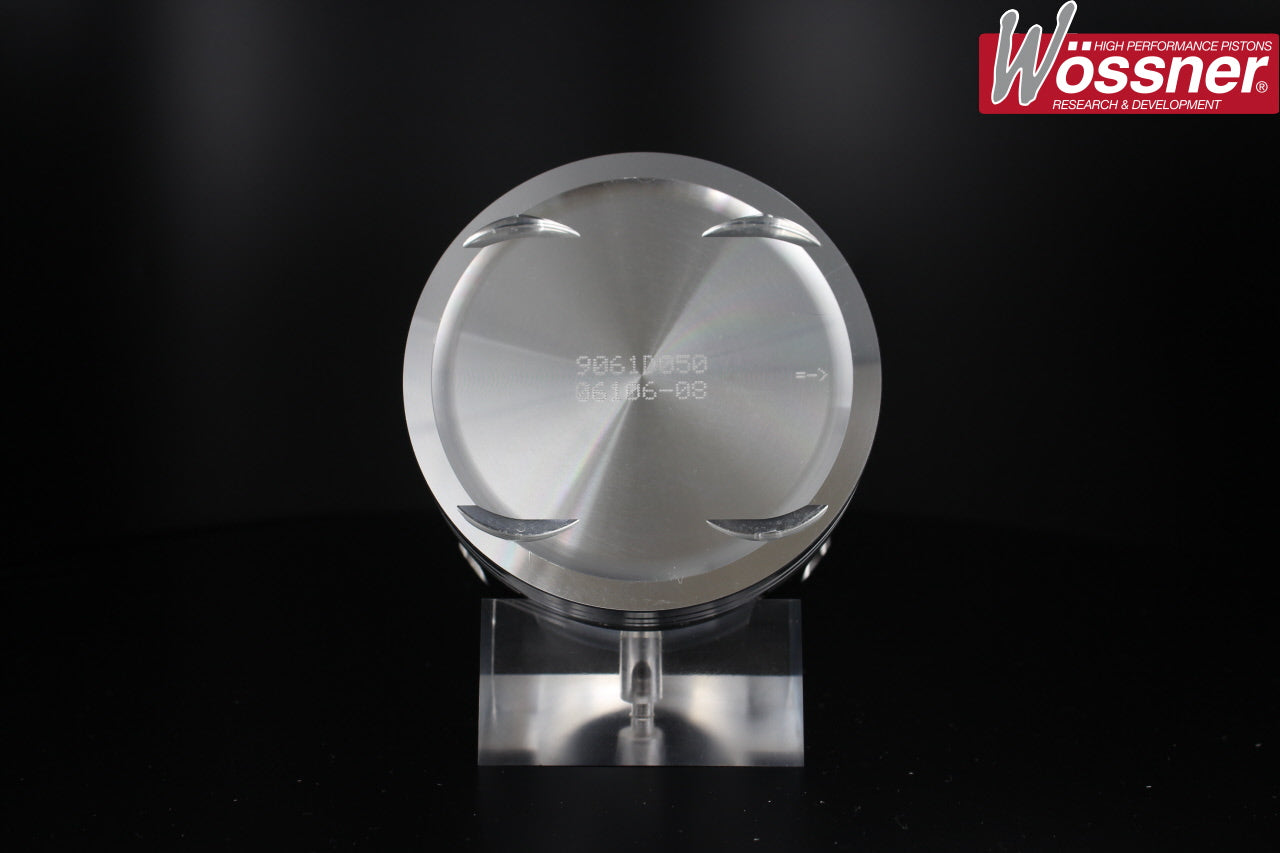

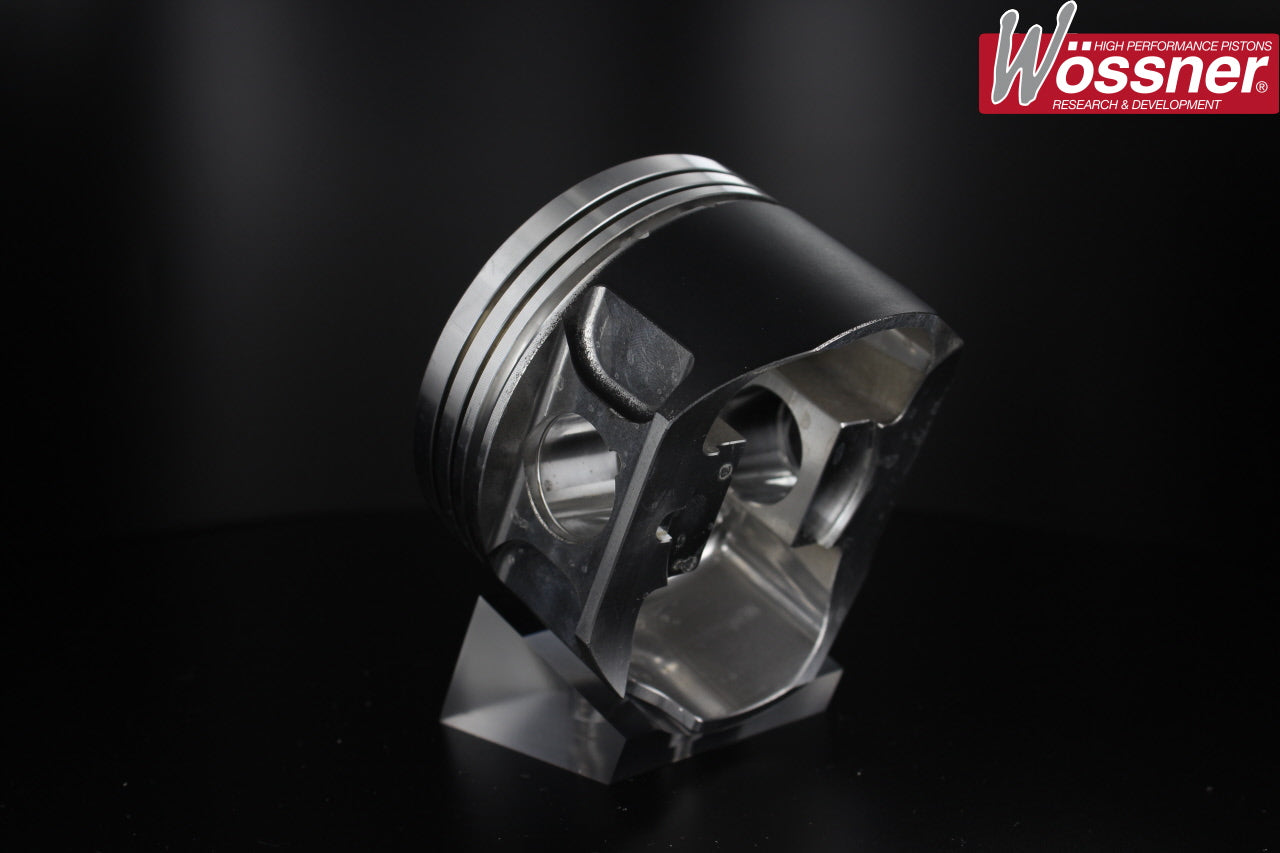

300ZX 3.0 24v V6 Turbo Low Comp Forged Piston Kit.
Manufacturer kit reference: K9061
| Bore Size | 87.5mm , 87mm , 88mm , 89mm |
|---|---|
| Stroke | 83mm |
| Compression Height | 32mm |
| OEM Comp Ratio | 09:01 |
| Number of Rings | 3 |
| OEM Rod Length | 154mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP046 |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9061D200 | 88.92mm | 8.83:1 | 3097cc |
| K9061D050 | 87.42mm | 8.58:1 | 2994cc |
| K9061D100 | 87.92mm | 8.66:1 | 3028cc |
| K9061DA | 86.92mm | 8.5:1 | 2959cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
