£849.43

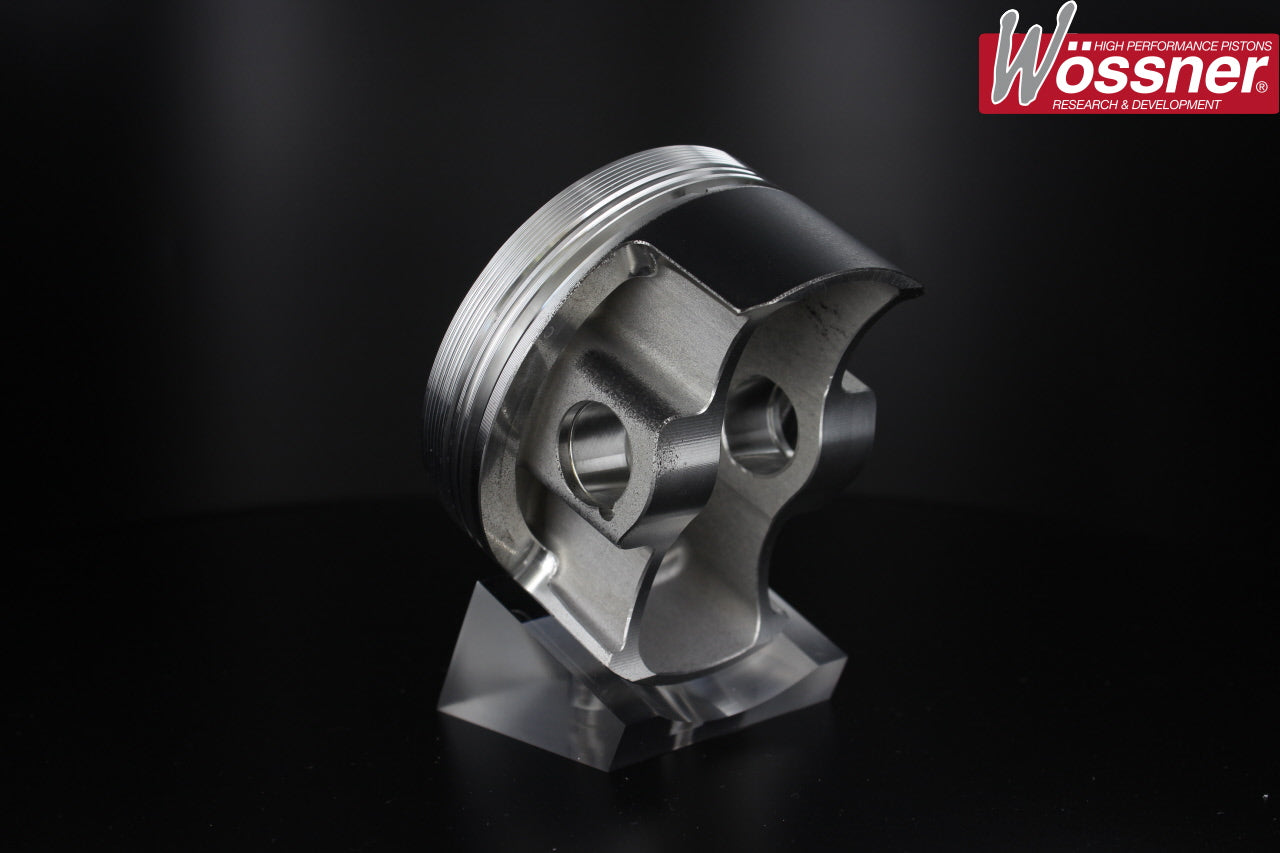

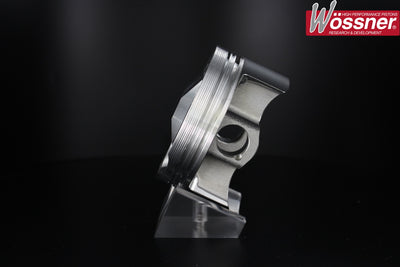

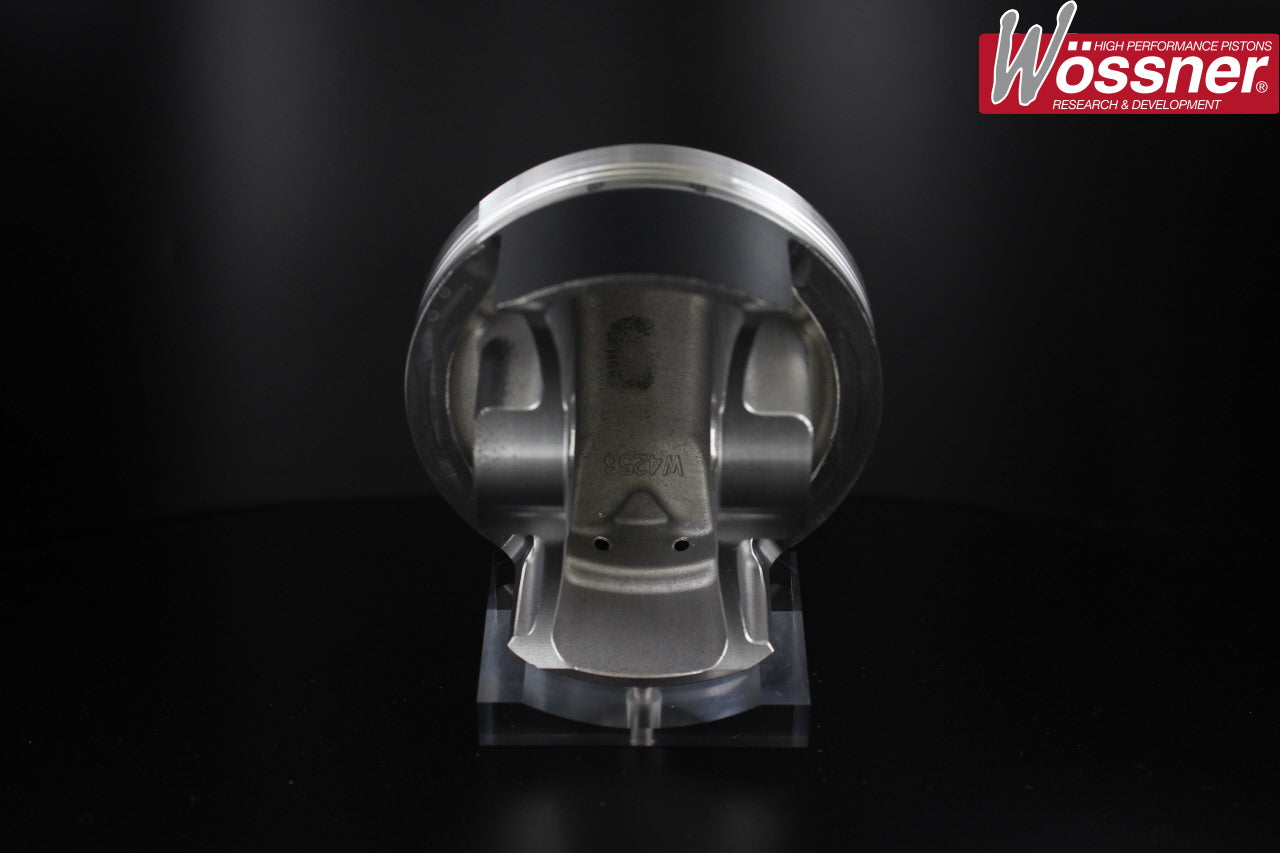

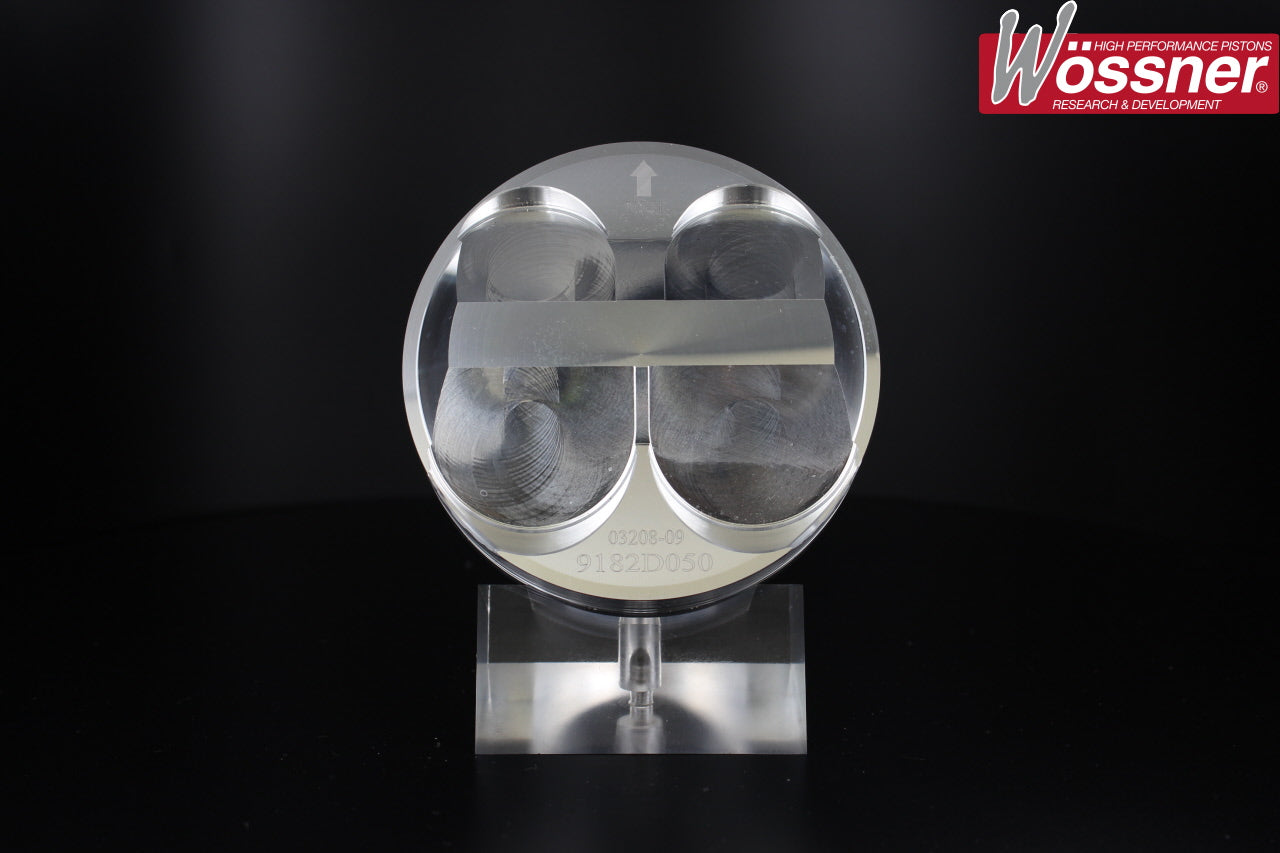

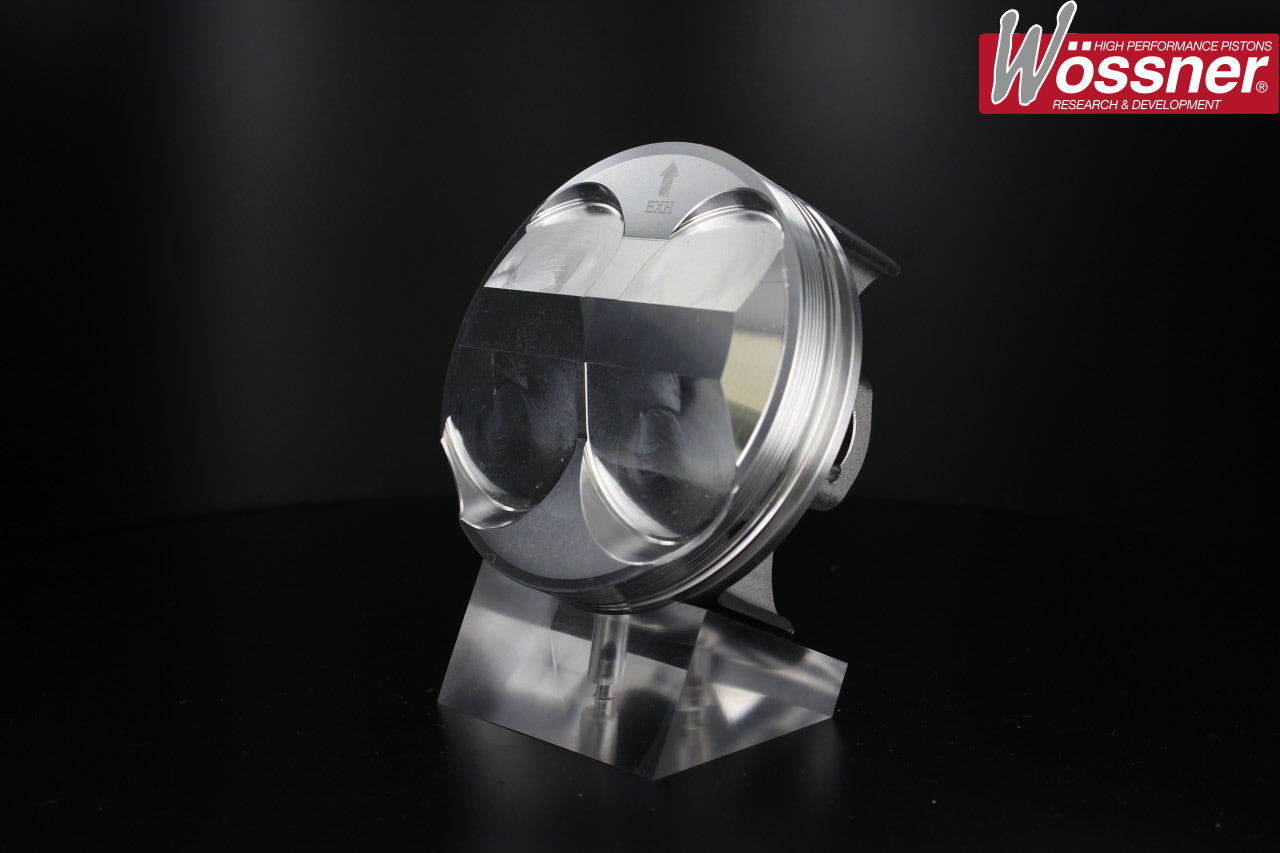

306 GTI-6 2.0 16v Kit Car High Comp Forged Piston.
Manufacturer kit reference: K9182
| Engine Code | XU10J4RS-K |
|---|---|
| YOM From | 1994 |
| YOM To | 2001 |
| Bore Size | 86.5mm , 86mm |
| Stroke | 86mm |
| Compression Height | 28.9mm |
| OEM Comp Ratio | 11.5:1 |
| Number of Rings | 2 |
| OEM Rod Length | 160mm |
| Con Rod Length C/C | 163mm |
| Clip Part Number | CW18 |
| Pin Size | 18mm |
| Pin Part Number | WP053 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9182D050 | 86.42mm | 12.73:1 | 2021cc |
| K9182DA | 85.92mm | 12.6:1 | 1997cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
