£808.99

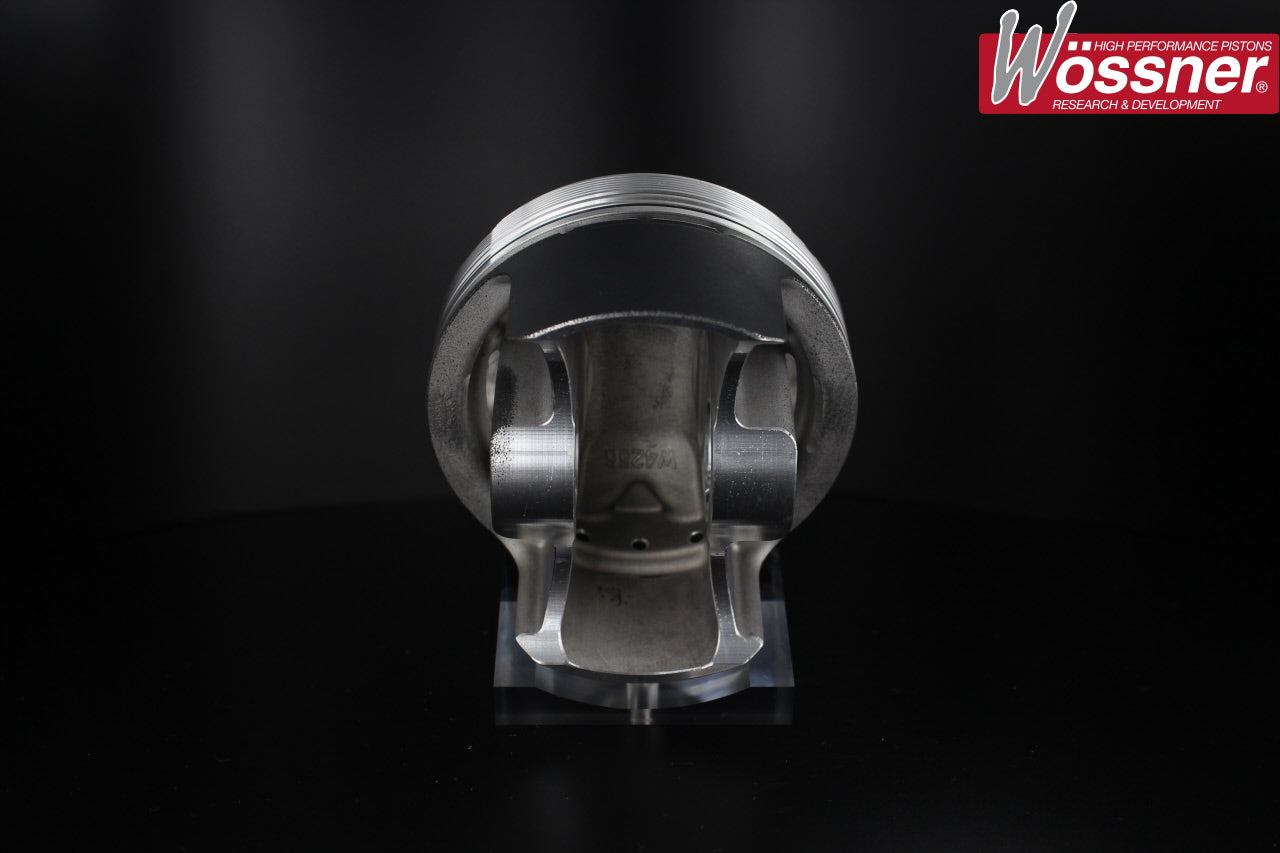

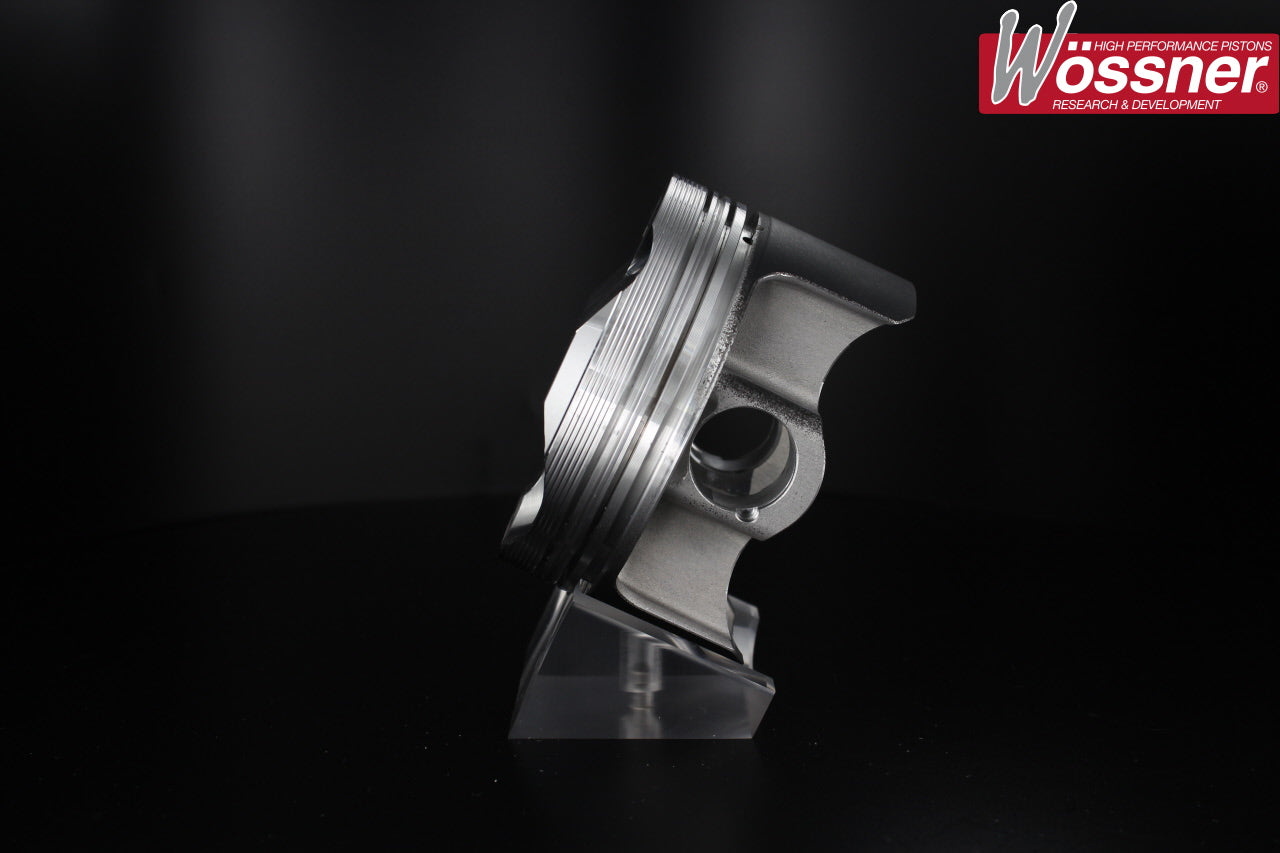

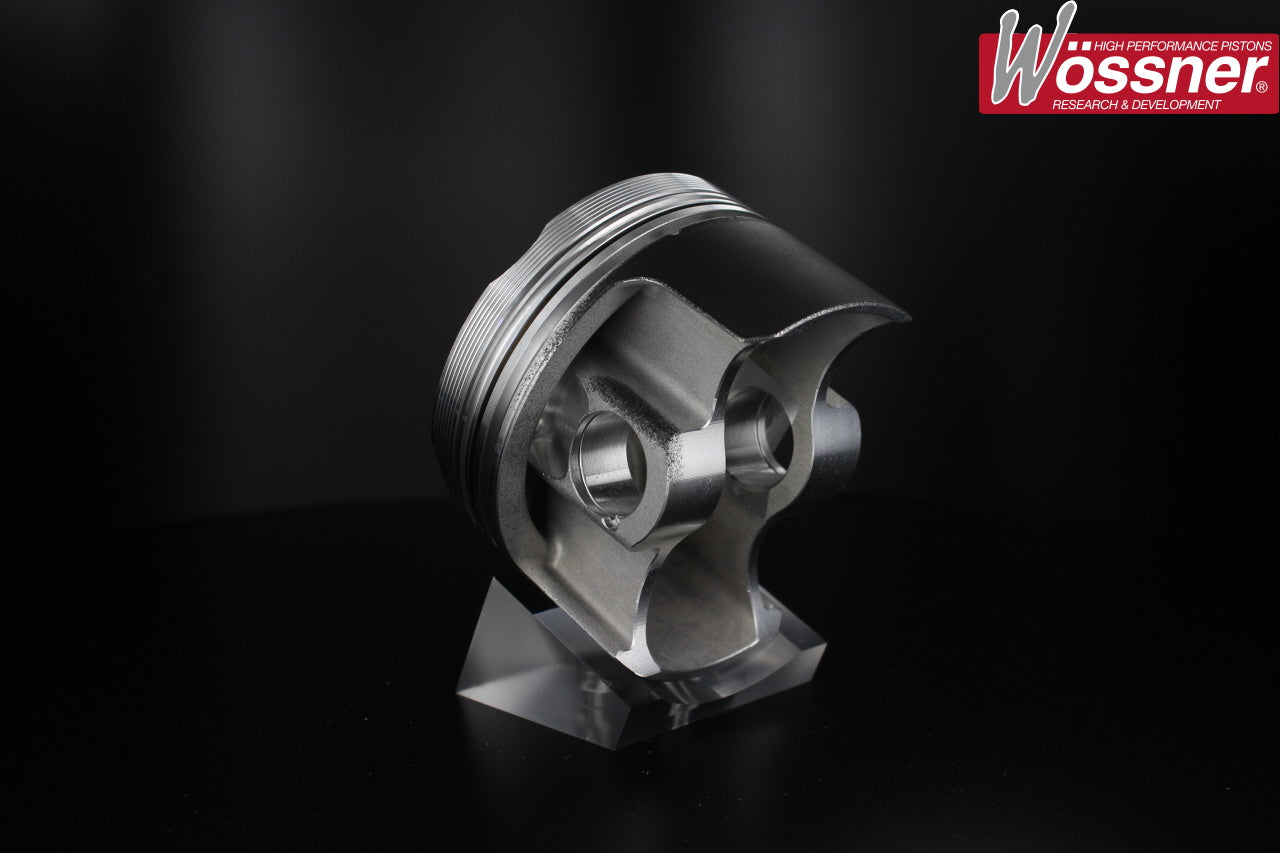

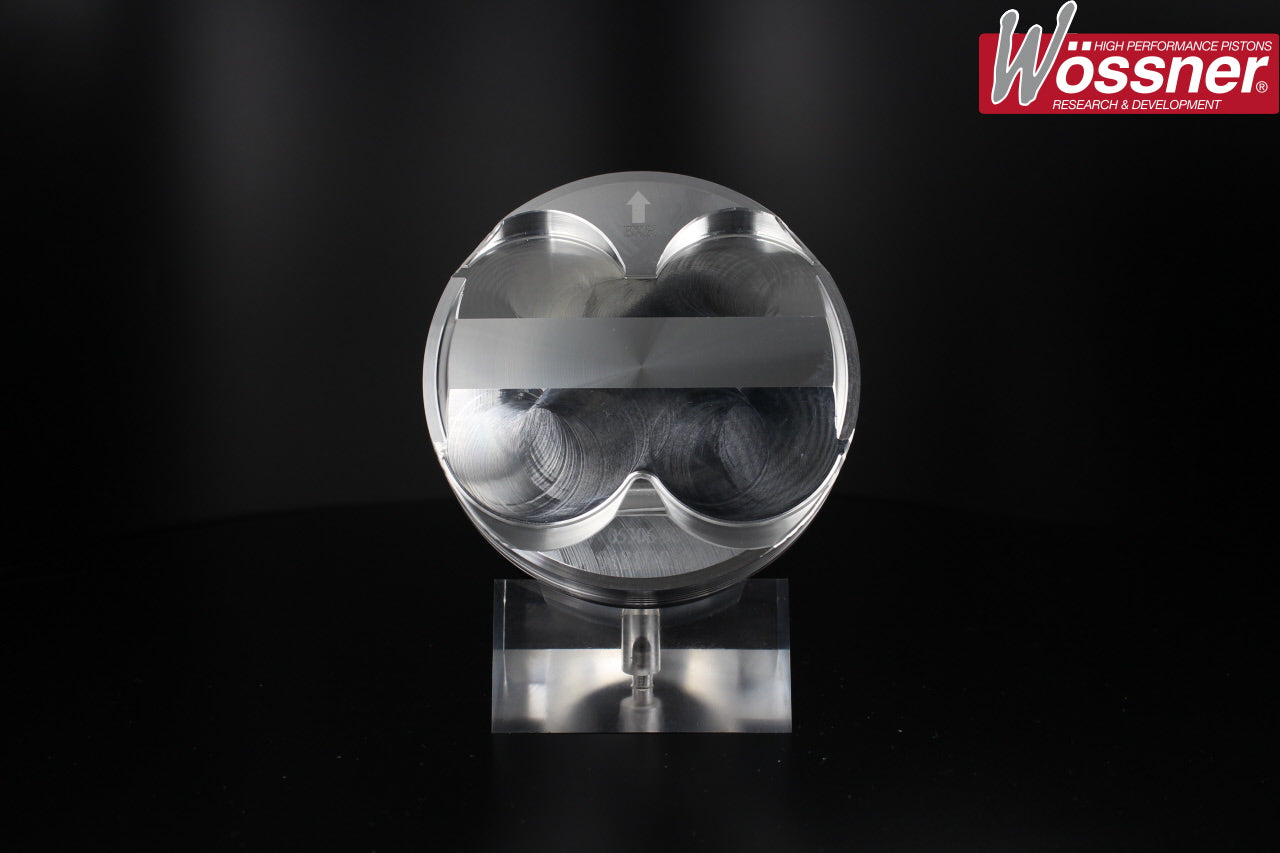

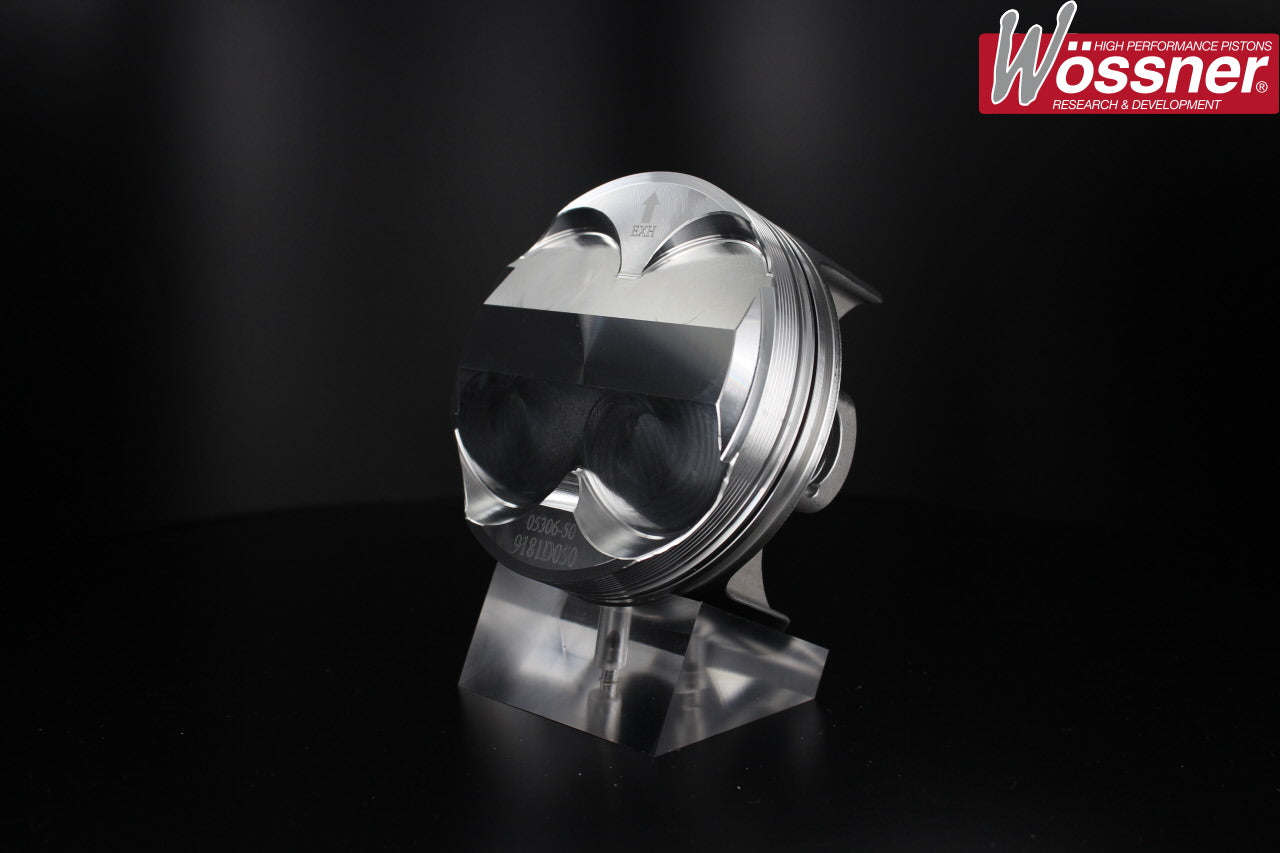

306 GTI-6 & Xsara 2.0 16v High Comp Forged Piston Kit.
Manufacturer kit reference: K9181
| Engine Code | XU10J4RS |
|---|---|
| YOM From | 1994 |
| YOM To | 2002 |
| Bore Size | 86.5mm , 86mm , 87mm |
| Stroke | 86mm |
| Compression Height | 34mm |
| OEM Comp Ratio | 10.8:1 |
| Number of Rings | 3 |
| OEM Rod Length | 158mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP038 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0017 |
| Con Rod Length C/C | 158mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9181D050 | 86.42mm | 12.33:1 | 2021cc |
| K9181D100 | 86.92mm | 12.46:1 | 2044cc |
| K9181DA | 85.92mm | 12.2:1 | 1997cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
