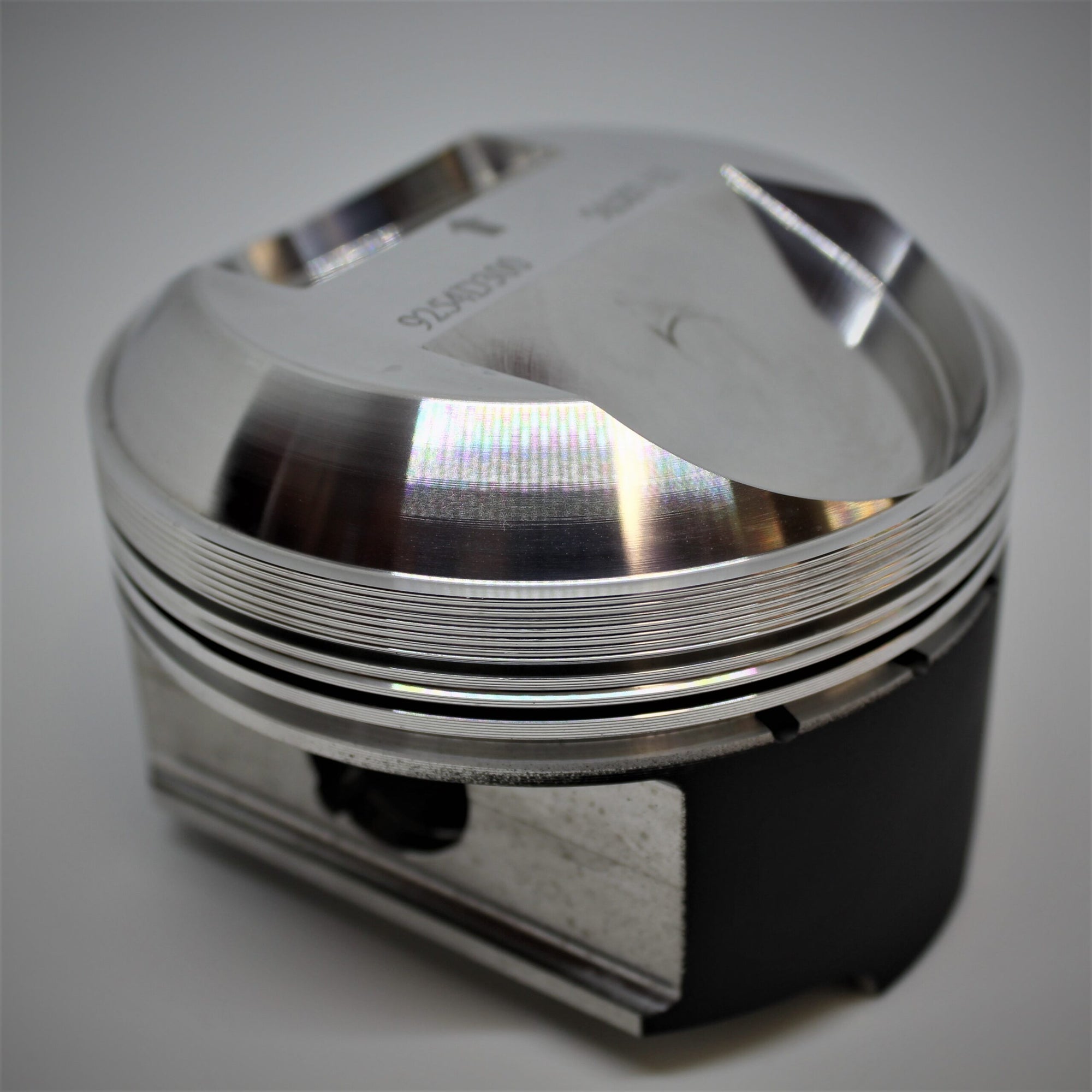

Wossner 911 SC 3.0 12v High Comp Forged Piston Kit (K9254)

Wossner Pistons

Wossner 911 SC 3.0 12v High Comp Forged Piston Kit (K9254)

£1,471.92

911 SC 3.0 12v High Comp Forged Piston Kit.

Manufacturer kit reference: K9254

Technical specifications

Engine Code	930.1
YOM From	1980
YOM To	1983
Bore Size	95mm – K9254DA , 98mm – K9254D300
Stroke	70.4mm
Compression Height	34mm
OEM Comp Ratio	9.8:1
Number of Rings	3
OEM Rod Length	127.75mm
Clip Part Number	6 , C22x1
Pin Size	22mm
Pin Part Number	WP017
Cylinders	6
Valves Per Cylinder	2

Piston specifications by size

Piston reference	Piston diameter	Compression ratio	Capacity
K9254	94.93mm	10.5:1	2994cc
K9254	97.93mm	11:1	3186cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
