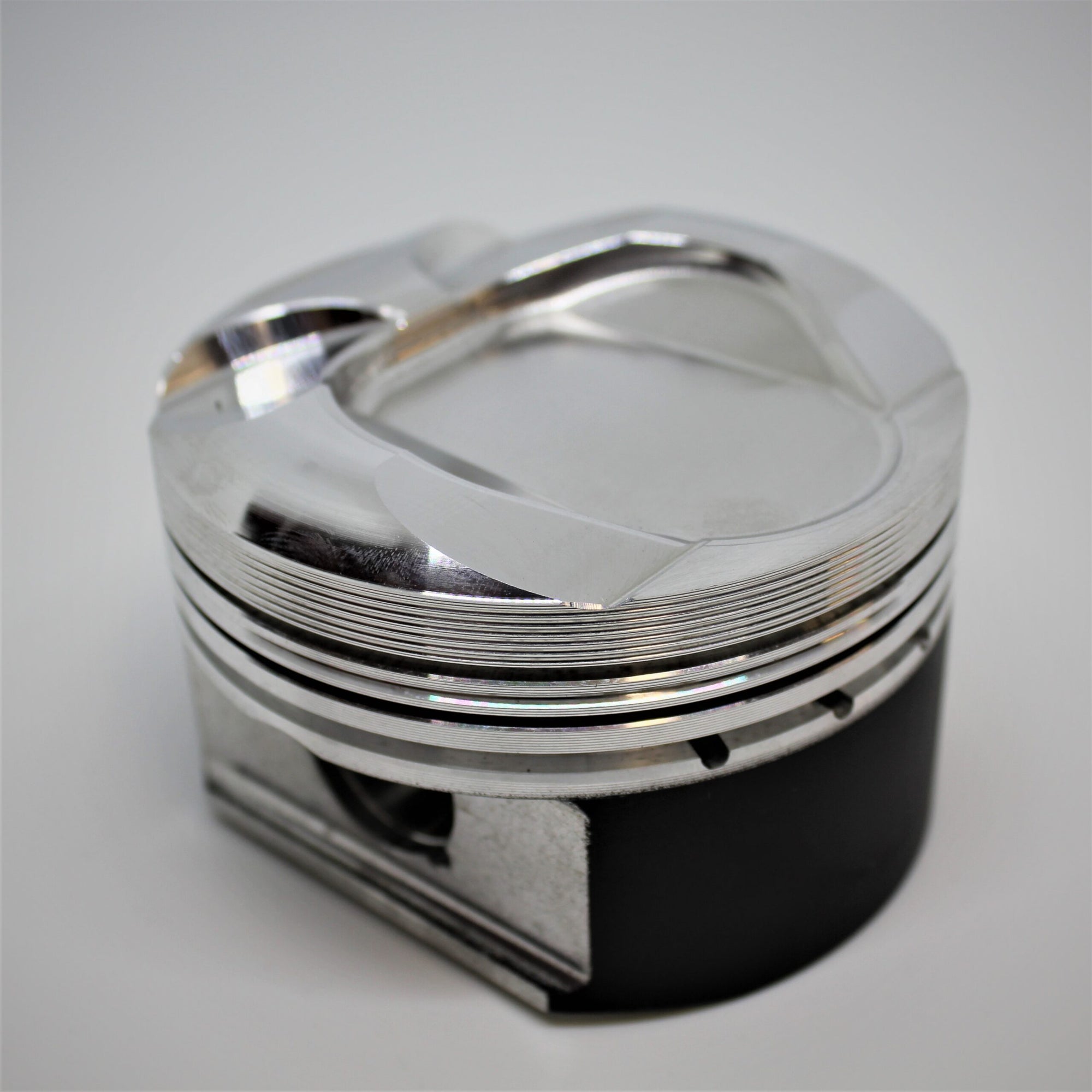

Wossner Civic Type-R K20C1 2.0 16v Turbo Forged Piston Kit (K9535)

Wossner Pistons

Wossner Civic Type-R K20C1 2.0 16v Turbo Forged Piston Kit (K9535)

£849.43

Civic Type-R K20C1 2.0 16v Turbo Forged Piston Kit.

Manufacturer kit reference: K9535

Technical specifications

Engine Code K20C1
YOM From 2015
Bore Size 86.5mm – K9535D050 , 86mm – K9535DA
Stroke 86mm
Compression Height 32mm
OEM Comp Ratio 9.8:1
Number of Rings 3
OEM Rod Length 139mm
Clip Part Number CW22
Pin Size 22mm
Pin Part Number WP136-SP
Cylinders 4
Valves Per Cylinder 4

Piston specifications by size

Piston reference Piston diameter Compression ratio Capacity
K9535D050 86.43mm 9.8:1 2021cc
K9535DA 85.93mm 9.8:1 1998cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
