£849.43

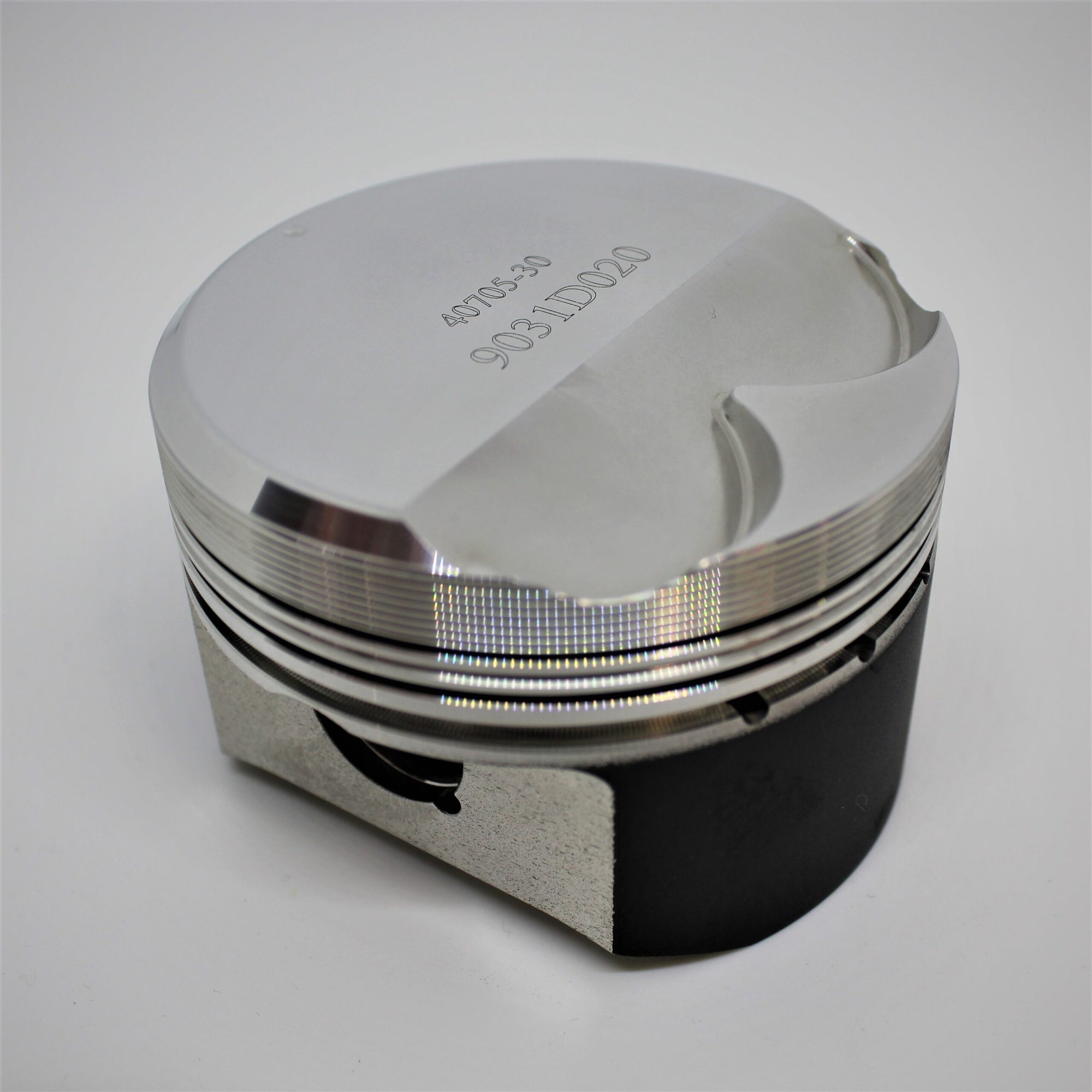

Corrado 2.0 16v (9A) High Comp Forged Piston Kit.
Manufacturer kit reference: K9031
| Engine Code | 9A |
|---|---|
| YOM From | 1991 |
| YOM To | 1995 |
| Bore Size | 82.5mm , 82.7mm , 83.5mm , 83mm , 84mm |
| Stroke | 92.8mm |
| Compression Height | 30.2mm |
| OEM Comp Ratio | 10.7:1 |
| Number of Rings | 3 |
| OEM Rod Length | 144mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP052 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0049 |
| Con Rod Length C/C | 144mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9031D020 | 82.63mm | 12.55:1 | 1993cc |
| K9031D050 | 82.93mm | 12.63:1 | 2008cc |
| K9031D100 | 83.43mm | 12.78:1 | 2032cc |
| K9031D150 | 83.93mm | 12.92:1 | 2032cc |
| K9031DA | 82.43mm | 12.5:1 | 1983cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
