£849.43

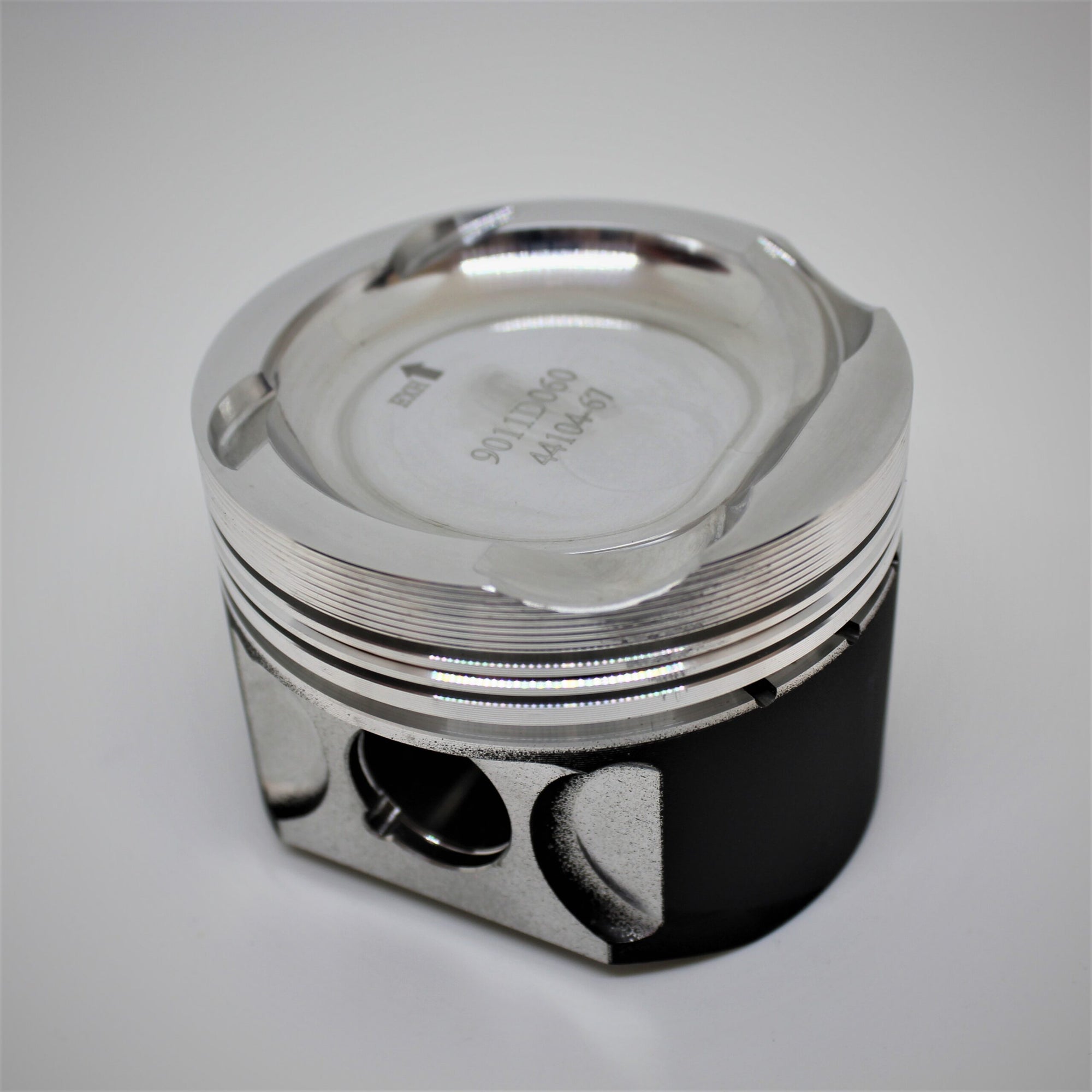

Delta Integrale 2.0 16v Turbo Grp.A Forged Piston kit.
Manufacturer kit reference: K9011
| Engine Code | 836 |
|---|---|
| YOM From | 1994 |
| YOM To | 1999 |
| Bore Size | 84.2mm – K9011D020 , 84.4mm – K9011D040 , 84.6mm – K9011D060 , 84.8mm – K9011D080 , 84mm – K9011DA , 85mm – K9011D100 |
| Stroke | 90mm |
| Compression Height | 39.65mm |
| OEM Comp Ratio | 08:01 |
| Number of Rings | 3 |
| OEM Rod Length | 145mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP046 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0041 |
| Con Rod Length C/C | 145mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9011D020 | 84.1mm | 7.77:1 | 2004cc |
| K9011D040 | 84.3mm | 7.8:1 | 2013cc |
| K9011D060 | 84.5mm | 7.84:1 | 2023cc |
| K9011D080 | 84.7mm | 7.87:1 | 2032cc |
| K9011D100 | 84.9mm | 7.9:1 | 2042cc |
| K9011DA | 83.9mm | 7.74:1 | 1994cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
