£637.08

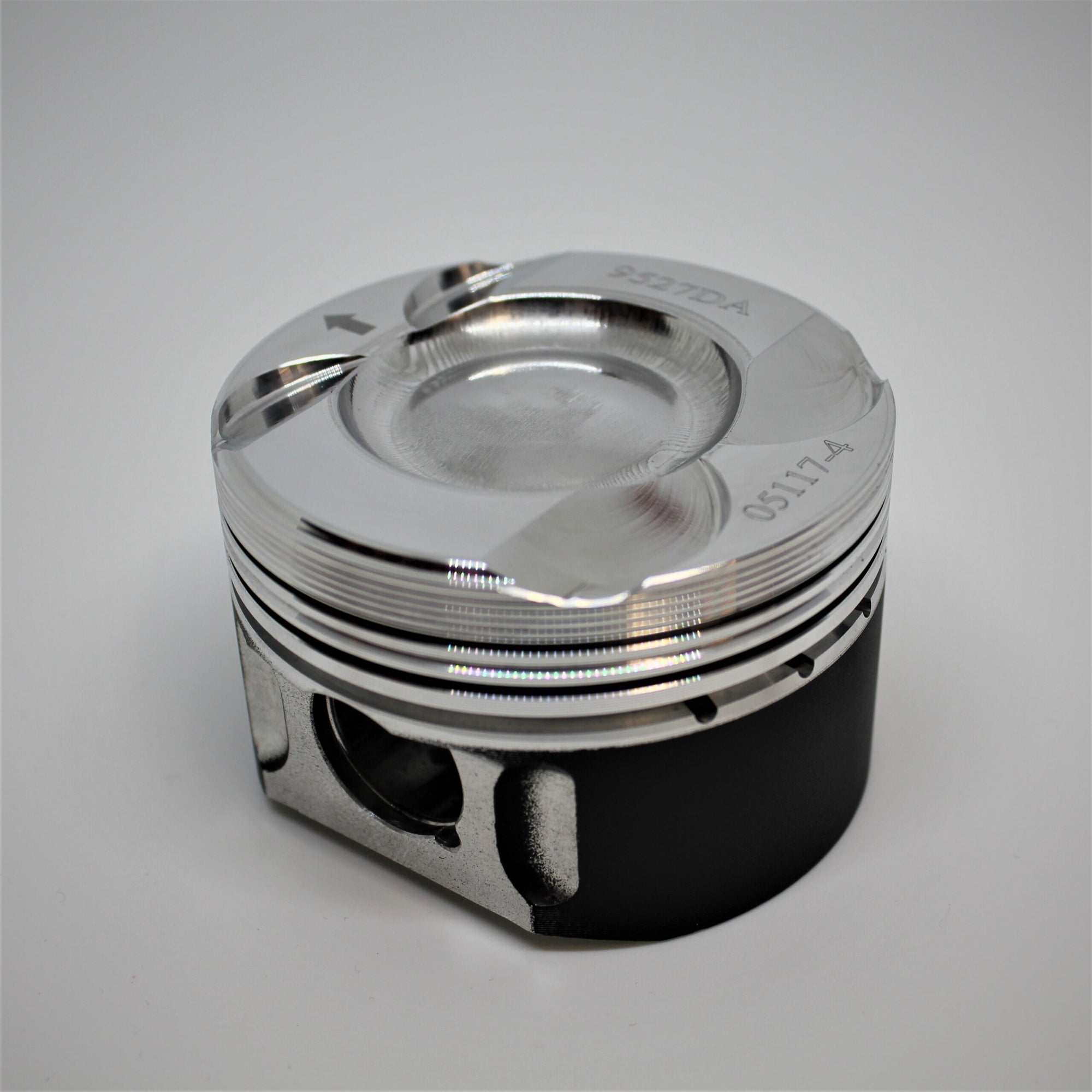

Fiesta 1.0 Eco Boost 12v Turbo 3cyl Forged Piston Kit.
Manufacturer kit reference: K9527
| Engine Code | SFJA / SFJB / SFJC / SFJD / M1JE / M1JH |
|---|---|
| YOM From | 2012 |
| YOM To | 2018 |
| Bore Size | 71.9mm |
| Stroke | 82mm |
| Compression Height | 27.36mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 137mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP065 |
| Cylinders | 3 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0167 |
| Con Rod Length C/C | 137mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9527DA | 71.84mm | 9.5:1 | 9986cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
