£705.60

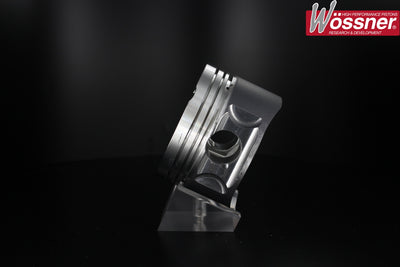

Integra Type-R B18C5 & C6 9:1 Comp Forged Piston Kit.
Manufacturer kit reference: K9210
| Engine Code | B18C5 / C6 |
|---|---|
| YOM From | 1997 |
| YOM To | 2000 |
| Bore Size | 81.5mm – K9210D050 , 81mm – K9210DA , 82mm – K9210D150 , 83mm – K9210D200 , 84.5mm – K9210D350 , 84mm – K9210D300 , 85mm – K9210D400 |
| Stroke | 87mm |
| Compression Height | 30mm |
| OEM Comp Ratio | 10.6:1 |
| Number of Rings | 3 |
| OEM Rod Length | 138mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP092 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9210D050 | 81.43mm | 9:1 | 1815cc |
| K9210D150 | 82.43mm | 9:1 | 1837cc |
| K9210D200 | 82.93mm | 9:1 | 1882cc |
| K9210D300 | 83.93mm | 9:1 | 1928cc |
| K9210D350 | 84.43mm | 9:1 | 1951cc |
| K9210D400 | 84.93mm | 9:1 | 1974cc |
| K9210DA | 80.93mm | 9:1 | 1792cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
