£1,086.90

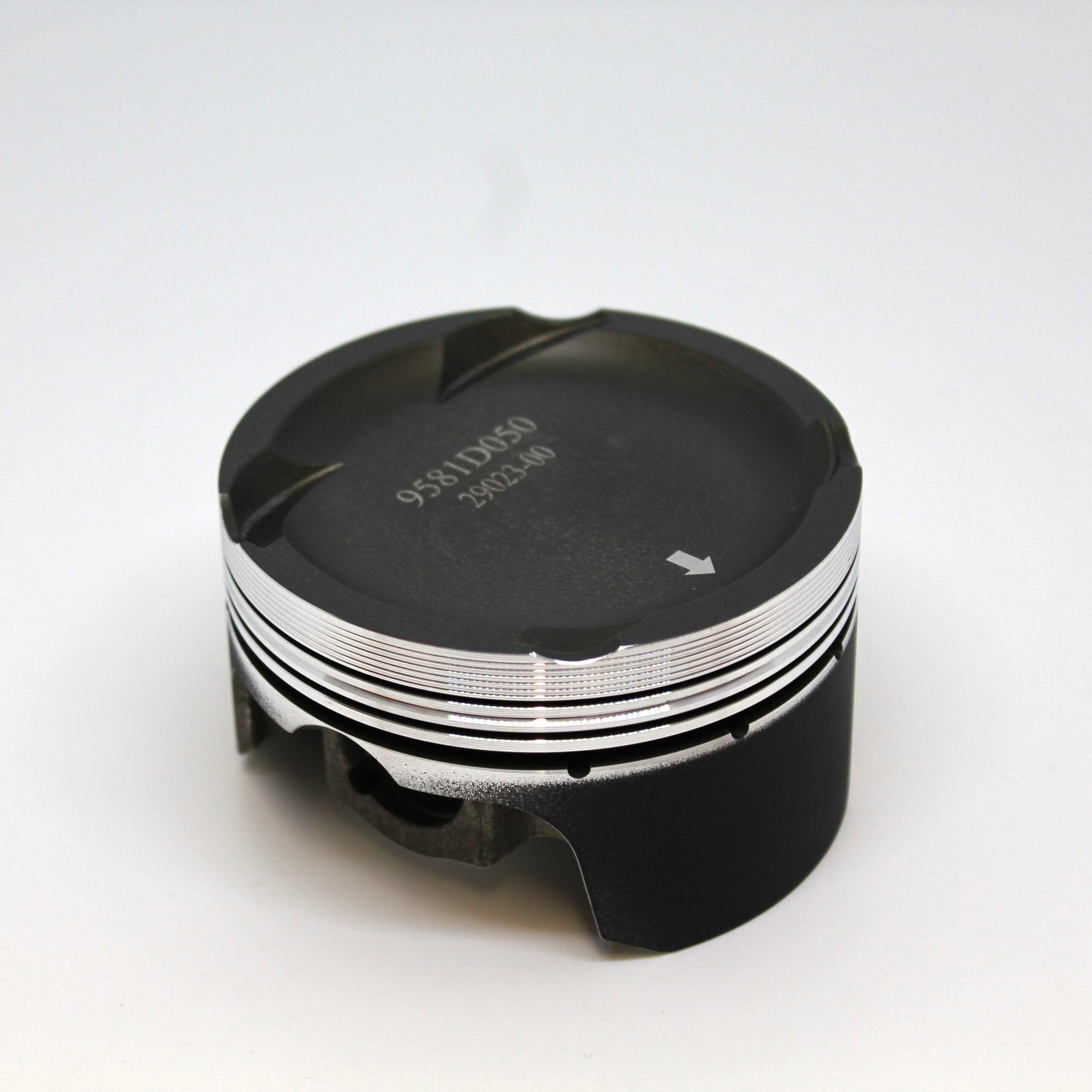

K24 9.0:1 Comp Forged Piston Kit Hard Anodised.
Manufacturer kit reference: K9581
| Engine Code | K24 |
|---|---|
| YOM From | 2001 |
| YOM To | 2007 |
| Bore Size | 87.5mm – K9581D050 , 87mm – K9581DA , 88mm – K9581D100 |
| Stroke | 99mm |
| Compression Height | 30mm |
| OEM Comp Ratio | 9.6:1 |
| Number of Rings | 3 |
| OEM Rod Length | 152mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP136-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9581D100 | 87.93mm | 9.0:1 | 2408cc |
| K9581D050 | 87.43mm | 9.0:1 | 2381cc |
| K9581DA | 86.93mm | 9.0:1 | 2354cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
