£705.60

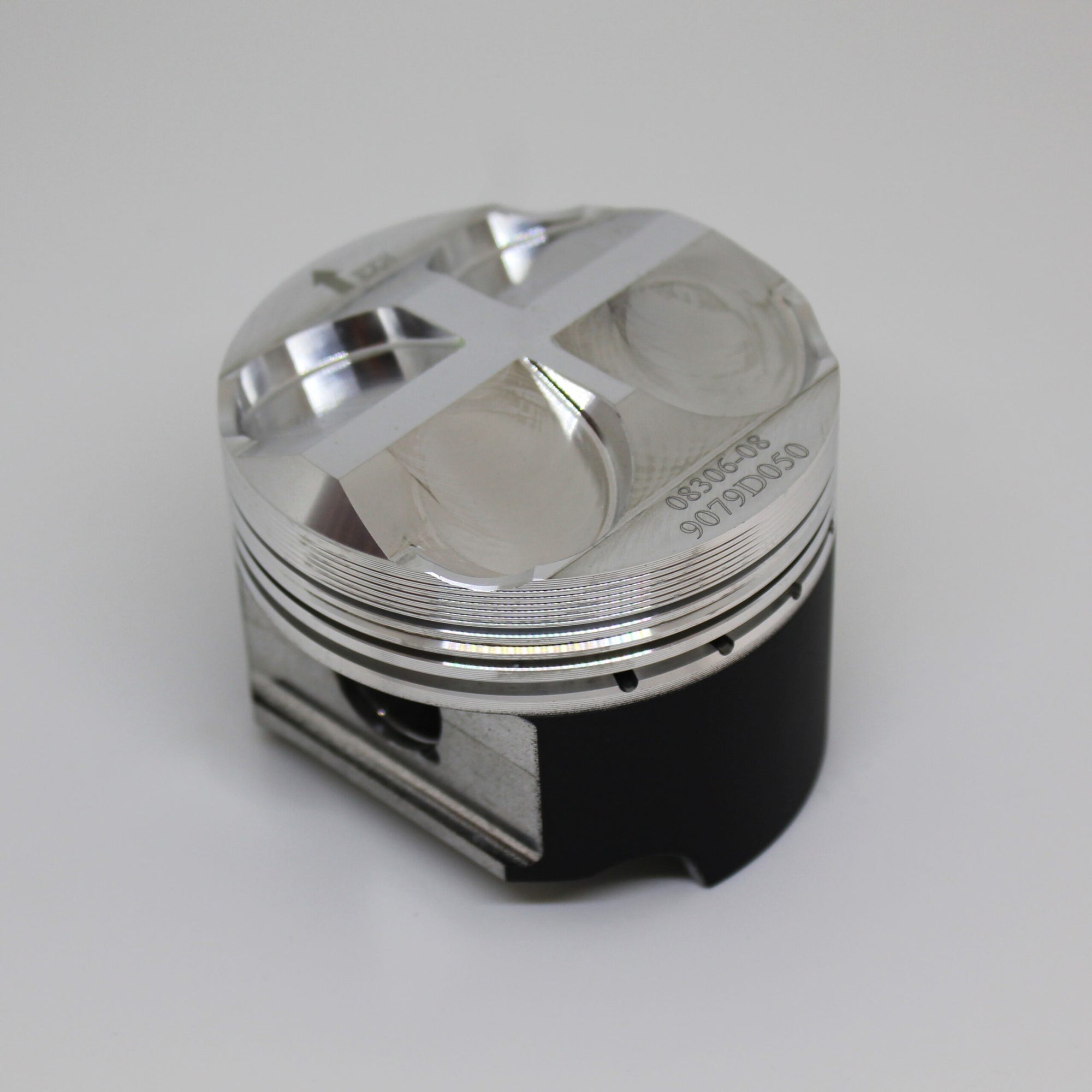

Miata / MX-5 1.6v 16v High Comp Forged Piston Kit.
Manufacturer kit reference: 9079
| Engine Code | B6D |
|---|---|
| YOM From | 1998 |
| YOM To | 2005 |
| Bore Size | 78.5mm , 78mm , 79.5mm , 79mm |
| Stroke | 83.6mm |
| Compression Height | 32.4mm |
| OEM Comp Ratio | 8.6:1 |
| Number of Rings | 3 |
| OEM Rod Length | 133mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP038 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9079D050 | 77.93mm | 11:1 | 1597cc |
| K9079D100 | 78.93mm | 11.12:1 | 1638cc |
| K9079D150 | 79.43mm | 11.26:1 | 1659cc |
| K9079DA | 77.93mm | 11:1 | 1597cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
