£1,109.60

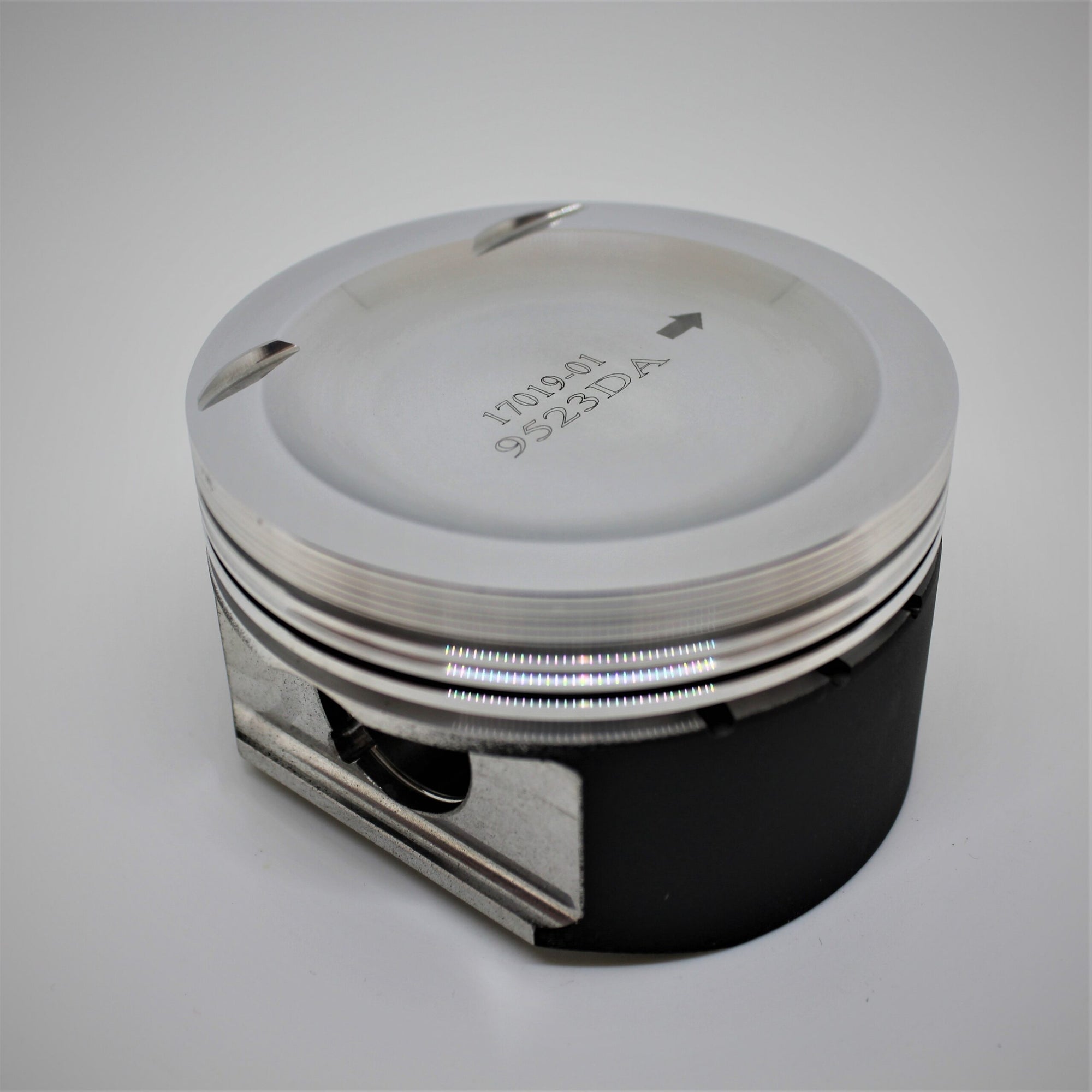

RS3 & TTRS 2.5L 20v Turbo 5cyl TFSI Forged Piston Kit.
Manufacturer kit reference: K9523
| Engine Code | DAZA |
|---|---|
| YOM From | 2016 |
| YOM To | 2019 |
| Bore Size | 82.5mm – K9523DA , 83mm – K9523D050 |
| Stroke | 92.8mm |
| Compression Height | 29.5mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 144mm |
| Clip Part Number | CW23 |
| Pin Size | 23mm |
| Pin Part Number | WP082 |
| Cylinders | 5 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0331-5 |
| Con Rod Length C/C | 144mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9523D050 | 82.93mm | 9.06:1 | 2510cc |
| K9523DA | 82.43mm | 9:1 | 2479cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
