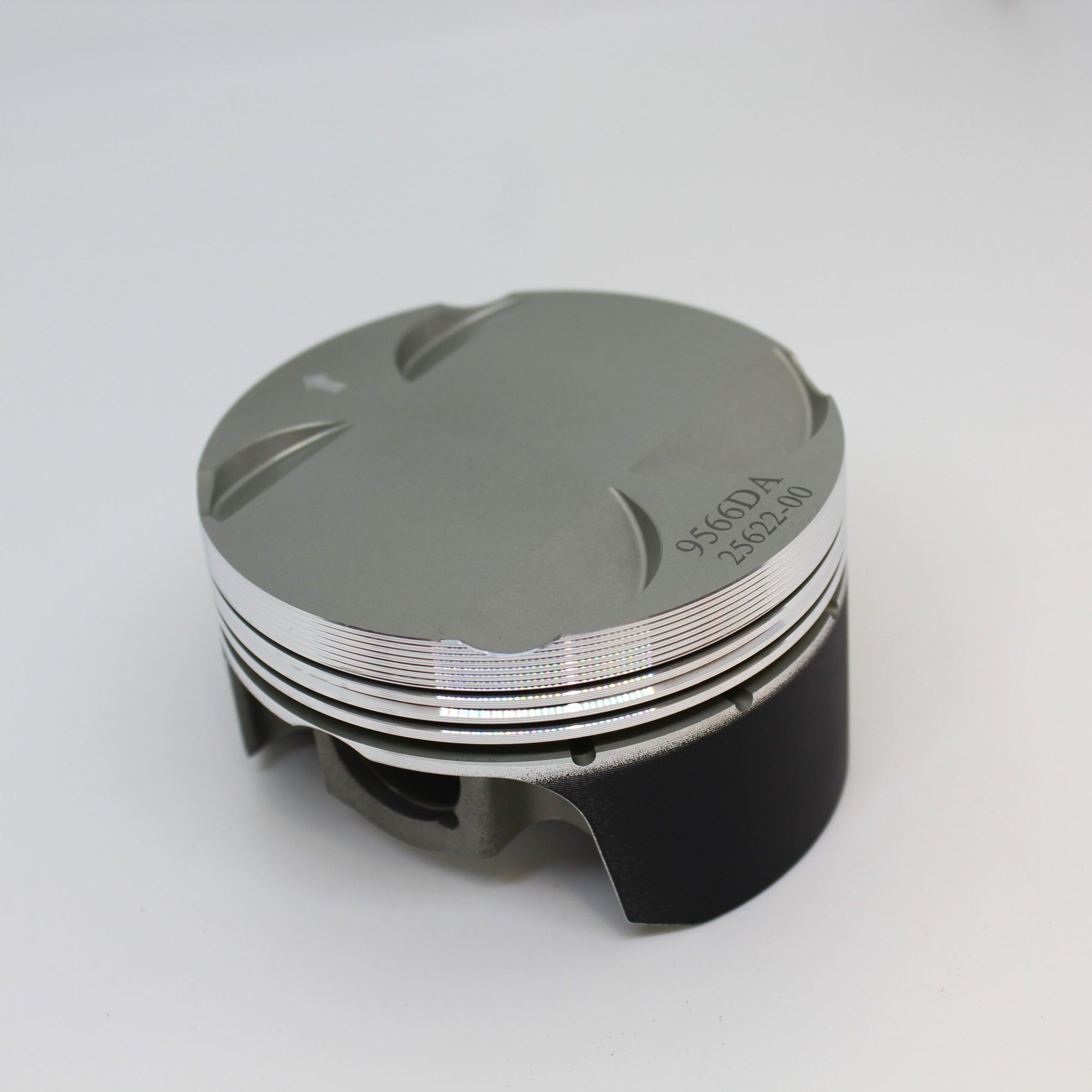

RSX Type-S & Civic Type-R K20 9.5:1 Comp Forged Piston Kit Hard Anodised.
Manufacturer kit reference: K9566
| Engine Code | K20A2 / A3 , K20Z4 |
|---|---|
| YOM From | 2001 |
| YOM To | 2007 |
| Bore Size | 86.5mm – K9566D050 , 86mm – K9566DA , 87.5mm – K9566D150 , 87mm – K9566D100 , 88mm – K9566D200 , 89mm – K9566D300 |
| Stroke | 86mm |
| Compression Height | 30mm |
| OEM Comp Ratio | 11:01 |
| Number of Rings | 3 |
| OEM Rod Length | 139mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP136-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9566D300 | 88.93mm | 10.0:1 | 2140cc |
| K9566D200 | 87.93mm | 9.9:1 | 2092cc |
| K9566D150 | 87.43mm | 9.8:1 | 2068cc |
| K9566D100 | 86.93mm | 9.7:1 | 2044cc |
| K9566D050 | 86.43mm | 9.6:1 | 1819cc |
| K9566DA | 85.93mm | 9.5:1 | 1998cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
