£1,551.46

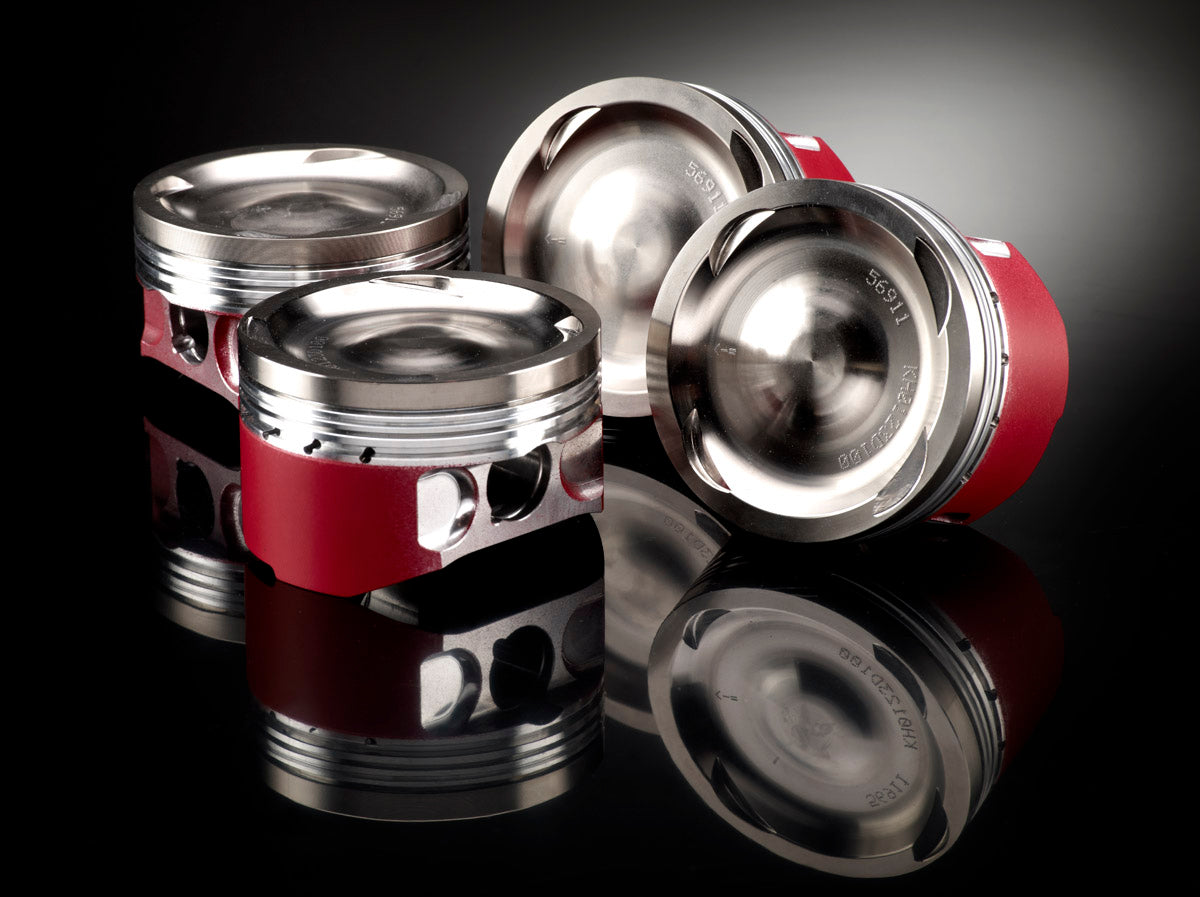

RSX Type-S & Civic Type-R K20 High Comp Forged Piston (Hard Anodised) & H-Beam Steel Con Rod Package.
Manufacturer kit reference: K9567/G0362
| Engine Code | K20A2 / A3 /K20Z4 |
|---|---|
| YOM From | 2002 |
| YOM To | current |
| Bore Size | 86.5mm – K9567D050 , 86mm – K9567DA , 87mm – K9567D100 , 88mm – K9567D200 , 89mm – K9567D300 , 90mm – K9567D400 |
| Stroke | 86mm |
| Compression Height | 30mm |
| OEM Comp Ratio | 11.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 139mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP017-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Engine Code | K20A2 / A3 /K20Z4 |
|---|---|
| Con Rod Length C/C | 139mm |
| Con Rod Big End Dia | 51mm |
| Con Rod Big End Width | 19.80mm |
| Con Rod Small End Dia | 22mm |
| Con Rod Small End Width | 19.8mm |
| Con Rod Bolt | 3/8" |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9567D050 | 86.43mm | 11.1:1 | 2021cc |
| K9567D100 | 86.93mm | 11.2:1 | 2044cc |
| K9567D400 | 89.93mm | 11.5:1 | 2188cc |
| K9567D200 | 87.93mm | 11.3:1 | 2091cc |
| K9088D300-1 | 88.93mm | 11.4:1 | 2139cc |

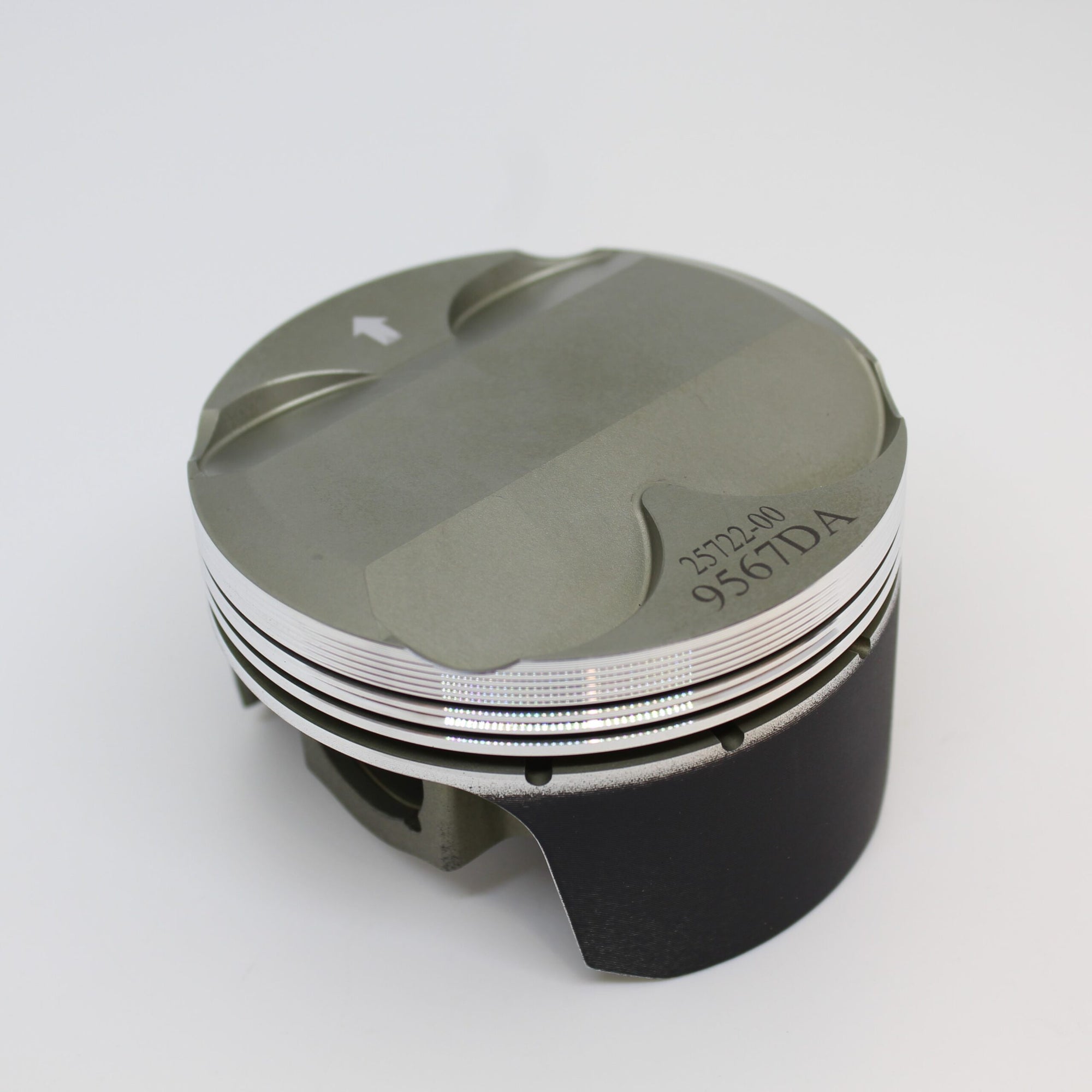

| K9567DA | 85.93mm | 11:1 | 1997cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
