£705.60

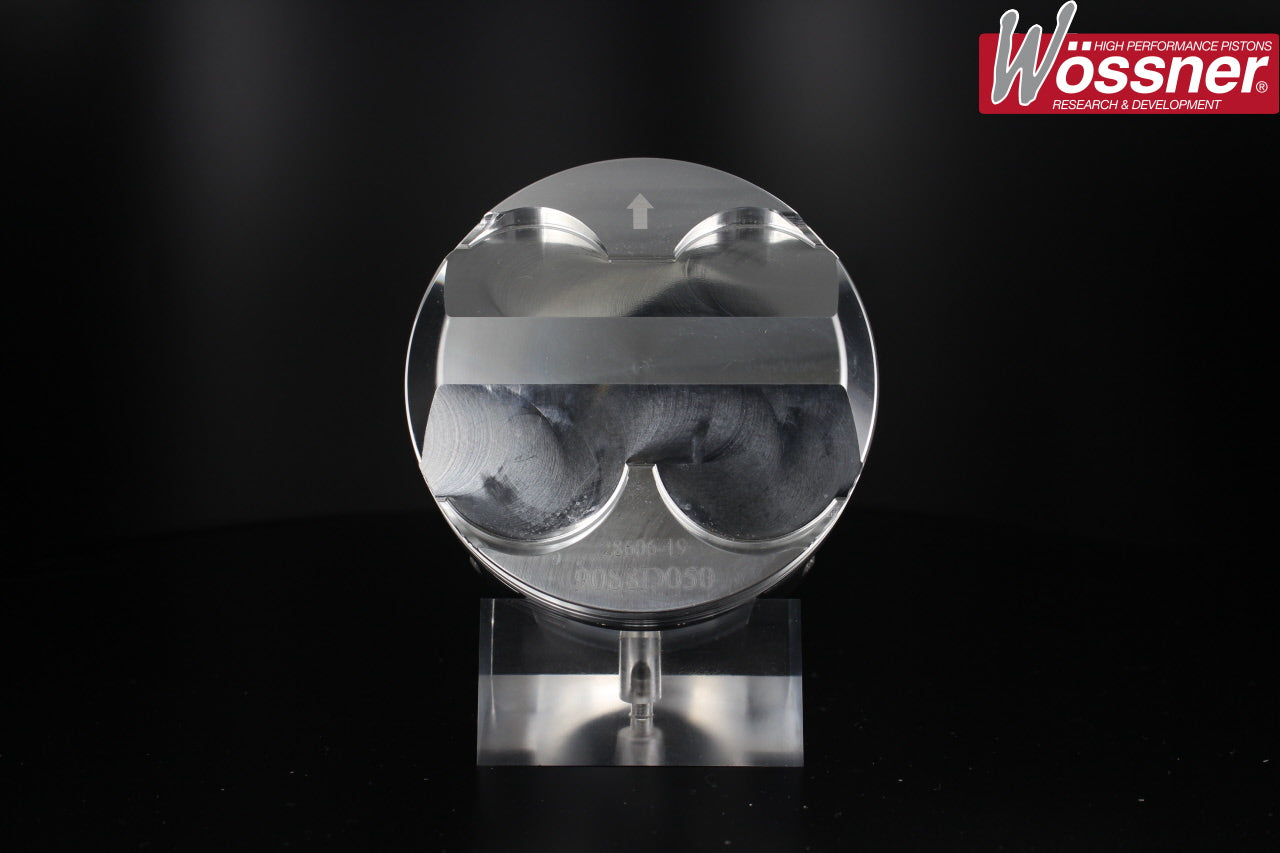

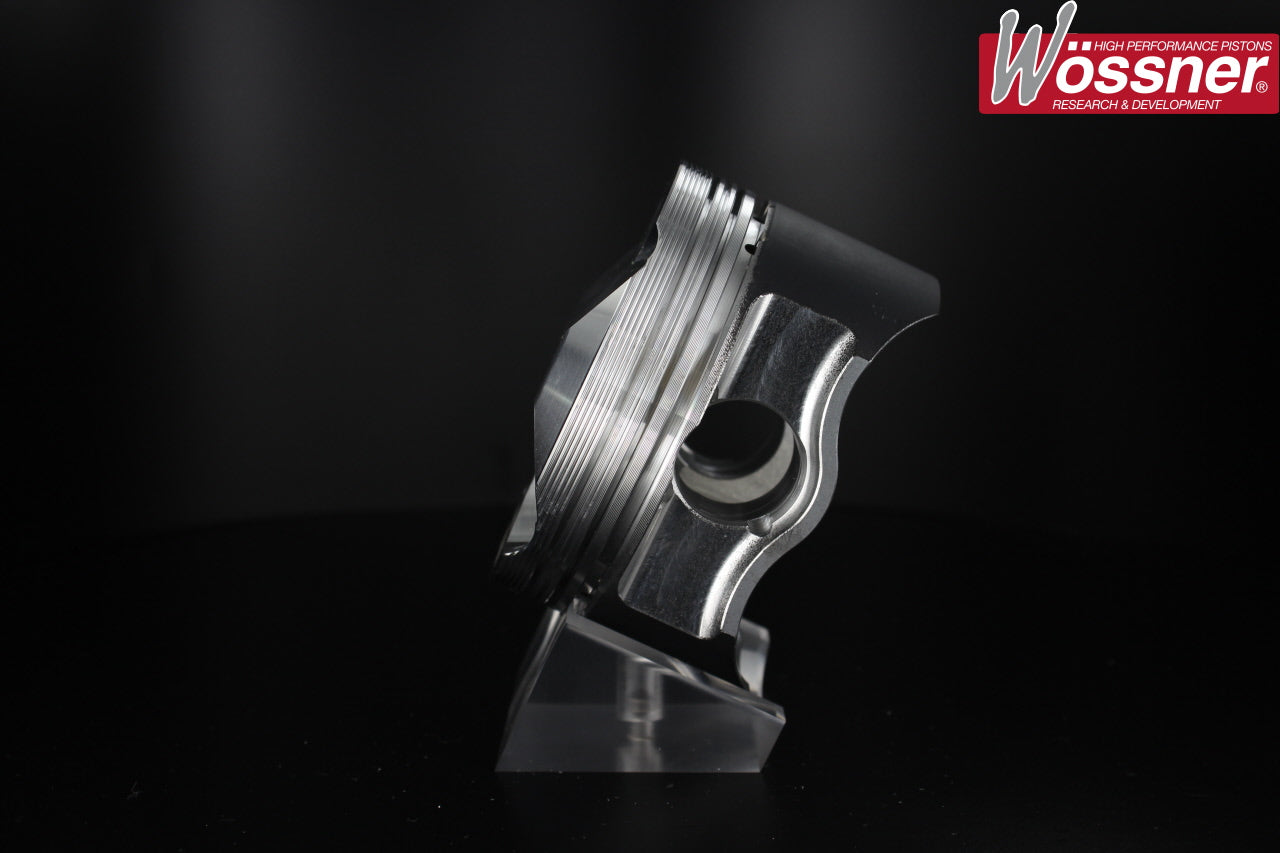

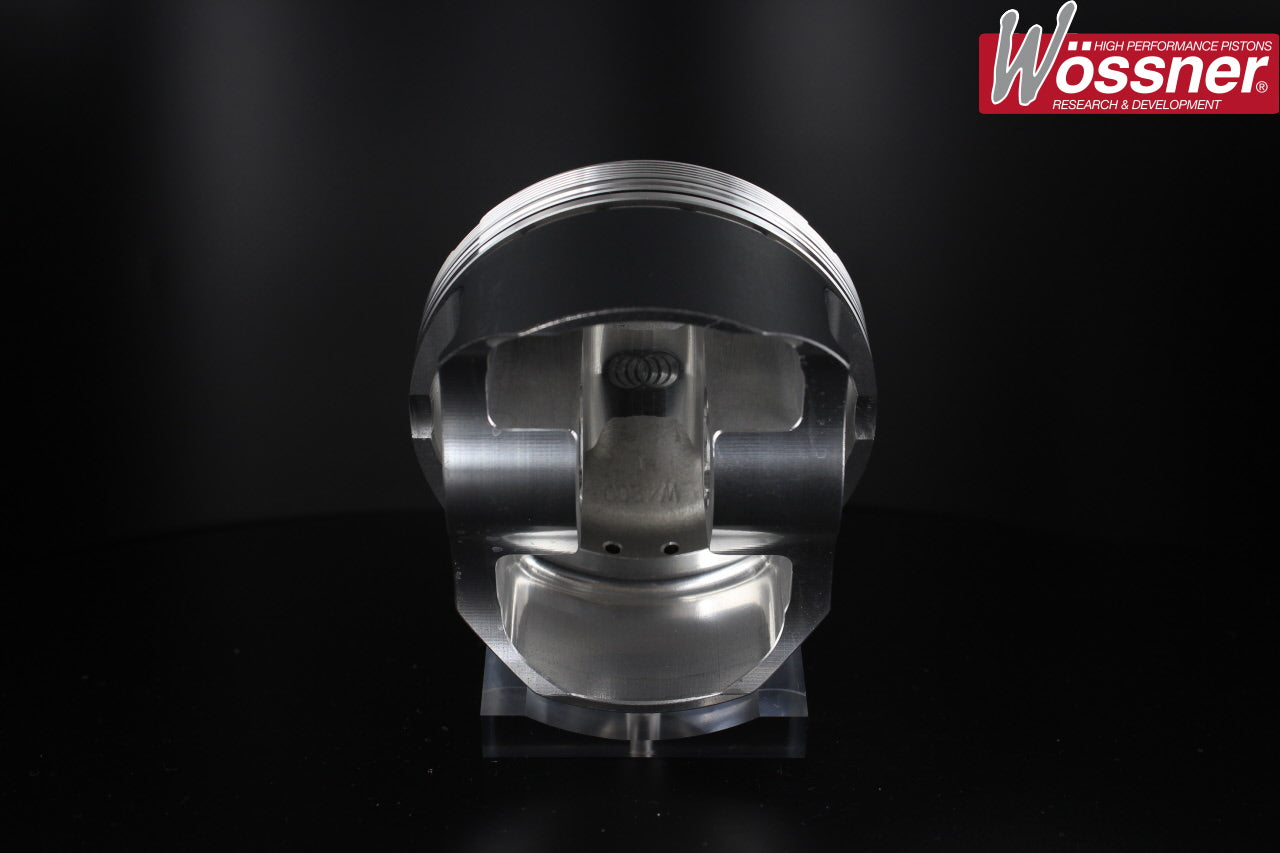

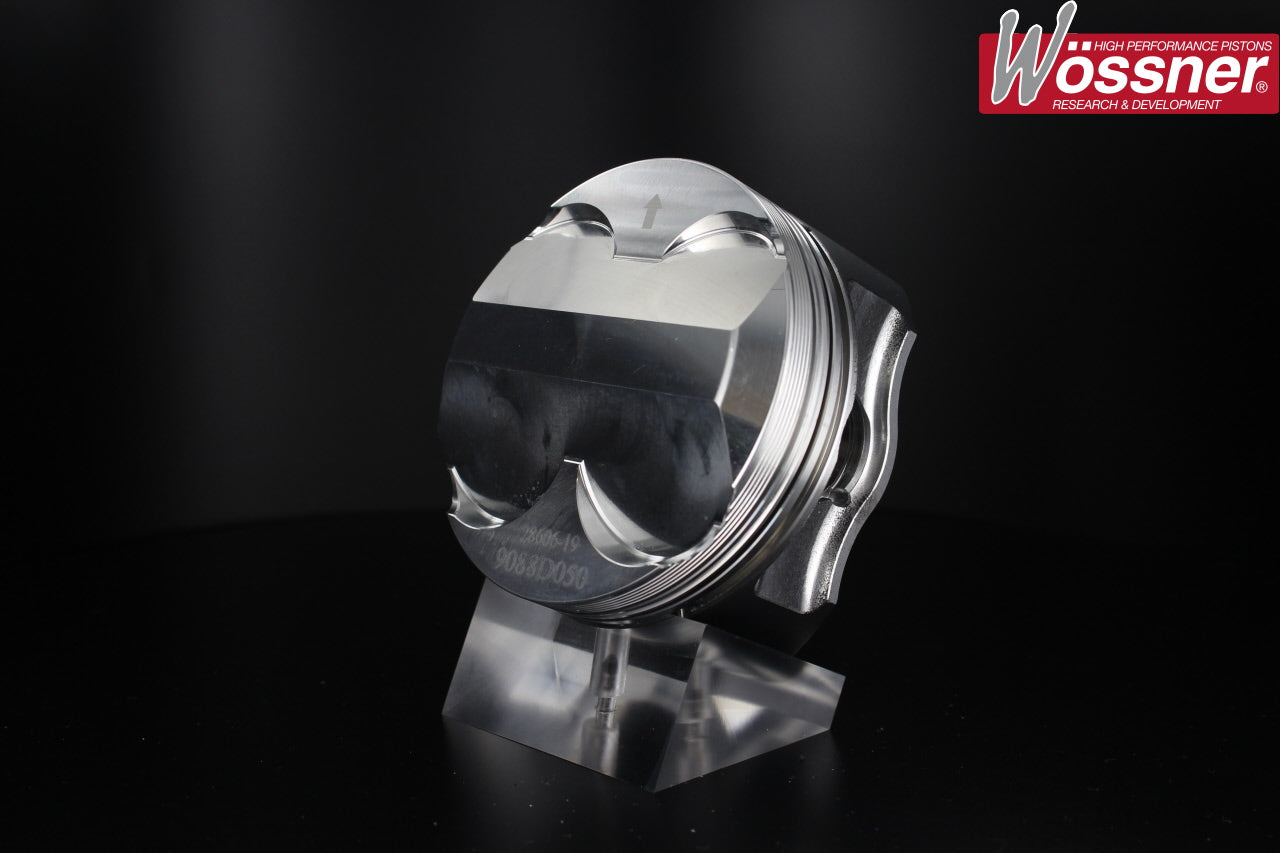

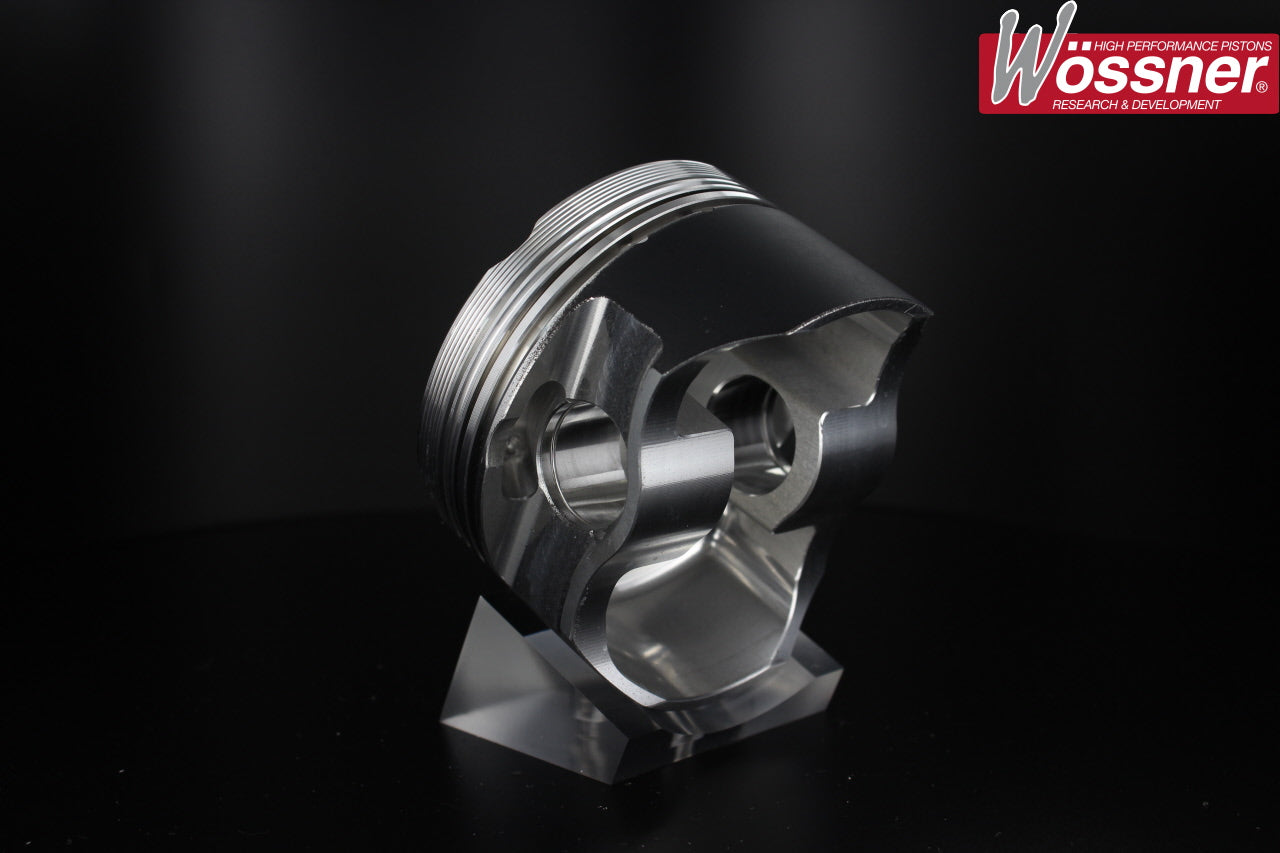

RSX Type-S & Civic Type-R K20A2/A3 & K20Z4 High Comp Forged Piston Kit.
Manufacturer kit reference: K9088
| Engine Code | K20A2 / A3 /K20Z4 |
|---|---|
| YOM From | 2002 |
| YOM To | current |
| Bore Size | 86.5mm – K9088D050 , 86mm – K9088DA , 87.5mm – K9088D150 , 87mm – K9088D100 , 88mm – K9088D200 , 89mm – K9088D300 |
| Stroke | 86mm |
| Compression Height | 30mm |
| OEM Comp Ratio | 11.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 139mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP017 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9088DA | 85.93mm | 12:1 | 1997cc |
| K9088D050 | 86.43mm | 12.13:1 | 2021cc |
| K9088D100 | 86.93mm | 12.26:1 | 2044cc |
| K9088D150 | 87.43mm | 12.26:1 | 2068cc |
| K9088D200 | 87.93mm | 12.26:1 | 2091cc |
| K9088D300 | 88.93mm | 12.26:1 | 2139cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
